0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House

Prefab House Light Steel Framing Machine

C140 Light Steel Framing Machine

C200 Light Steel Framing Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Nomor model:

c89

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Ukuran Mesin:

Tergantung pada profil

Berat mesin:

2500kg

Kecepatan Bentuk:

15-20m/mnt

Bahan Rol:

45#baja

Jaminan:

1 tahun

Ketebalan:

1.5mm

Motor hidrolik:

5.5kw

Pembentukan Stasiun:

Metode pemotongan:

Pemotongan hidrolik

Menyoroti:

Prefab House Light Steel Framing Machine

C140 Light Steel Framing Machine

C200 Light Steel Framing Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1set

Harga

40000-75000 usd

Kemasan rincian

Telanjang dengan Film Plastik.

Waktu pengiriman

45 hari dunia

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine for Prefab House

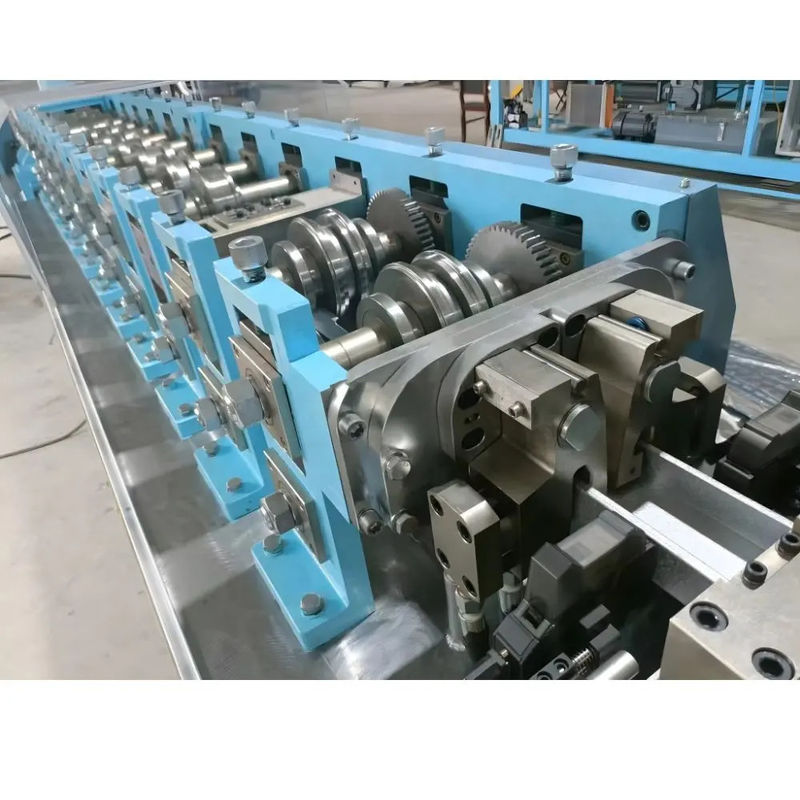

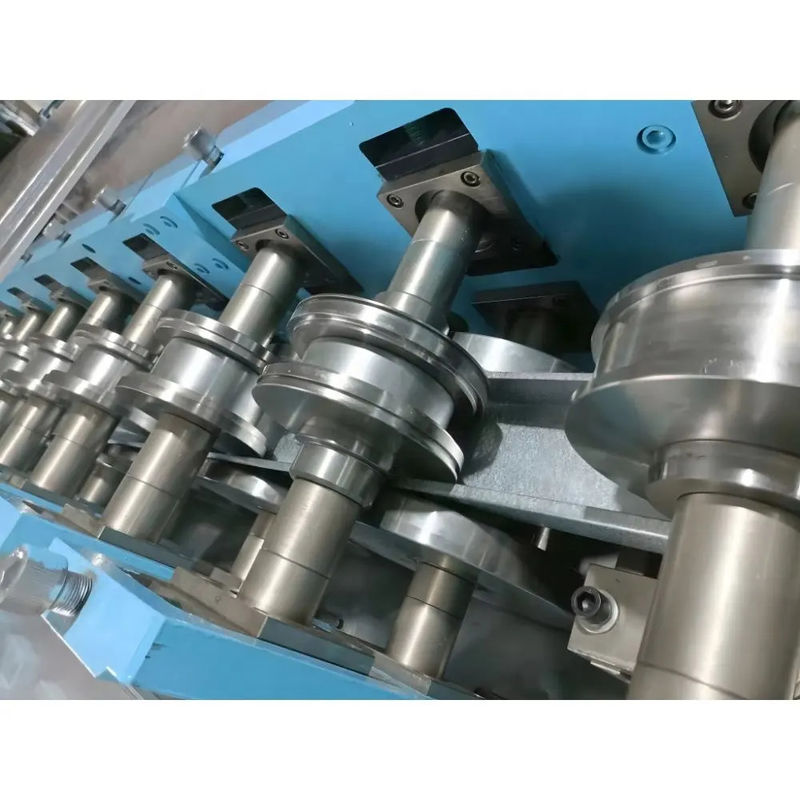

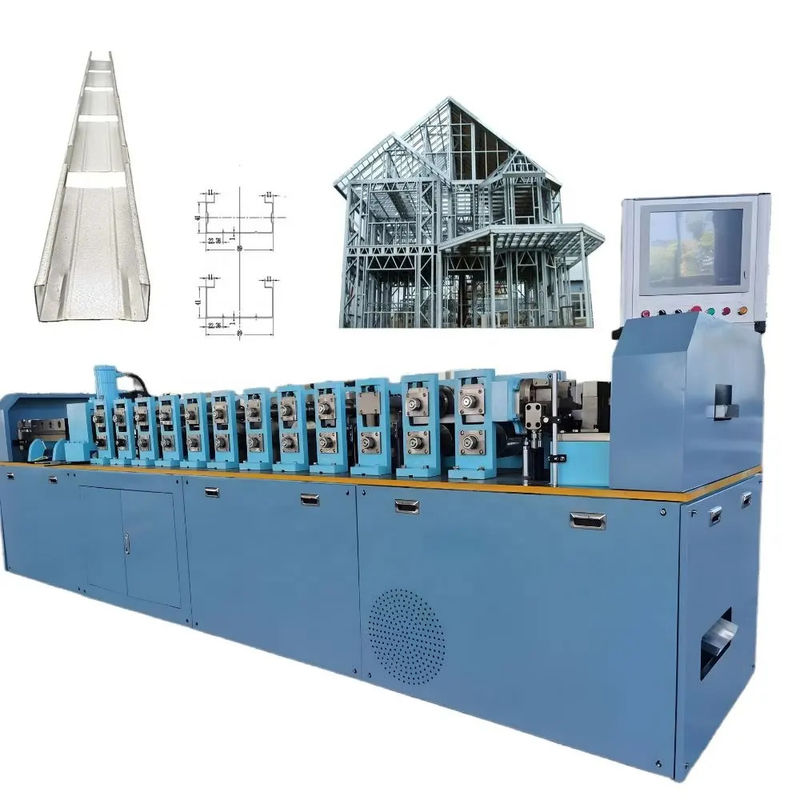

The Light Steel Framing Machine is the automatic production line. Width 89mm, 140mm 200mm are the common sizes. The machine includes decoiler, hydraulic punching, hydraulic cutting, passive output table, industrial computer and so on.

It is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.

This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes: America, British, Euro, Canadian and Australian.ed C & U shape profile.

Application

Light gauge steel framing machine villa keel roll forming machine

According to the specific requirements of the construction of light steel villas, equipped with stamping molds and coding devices such as concave screw holes, chamfers, web through holes, small edge shear, pipe line holes, web shrinkage, shear, etc. Adopting professional industrial computer numerical control automatic control, it has the characteristics of wide application range, high product accuracy, high degree of automation, material saving, and high degree of automation. Intended to continuously innovate prefabricated buildings and diverse structural forms in the market, We can design and manufacture specialized equipment according to customer requirements, and provide supporting equipment such as planking/adjustable C-steel.

Technical Data:

Size	C75 or C89 or C140 or C200
Thickness	0.8mm-1.2mm,0.8-1.6mm,0.8-2.0mm(Galvanzied coils and Aluzinc
Standard Producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	7.5kw Servo motor or 11KW servo motor
Power supplier	415V 50Hz 3phases according to your request
Hydraulic station	7.5kw Motor or 7.5KW
Hydraulic tank capacity	100L
Hydraulic cooling	Fan cooling with Accumulator
Hydraulic pressure	Manually set
Host cordless remote control	Standard
Frame and punching dies	Web Notch(1 set),Screw hole(1 set), chamfer(1 set), flange cut(1 set), Service Hole(1 set), suspension, cutting blade(1 set)
Product accuracy+-	0.5mm
CNC inkjet-printer	HP inkjet printer
Size	4700/53009501200mm
Weight	3000kg/4500
Color	According to your request
De-colier	2 Tons electric decoiler with leveling device

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 6

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 7
