Name: C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bab 89
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Bab 89

Hubungi Kami

Minta Penawaran Harga

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Detail Produk

Nama Produk:

Mesin Roll Forming C89

Dimensi (P*L*T):

6800mm*1000mm*1500mm

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

20 m/menit - 25 m/menit

Warna:

Putih

Pengiriman:

45 hari kerja

Tenaga Motorik:

7,5 kW

Beban kontainer:

20 kaki

Pasokan daya:

380V, 60Hz, 3Ph

Profil:

Bab 89

Sistem Pengendalian:

PLC

Akurasi Panjang Pemotongan:

± 2mm

Sistem pemotongan:

Hidrolik

Ketebalan material:

0,8-1,2mm

Voltase:

380v

Menyoroti:

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

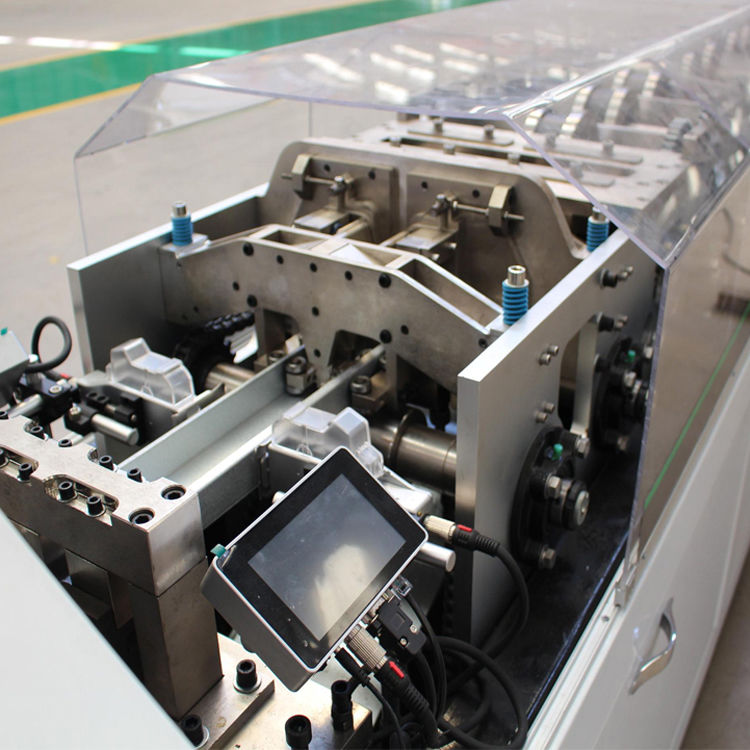

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

High speed Stud And Track Roll Forming Machine with flying cutting system

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5-1.2 mm
3	Working Speed	20-40 m/min
4	Roller Station	9 Raws
5	Dimension (LWH)	5800 mm1000 mm1500 mm
6	Machine Weight	2000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

Easy to operate
Long warranty

Payment terms

40% in advance as down payment by TT
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
