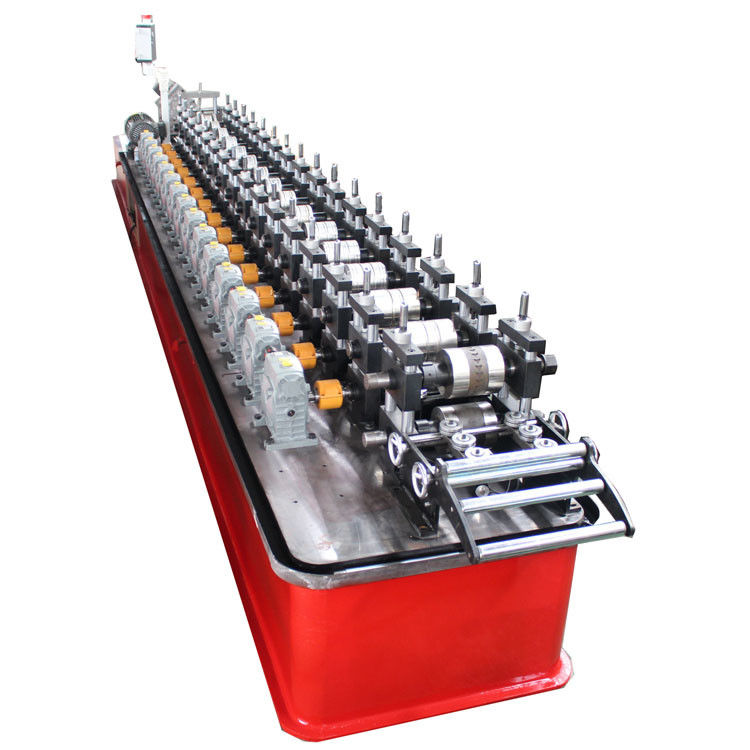

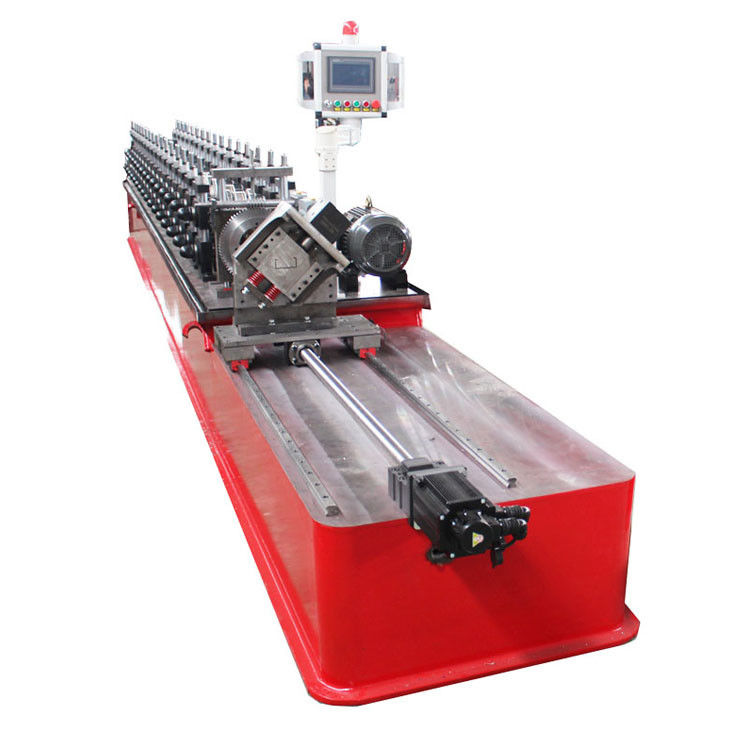

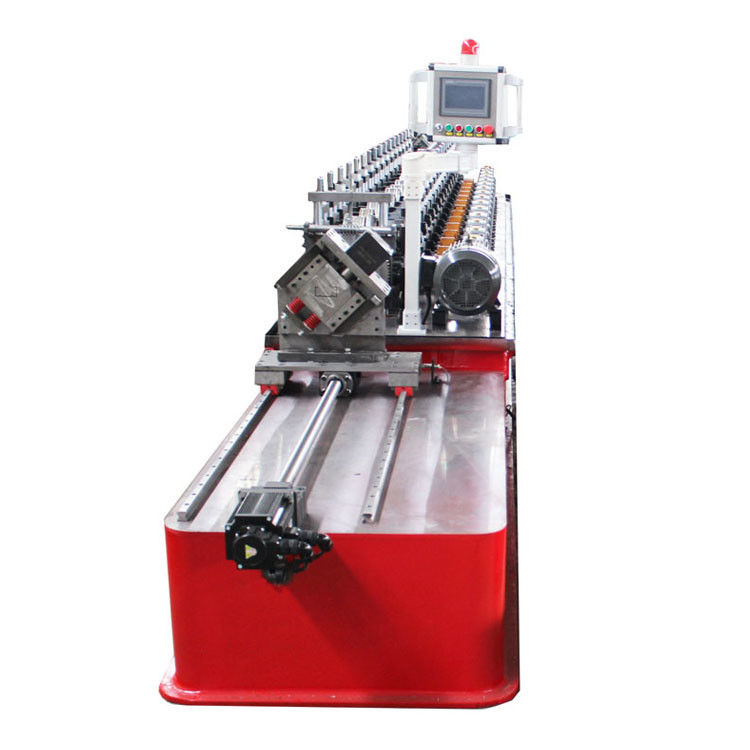

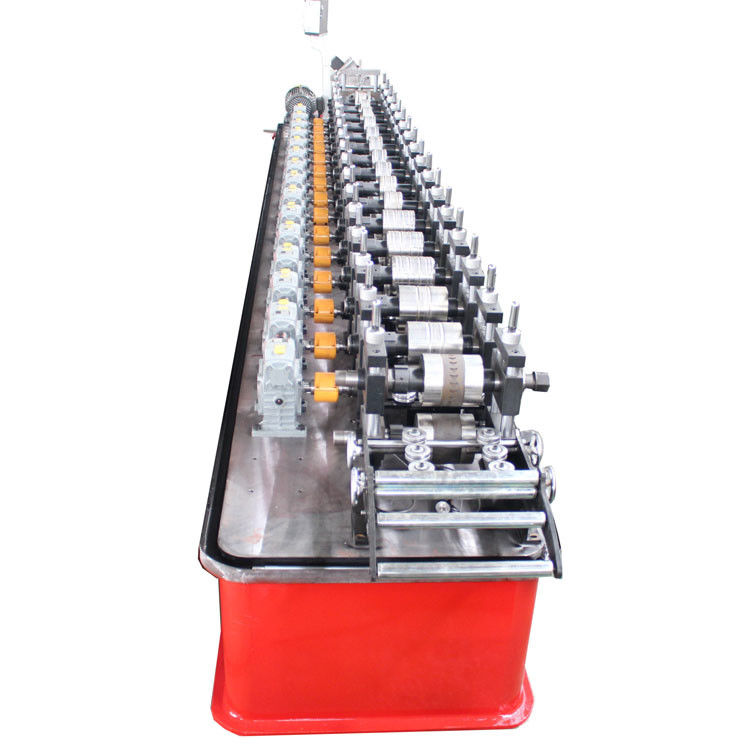

Name: Flying Cut System 3kw C Channel Roll Forming Machine High Speed For Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: bentuk C
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Flying Cut System 3kw C Channel Roll Forming Machine High Speed For Ppgi

3kw c channel roll forming machine

ppgi c channel roll forming machine

flying cut system c channel machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

bentuk C

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Sistem Flying Cut Mesin Roll Forming Saluran C Berkecepatan Tinggi Ppgi

Bahan mentah:

PL,GL,PPGL,PPGI

Voltase:

380V/50HZ3Phase (sesuai permintaan pelanggan)

Pemecah rol:

Kolom panduan

Bingkai:

pelat tengah dilas

Ketebalan bingkai:

25mm

Mode drive:

Gigi

Bahan rol:

GCr12mov

Menyoroti:

3kw c channel roll forming machine

ppgi c channel roll forming machine

flying cut system c channel machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Flying Cut System High Speed C Channel Roll Forming Machine Ppgi

As a leading manufacturer of roll forming machines in China, Cangzhou Famous's shutter door channel machine has high quality, long service life, easy operation, and excellent after-sales service that has won the appreciation of customers around the world.

Combined with a decoiler and receiving table, it formed a complete production system. The production line is usually operated by one or two workers.

This machine can work at a speed of 30 meters per minute and the profile can be customized. Additionally, we manufacture other types of roll forming machines, such as roof tiles machines, floor deck machines, purlin machines, guardrail machines, gutter and downspout machines, etc.

Specification

No.	Item	Description
1	Core Components	Motor, Engine, PLC
2	Shaft material	45#steel hardening and tempering
3	Cutting Mode	Hydraulic Cutting
4	Material of shafts	40Cr steel with tempering
5	Cutting length tolerance	±1.5 mm
6	Diameter of shafts	φ40mm
7	Number of rollers for omega	11 rollers
8	Main power	3kw
9	Power Supply	380V, 50HZ, 3 PHASES
10	Cutting Accuracy	±2 mm
11	Driving Mode	Single Chain 1 inch

Application

The light steel keel is a building metal skeleton that is rolled by a cooling process by high-quality continuous hot-dip aluminum zinc strip. The shape decoration of the finished non-loaded wall made of paper gypsum boards, decorative gypsum boards. Suitable for modeling decorations of a variety of building roofs, internal and external walls of the building and the base materials of the hooded ceiling

Advantage

This C Channel Roll Forming Machine is very easy to operate . Customer just need set up the length and piece of C channel that you need on the PLC , then it will start to work . Our C channel machine has two operate way , manual and automatic .
