Name: Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Baja Pengukur Cahaya
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min

Light Gauge Steel Roll Forming Machine

25m/min stud and track forming machine

10m/min stud and track forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Baja Pengukur Cahaya

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Pengukur Cahaya Kepala Ganda 0,3-0,8 Mesin Roll Forming Baja Membuat Profil Drywall

Bahan mentah:

PL,GL,PPGL,PPGI

Kecepatan kerja:

10-25m / mnt

Ketebalan material:

0,3 mm - 0,8 mm

Berat:

3500kg

Pengiriman:

30 hari kerja

Mode mengemudi:

Rantai 1 Inci

Bahan Rol:

#45

Menyoroti:

Light Gauge Steel Roll Forming Machine

25m/min stud and track forming machine

10m/min stud and track forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

25 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

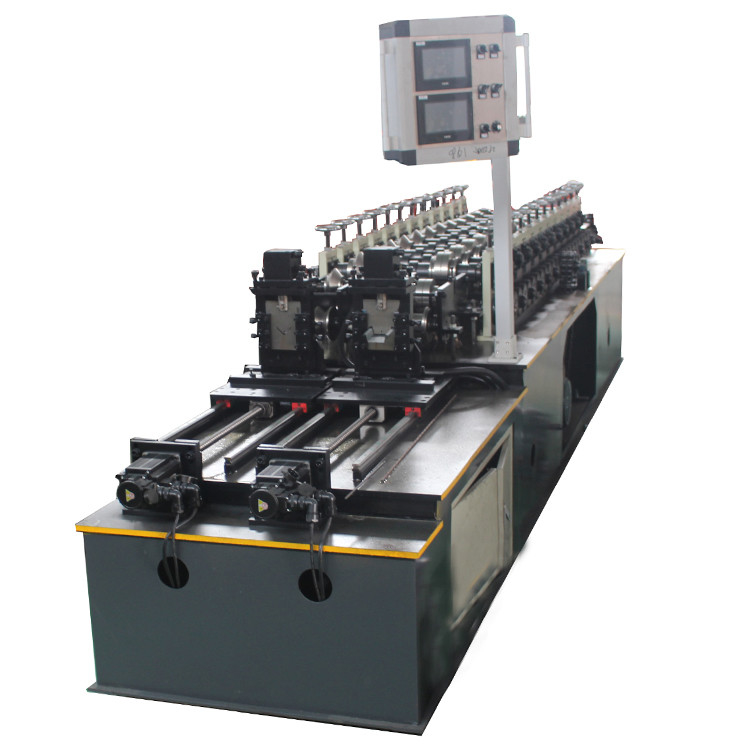

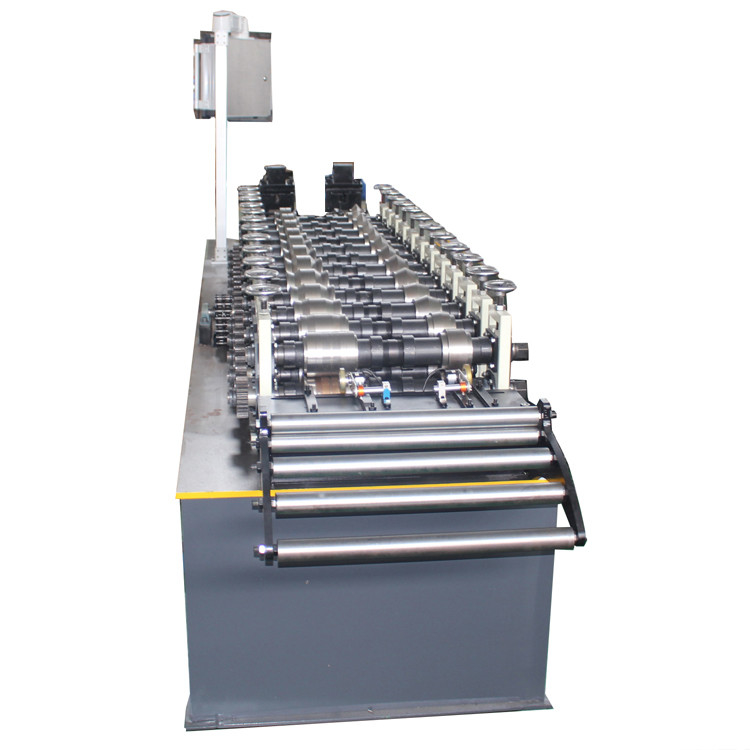

Double Head Light Gauge Steel Roll Forming Machine Stud And Track Roll Forming Machine

Cangzhou FMS has a long history in producing rolling machines. Decades ago, their technical experience was consolidated through a flexible hydraulic punch system called 'soft punching'. Since then, Cangzhou FMS has produced several systems to meet the constantly changing industry needs. We have a team of professionals with many years of experience and a good track record, which can bring you some advanced and innovative energy, and this is also the case.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	10-25m/min
4	Roller Station	13 /16Raws
6	Machine Weight	3500 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
