Name: Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine Customized
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Pejantan dan lacak
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine Customized

40m/min Cold Roll Forming Machine

Angle Steel Cold Roll Forming Machine

Metal Strip Cold Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Pejantan dan lacak

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dingin Baja Sudut 50*50 L Strip Logam Otomatis yang Disesuaikan Untuk Amerika

Dimensi (P*L*T):

5800x1400x1600mm

Bahan roller:

45 # baja tempa

Kecepatan kerja:

20 - 40 m/mnt

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Lebar makan:

100mm

Tenaga Motorik:

25kw

Berat:

4500kg

Voltase:

380V/50HZ 3Phase (sesuai Permintaan Pelanggan)

Ketebalan material:

0,4-0,8 mm

Menyoroti:

40m/min Cold Roll Forming Machine

Angle Steel Cold Roll Forming Machine

Metal Strip Cold Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

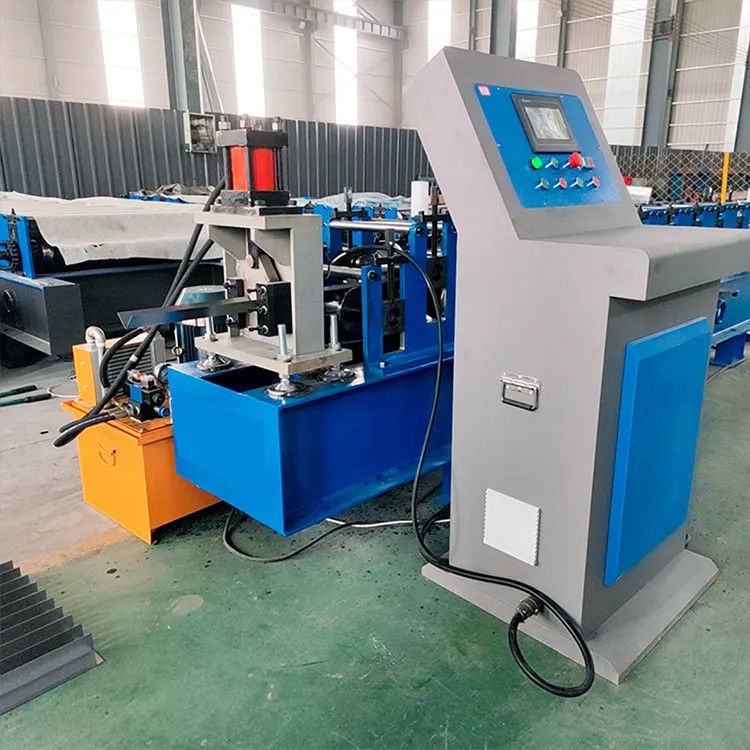

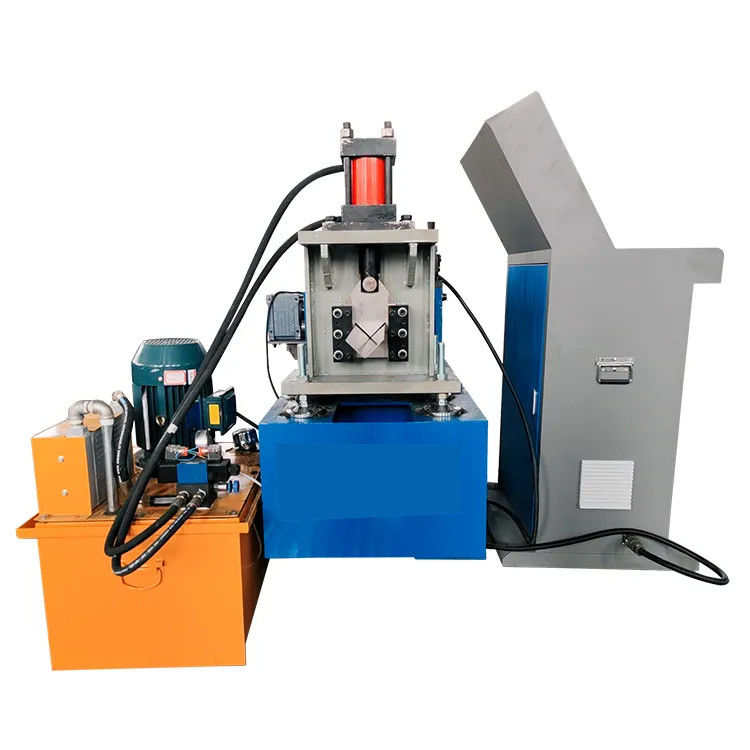

Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America

Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America.Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine

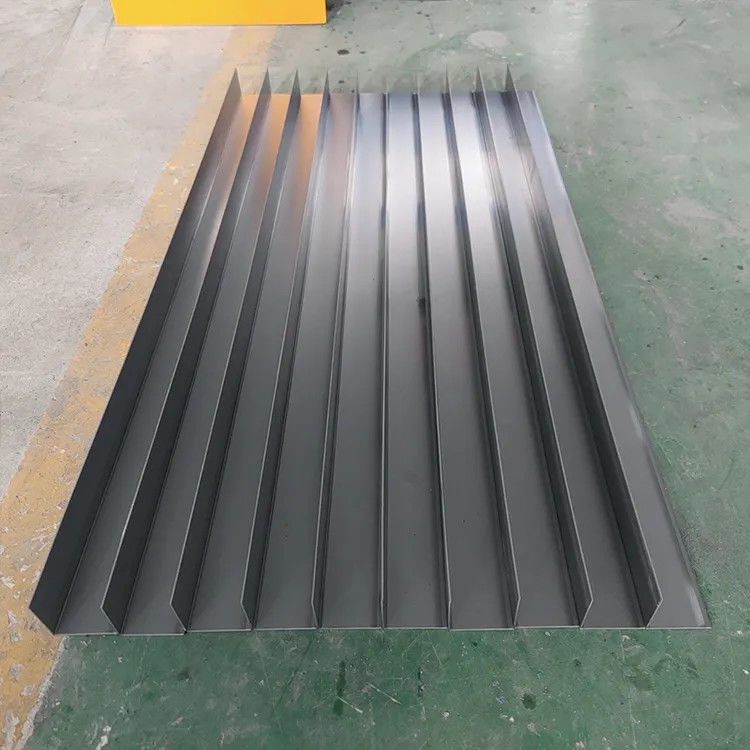

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm,50*50 mm. Product thickness common between 1-3 mm,

Specification

*Customized Automatic Metal Strip 5050 L Angle Steel Cold Roll Forming Machine For America**
Material thickness	0.3-0.8mm
Diameter of shaft(solid shaft)	70mm
Material of shaft (solid shaft)	(high grade) 45# Steel, quenching and tempering treatment
Material of roller	45# steel polished and coated with chrome HRC55-60°
Reducer	8# cycloid reducer (high grade)
Cutting	hydraulic cutting after roll forming
Control system	PLC Frequency Control System with touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine Customized 0
