Name: Metal Stud & Track Roll Former Machine With Punching
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Pejantan dan lacak
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Metal Stud & Track Roll Former Machine With Punching

Metal Stud Track Roll Former Machine

Metal Stud Track Roll Former

Punching stud roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Pejantan dan lacak

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Metal Stud & Track Roll Mesin Bekas Roll Bekas Dengan Punching

Dimensi (P*L*T):

5500mm*1000mm*1500mm

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

20 - 40 m/mnt

lebar Pejantan:

3 1/2″, 5 1/2″

Mengukur:

24 pengukur -16 pengukur

Tenaga Motorik:

4KW

Pasokan daya:

220v 3 fase 60hz

Profil:

Seperti yang diminta pelanggan

Jalur Flensa:

3,6 & 5,6x2,125

Menyoroti:

Metal Stud Track Roll Former Machine

Metal Stud Track Roll Former

Punching stud roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

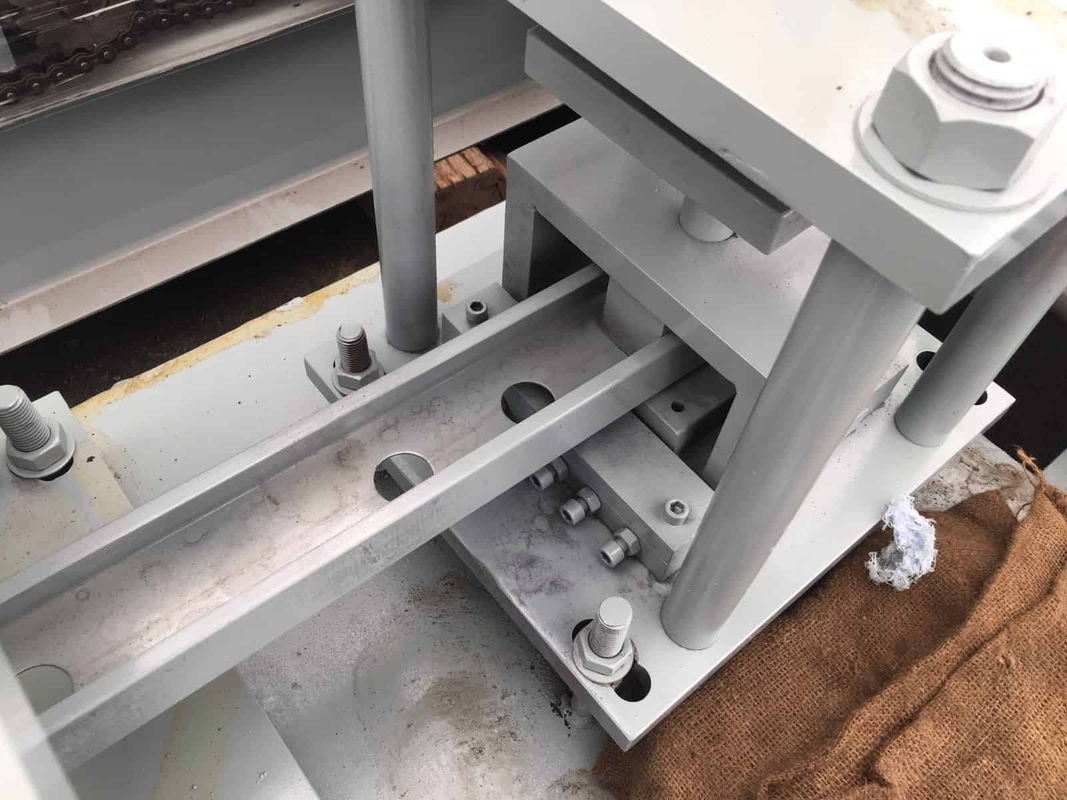

Metal Stud & Track Roll Former Machine Roll Former With Punching

The sMetal Stud & Track Roll Former Machine Roll Former With Punching for use in commercial and domestic buildings where it is necessary to provide strong non-load-bearing partitions.
There is a wide range of partition thickness available for heights of up to 12m. The system is economical and can be erected easily. When installing the system, it is advisable to use and electrically or battery-operated screw gun. It is necessary to ensure that electric cables can pass through the studs that are protected by grommets.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.4-0.6mm
3	Working Speed	20-40 m/min
4	Roller Station	12 Raws
5	Dimension (LWH)	5500 mm1000 mm1500 mm
6	Machine Weight	1500 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Flange Track	3.6 & 5.6 x 2.125
9	Hydraulic Station Power	4 KW
10	Power Supply	220v 3 phase 60hz(can be customized)
11	Cutting Accuracy	±2 mm
12	gauge	24 gauge -16 gauge
13	Profile	as customer requested
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
