Name: Auto Line Electric Double Head Decoiler 360 Degree Rotation
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5T- Decoiler Hidraulik Otomatis Dengan Mobil
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Auto Line Electric Double Head Decoiler 360 Degree Rotation

Auto Line Electric Decoiler Forming Machine

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

5T- Decoiler Hidraulik Otomatis Dengan Mobil

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Decoiler Listrik Jalur Otomatis Stacker Decoiler Kepala Ganda

Bahan yang cocok:

Strip baja, GI, PPGI, AL

Dimensi (P*L*T):

11000mm *1300mm X 1350mm

Bahan memperluas sumbu:

200-600 mm

Kecepatan kerja:

50 m/mnt

Memuat Berat:

1500 kg

Kekuatan:

4KW

Ketebalan material:

0,5-2,0 mm

Bahan roller:

45 # baja tempa

Voltase:

380V/415V

Menyoroti:

Auto Line Electric Decoiler Forming Machine

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

20' FLC

Waktu pengiriman

20 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, L/C, D/A, D/P

Menyediakan kemampuan

100 set per bulan

Produk terkait

Video

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Dapatkan Harga Terbaik

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

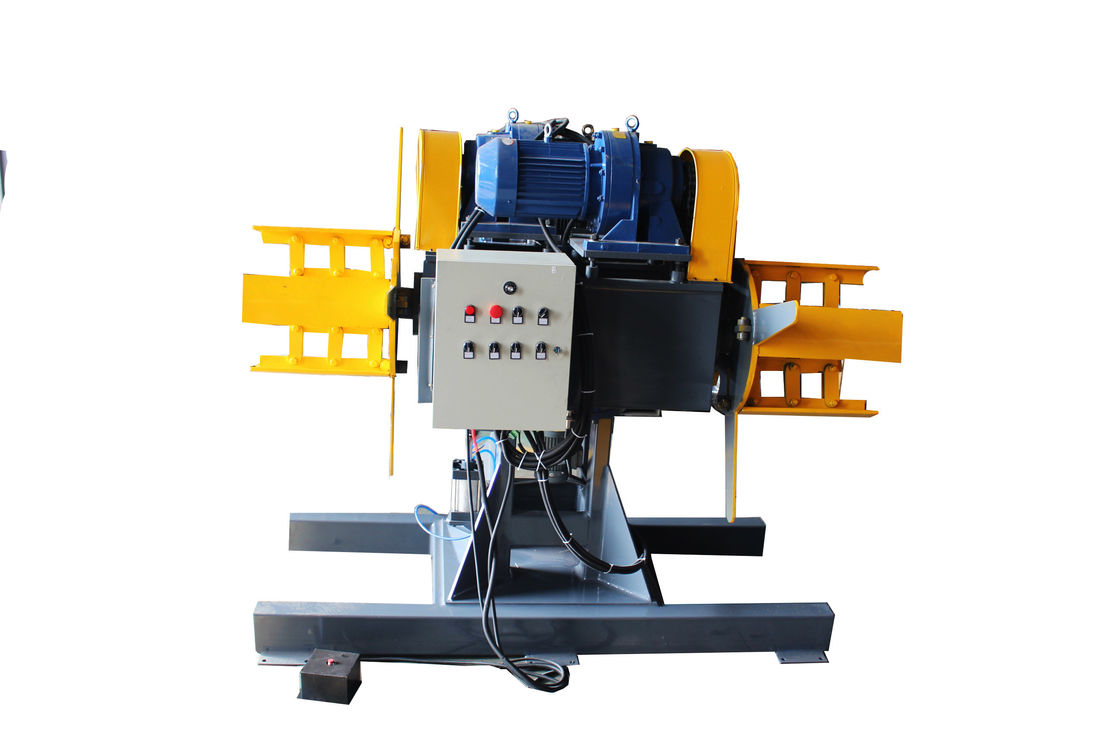

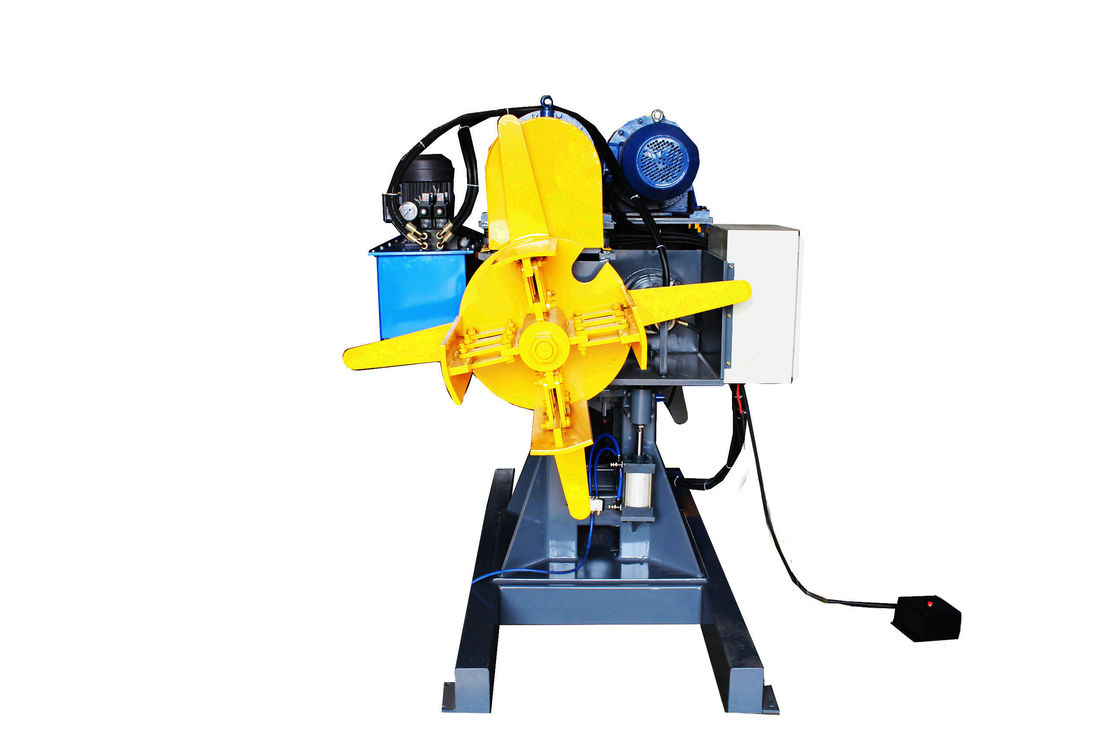

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler 360 degree rotation. used to support the steel coil and provide tension to the steel belt. It is an uncoiler composed of a frame, a main shaft, a telescopic drum and a braking device. The roll material of the hydraulic automatic decoiler rolls freely on the movable shaft seat of the left and right boxes to open the roll material. The steel plate advances to the leveling machine on the conveyor frame, which is the first process of the leveling machine.

Specification

Material Thickness	0.5-2.0 mm
Working Speed	0-50m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	18.5 KW
Electrical Hydraulic Station Power	7.5 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
