Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling

20m/min Light Steel Roll Forming Machine

Drywall Steel Roll Forming Machine

Ceiling Steel Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Baja Ringan Saluran Stud Dan Track Untuk Drywall Dan Plafon

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

10-20m/mnt

Jenis pemotongan:

Pemotongan hidrolik

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Dimensi (P*L*T):

8000*800*1000mm

ketebalan bahan baku:

0.3-0.8mm

Sistem Pengendalian:

PLC (merek Delta)

Kekuatan:

5 kW

Berat:

4000 kg

Menyoroti:

20m/min Light Steel Roll Forming Machine

Drywall Steel Roll Forming Machine

Ceiling Steel Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

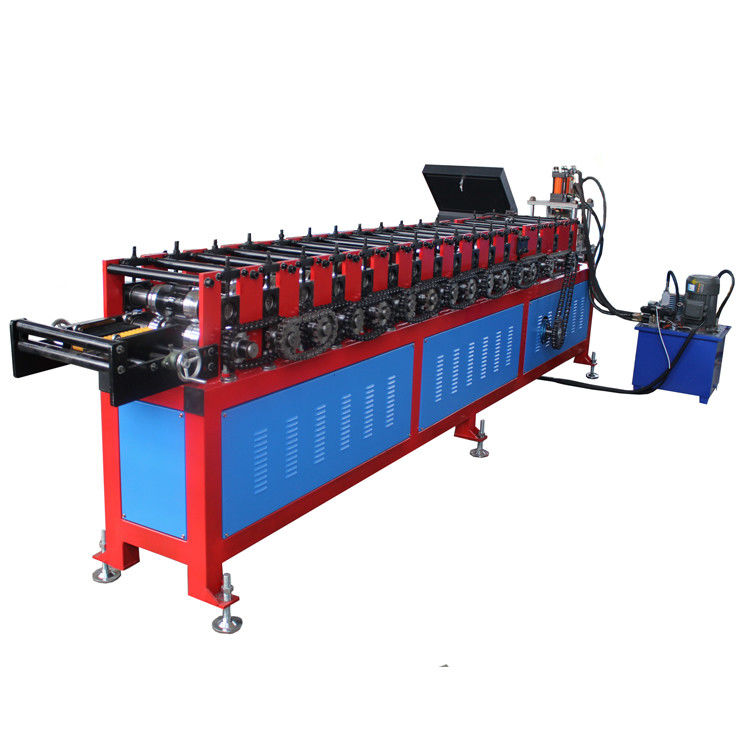

Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling

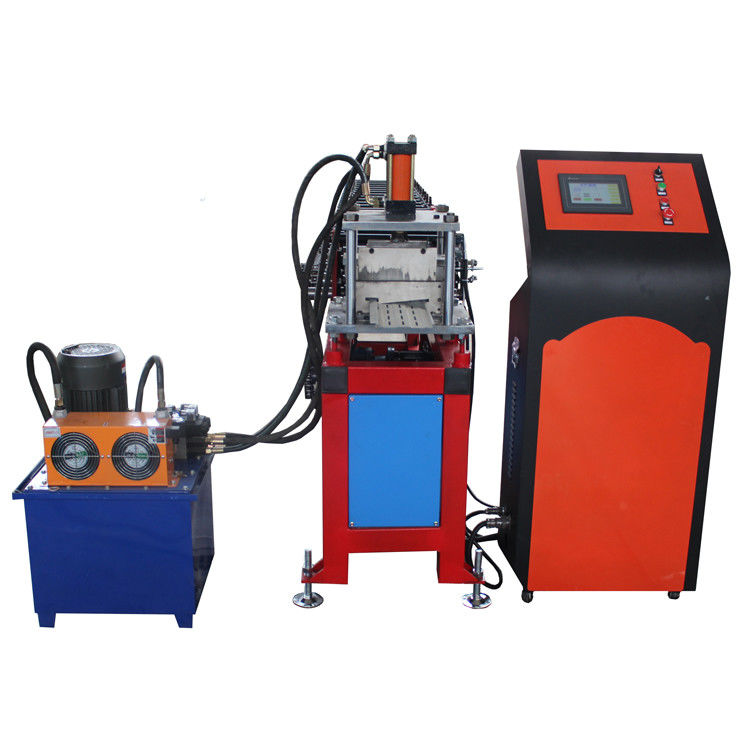

Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling,usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .

Specification

Specifications for reference

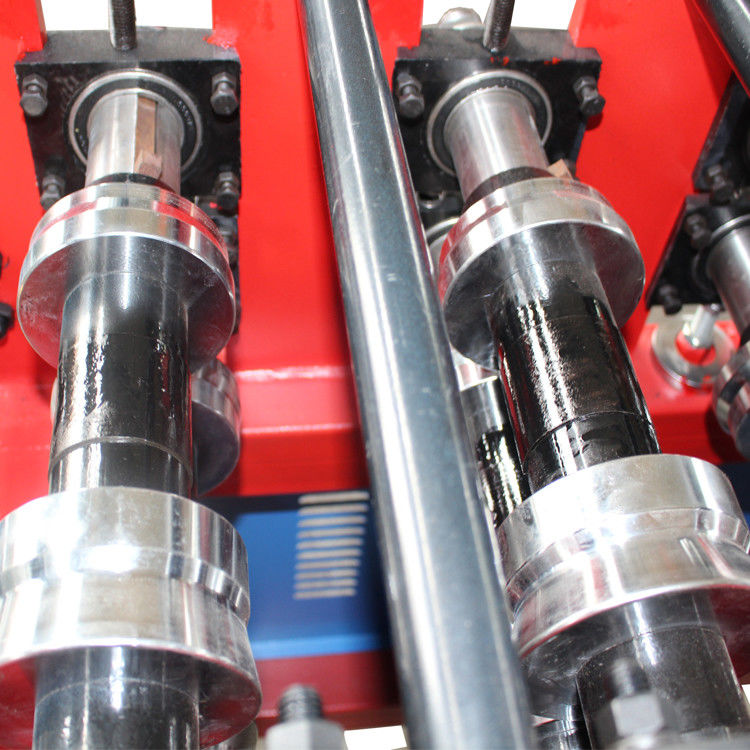

Material of Shaft	70 mm 45#steel forged
13.0Material Thickness	0.3-0.8 mm
Voltage	380V/50HZ 3 Phase(as Customer's Request)
Cutting type	Hydraulic Cutting
Working Speed	10-20 m/min
Main Motor Power	5 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	14 Raws

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling 0
