Name: Metal Color Steel Cut To Length And Slitting Line High Efficiency
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dipotong menjadi garis panjang
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Metal Color Steel Cut To Length And Slitting Line High Efficiency

50m/min Mini Slitting Machine

Metal Color Steel Mini Slitting Machine

Slitting And Cut To Length Line

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO, CE

Nomor model:

dipotong menjadi garis panjang

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Baja Warna Logam Efisiensi Tinggi Dipotong Panjang Dan Garis Mesin Menggorok

Kapasitas Produksi:

50 m/mnt

Garansi komponen inti:

1 tahun

Voltase:

380V/415V

Dimensi (l x w x h):

11000mm *1300mm X 1350mm

Berat mesin:

2-3 Ton

Kekuatan:

18,5 kW

Ketebalan material:

0,5-2,0 mm

Menyoroti:

50m/min Mini Slitting Machine

Metal Color Steel Mini Slitting Machine

Slitting And Cut To Length Line

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Tetapkan Lini Produksi

Harga

negotiable

Kemasan rincian

1 buah FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

20 Set Bulanan

Produk terkait

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

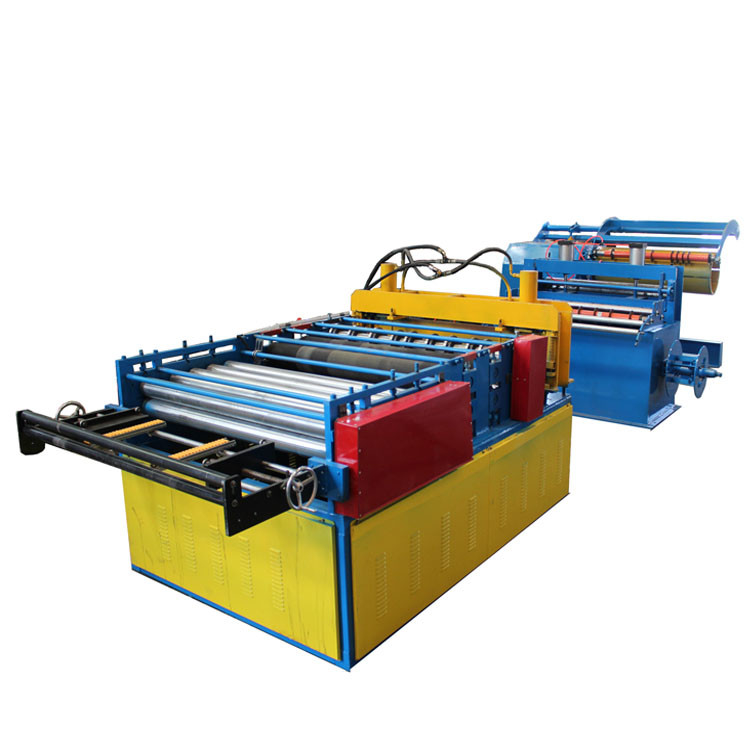

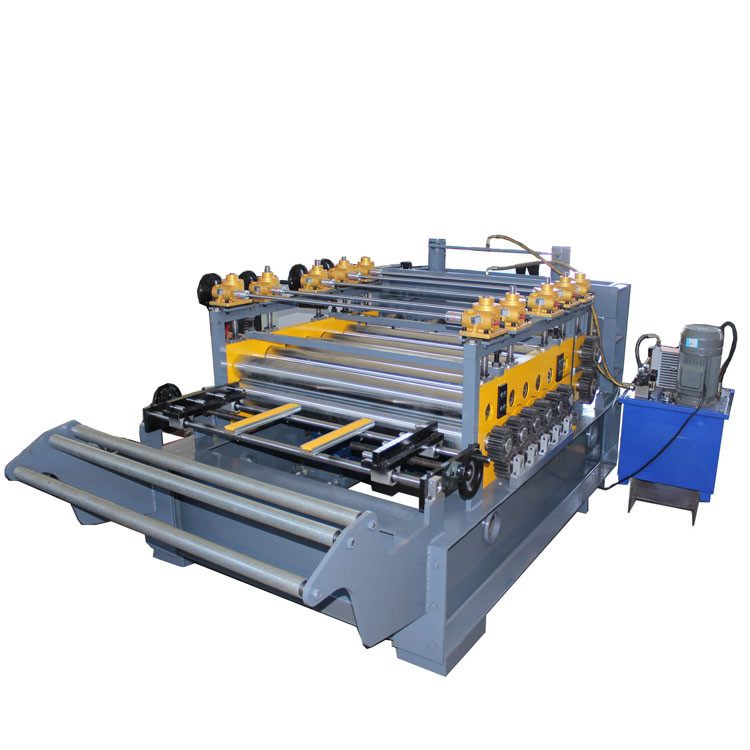

High Efficiency Metal Color Steel Cut To Length And Slitting Machine Line

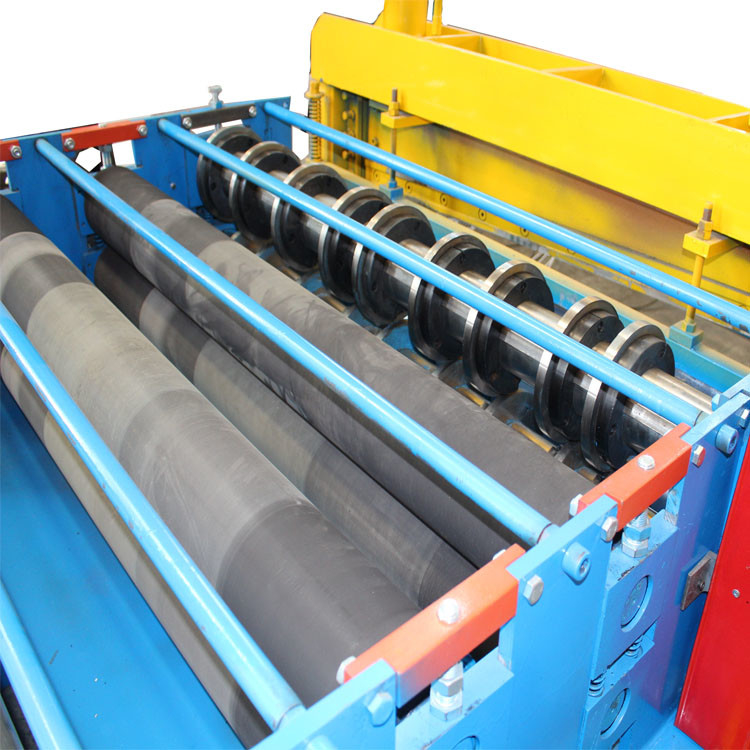

Mini Slitting Machine uses extremely sharp rotary blades to cut large coil into strips of metal that have narrower widths. Circular Blades or Knives can be moved to make sheet metal strips of varying widths. Mini Slitter is designed as coil slitter only. Used for both sheet metal pieces or rolls of metal coil.

Material Thickness	0.5-2.0 mm
Working Speed	0-50m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	18.5 KW
Electrical Hydraulic Station Power	7.5 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received
