Name: Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: segi delapan
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel

octagonal tube stud roll forming machine

galvanized steel stud and track machine

20m/min stud and track machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

segi delapan

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Stud Tabung Oktagonal Baja Galvanis dan track Mesin Roll Forming

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

15-20 m/mnt

Lebar makan:

seperti yang diminta

Dimensi (P*L*T):

5000*600*900

Berat:

3500 kg

Komponen inti:

Motor, plc

Bahan roller:

Baja Gcr15 Berlapis Krom

Menyoroti:

octagonal tube stud roll forming machine

galvanized steel stud and track machine

20m/min stud and track machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

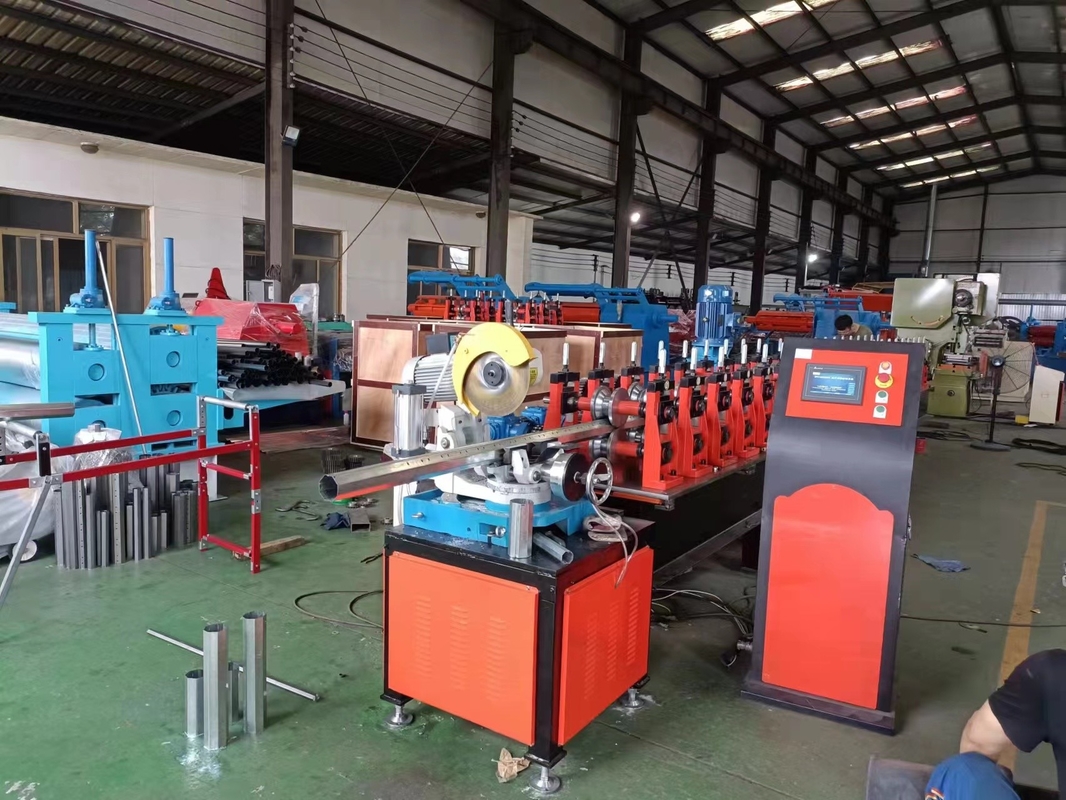

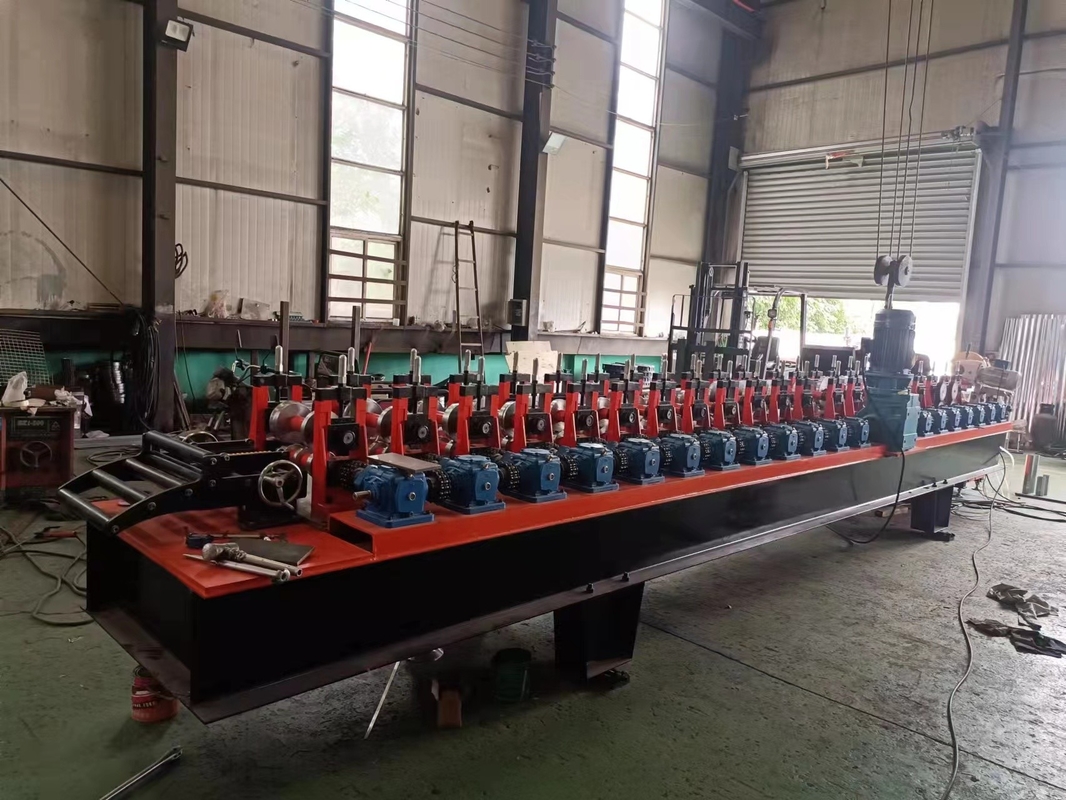

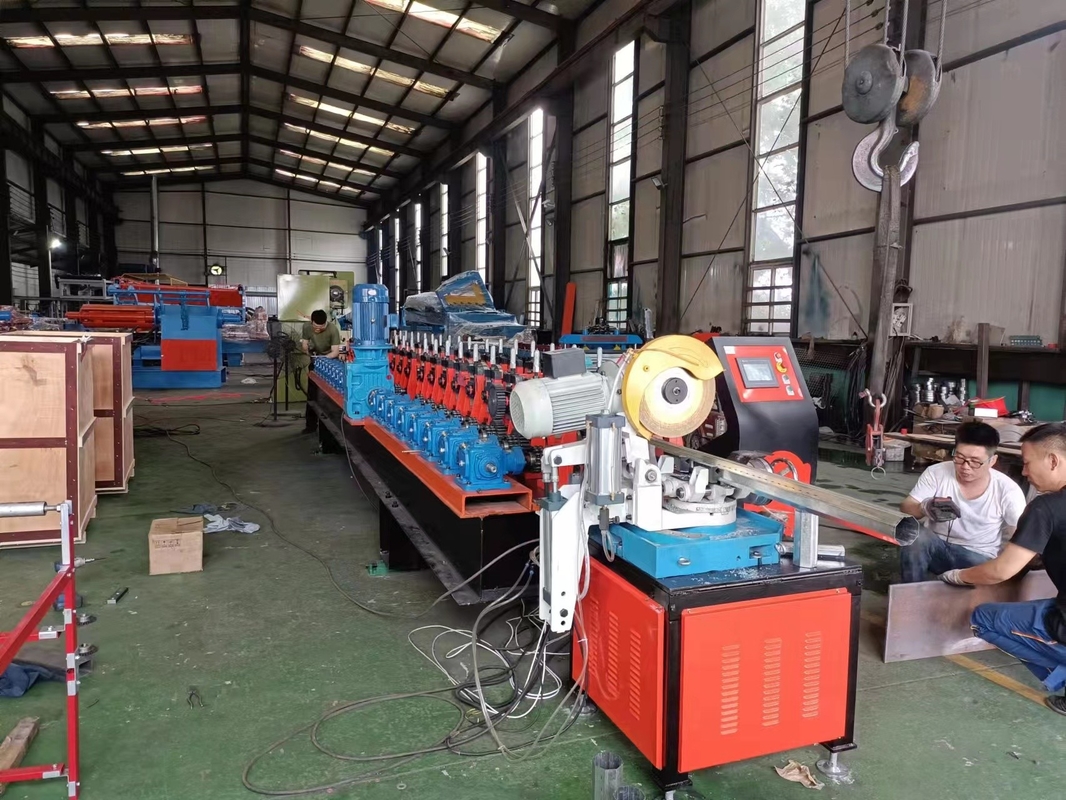

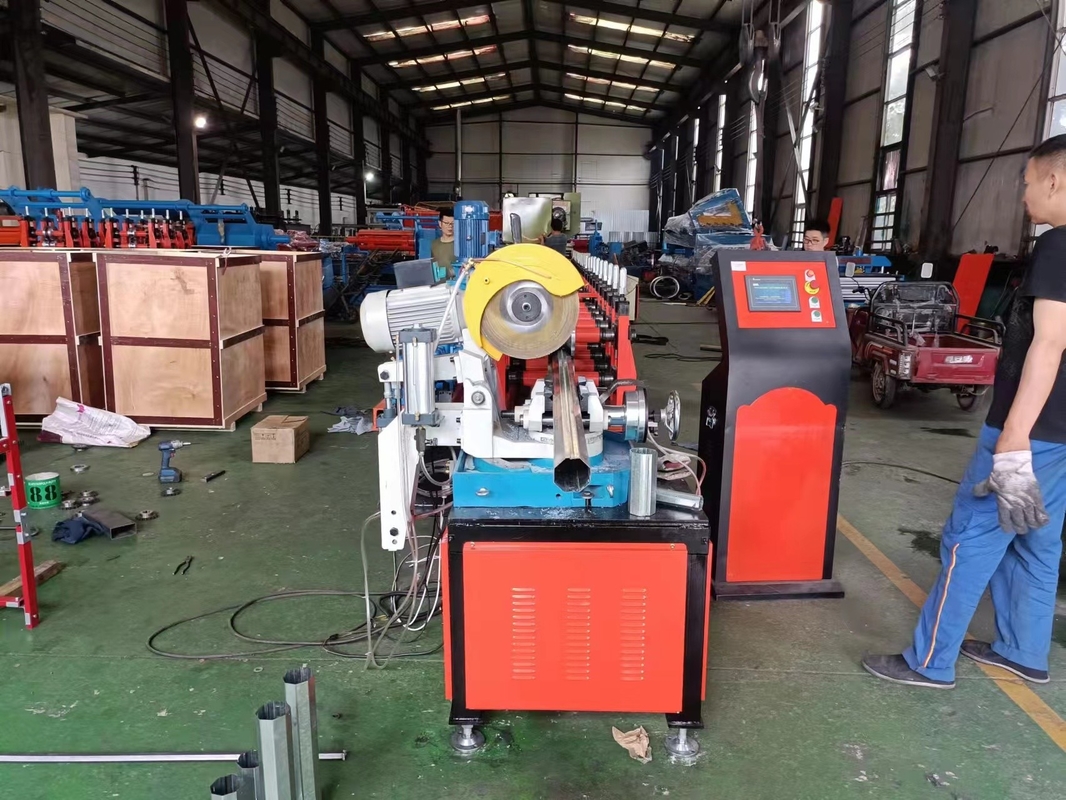

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine

The octagonal pipe production line is one of the components of rolling door equipment. It is used to collect the "octagonal tube" scroll of rolling door leaves and rolling door panels. It should be used in supermarkets, shops, private residential garages, warehouses, factory buildings and other rolling door.

Specification

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	22 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	4 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB or CNF
The Delivery Time: 30-40 days after the down payment is received.
