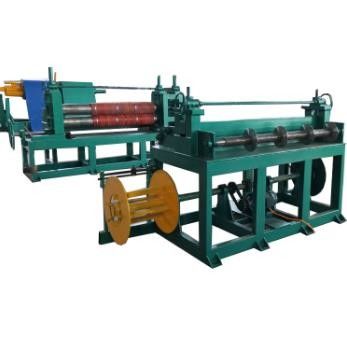

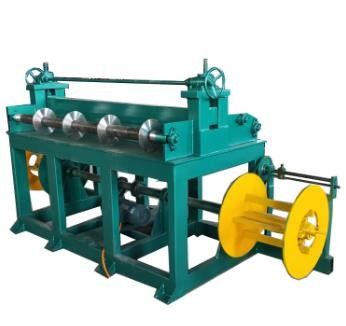

Name: Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: menggorok
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm

q235 slitting cutting machine

color steel slitting cutting machine

0.2mm slitting cutter machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO, CE

Nomor model:

menggorok

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Q235 Baja Karbon Baja Warna Garis Mesin Pemotong Menggorok Sederhana 0,2 - 2,0mm

Bahan pemotongan:

Galvalum, Galvanis

Ketebalan material:

0,2 mm -3 mm

Kecepatan kerja:

8m/mnt - 30 m/mnt (dapat disesuaikan)

Berat kumparan:

Dapat disesuaikan

Menggorok Buah:

2 - 30 buah

Berat mesin:

13.000 kg

Pemotongan Lebar Presisi:

± 0,01 - ± 0,05mm

Menyoroti:

q235 slitting cutting machine

color steel slitting cutting machine

0.2mm slitting cutter machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Tetapkan Lini Produksi

Harga

negotiable

Kemasan rincian

2 buah FLC 40'

Waktu pengiriman

60 hari kerja

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

5 set per 60 hari

Produk terkait

Video

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Dapatkan Harga Terbaik

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm

The slitting production line consists of three main parts: a decoiler, a slitter, and a rewinder. As the material is fed through the nip between the two circular cutting wheels (one at the top and the other below), it is re-wound in the slit covering on the recoiler. Equipment suppliers and end users must work together to determine the appropriate components, shank size, tool kit, horsepower, and tension for the material being cut.

Specifications

No.

Item

Description

1 Main Specification	1 Raw Material	Galvanized, Aluminum,Color steel, Handness 235MPa
	2 Raw Material Thickness	0.2 mm - 3.0 mm
	3 Raw Material Width	600 mm - 1600 mm
	4 Tape Inner Diameter	φ 480 mm - φ 550 mm
	5 TapeOuter Diameter	φ 1600 mm
	6 Coil Weight	5 tons 7 tons 10 tons
	7 /Slitting No.	Max 30 pcs
	8 The Highest Slitting LineSpeed	8 m/min - 35 m/min
	9 Minimum Cutting Line Width	30 mm
	10 Cutting Width Precision	± 0.01 - ± 0.05 mm
	11. Rated Operational Voltage	380 V, 3 Phase, 60 Hz as per requested
	12. Total Weight	14000 KG
	12. Working Space(L*W)	20000 mm*6000 mm
2 Decoiler Machine Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 /7/10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 480 mm - φ 530 mm
	7 Shaft Diameter	φ180 mm
	8 Roller Effective Length	1600 mm
	9 Drive Moter Power	5 KW
	10. Loading Car Diameter	φ 700 mm - φ 1500 mm
	11 Loading Car Weight	5 /7/ 10 tons
	12 Car Speed	About 4 m/min
4 Slitting Machine Specification	1 Cutting Width	Max φ 1600 mm
	2 Cutting Thickness	0.2 mm - 2.0 mm
	3 Cutter Shaft Diameter	φ180 mm
	4 Cutter Shaft Material	Cr 40
	5.Cutter Size	200 mm300 mm15 mm
	6 Cutter Material	Cr12MoV
	7 Cutter Spacer Size	180 mm240 mm15 mm
	8 Drive Moter	15 kw
	9 Cutting No.	2-30 pcs
	10 Cutter No.	Max 32 pcs
5 Planing Machine	1 Shaft Diameter	φ 130 mm
	2 Shaft No.	Up 2 rows, down 3 rows
	3 Mid Plate Thickness	40 mm
	4 Mulch Applicator Diameter	φ 130 mm
	5 Film Width	1600 mm
6 Tension Table	1 Segregation Shaft	3 pcs, 1 pcs pressure shaft
6 Tension Table	2 Air Cylinder	3 pcs
7 Recoiler Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 - 10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 485 mm - φ 530 mm
	7 Shaft Diameter	φ 180 mm
	8 Roller Effective Length	1750 mm
	9 Drive Moter Power	30 kw
8 Recoiler Specification	10 Loading Car Diameter	φ 1000 mm - φ 1750 mm
	11 Loading Car Weight	Max 10 tons
	12 Car Speed	About 4 m/min
9 Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10 Edge Collecting Machine	1 Drive Moter	3 kw
	2 Collecting Material Width	Max 20 mm
	3 Double Edge Width	400 mm

Advantage

Slitting lines maintain high accuracy while allowing instant changes. With large coilers and full control of machinery, using the latest technology for quality control and automation, we deliver production lines on time and on budget!

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm 0
