Cu Drywall Stud And Track Channel Roll Forming Machine High Speed

cu channel roll forming machine

drywall channel roll forming machine

hydraulic high speed roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

CU Drywall Stud Dan Track Channel Mesin Roll Forming Berkecepatan Tinggi

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

30m/mnt

Jenis pemotongan:

Pemotongan hidrolik

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Dimensi (P*L*T):

10500*1400*1500mm

Ketipisan bergulir:

0.3-0.8mm

Sistem Pengendalian:

PLC (merek Delta)

Bahan roller:

45# baja

Jenis pemotongan:

Pemotongan Pilar Panduan Hidraulik

Menyoroti:

cu channel roll forming machine

drywall channel roll forming machine

hydraulic high speed roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

CU Drywall Stud And Track Channel Roll Forming Machine High Speed

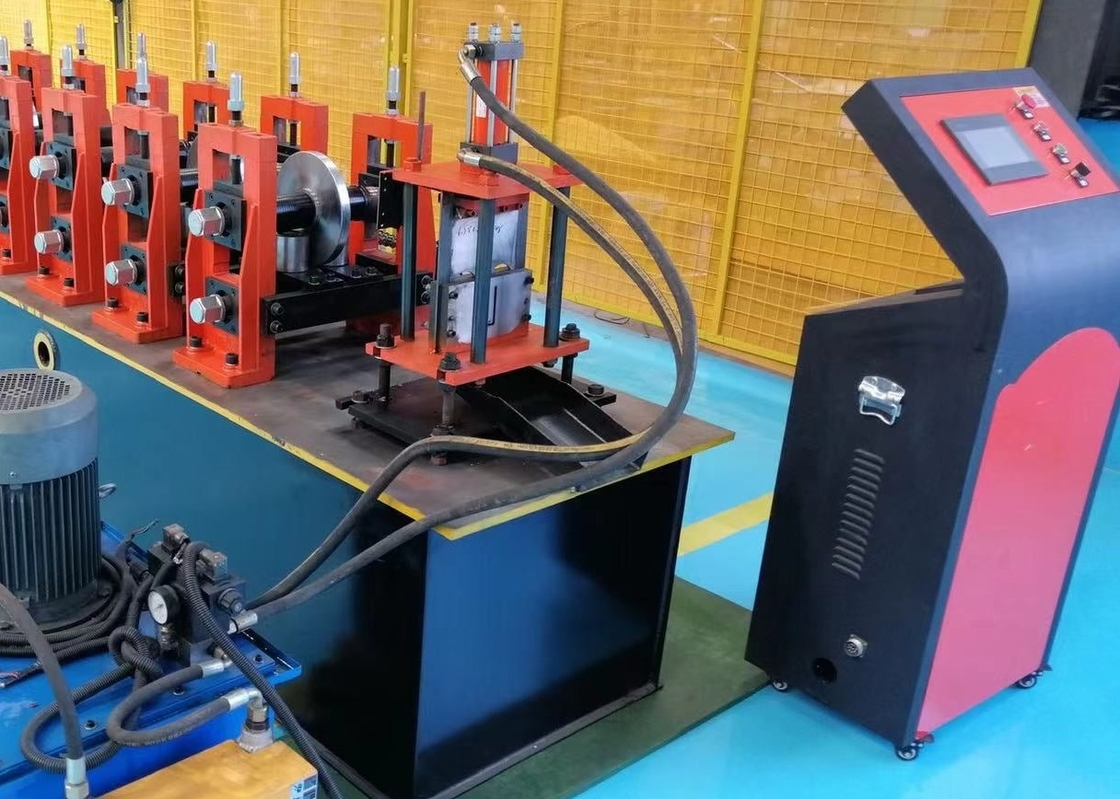

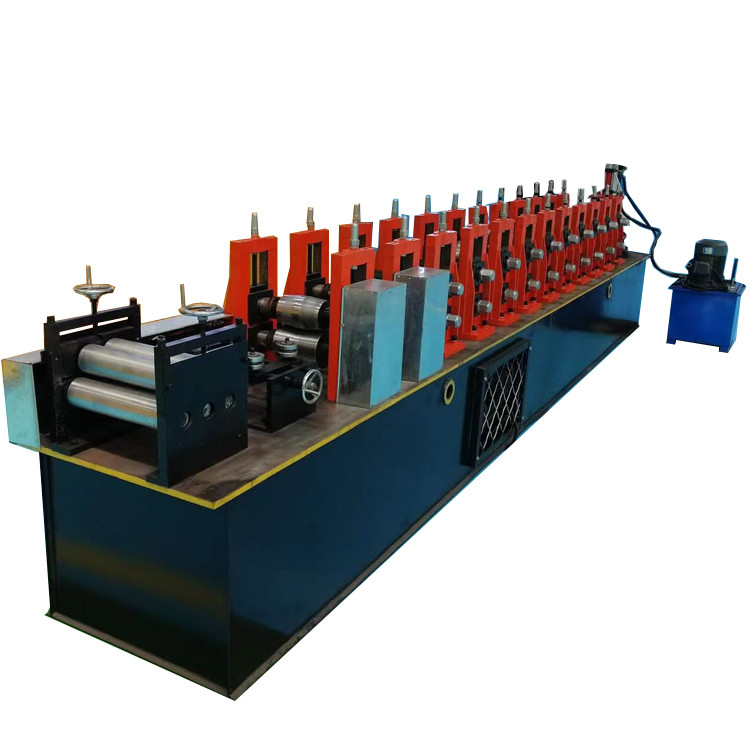

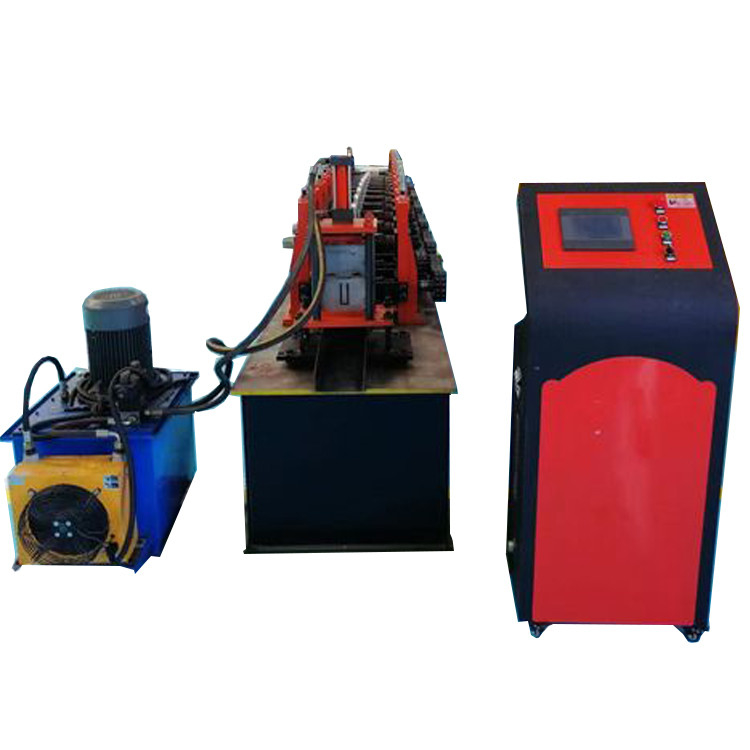

CU Drywall Stud And Track Channel Roll Forming Machine High Speed,usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .

Specification

Main motor power	5.5kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	0.3-0.8mm
Speed	30-50m/min
Roller station	14 rows
Shaft diameter	60mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1050014001500mm
Weight	about 5500 kg

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
