Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine

0.8mm omega profile roll forming machine

channel omega profile roll forming machine

0.8mm channel roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Profil Omega Mesin Roll Forming Saluran Omega

Voltase:

380V 50HZ atau disesuaikan

Kapasitas Produksi:

32-45m/menit

Jenis pemotongan:

Pemotongan hidrolik

Bahan roller:

45 # baja Berlapis Krom

Dimensi (P*L*T):

5,5*0,8*1,1m

Cutting Blade Material:

Baja cetakan CR12

Ketebalan:

0,3--0,8mm

Menyoroti:

0.8mm omega profile roll forming machine

channel omega profile roll forming machine

0.8mm channel roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

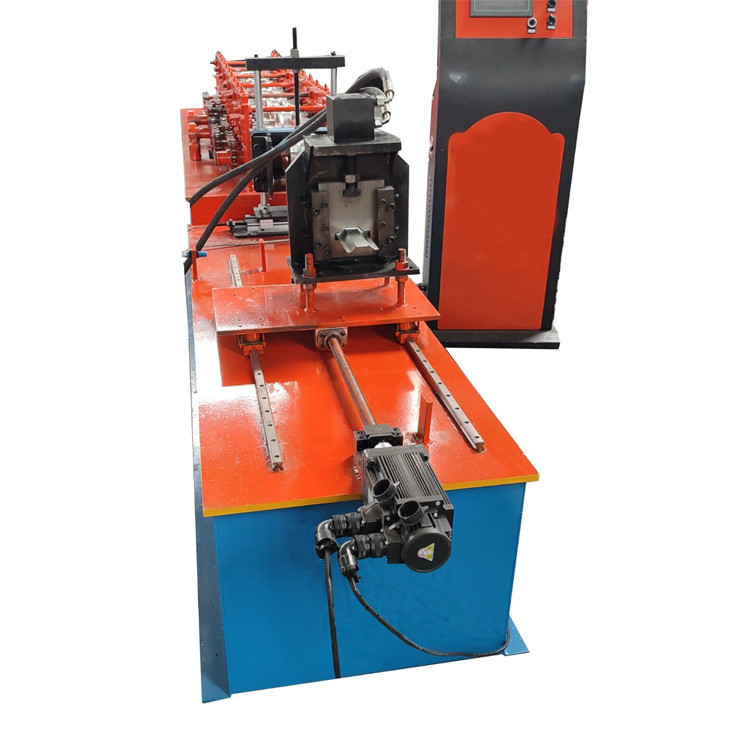

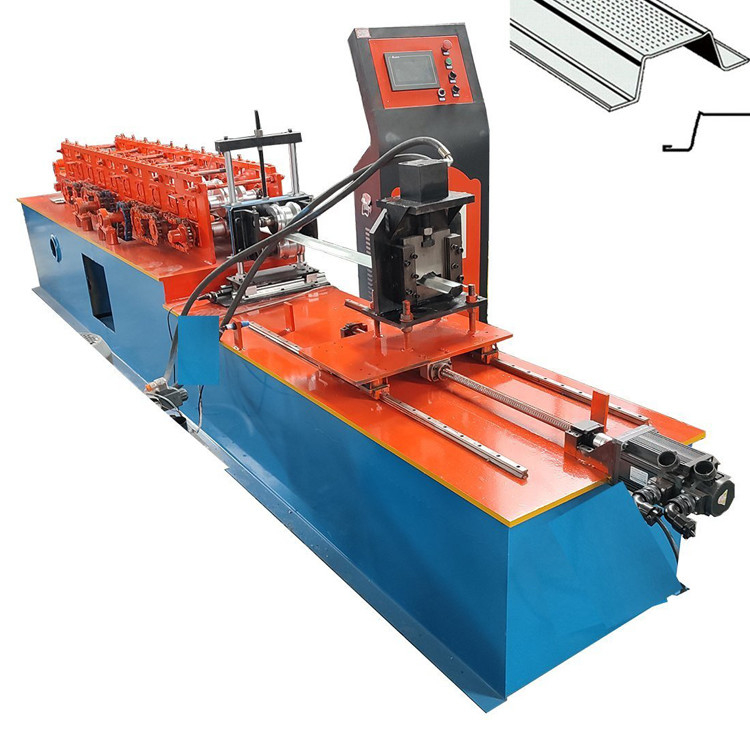

Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine

Omega channel/furring channel type widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old building,renovation, interior decoration settings, ceilings,etc. the Omega furring channel raw material thickness 0.3-1.0mm, the raw
material is galvanized sheet , the machine is non-stop cutting ,speed 20-40m/minute, we also can make machine as your requirement.

Specification

Article No.	Item Name	Specification
1	Width of feeding material	As the tile profile
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	10 stations
4	Shaft Diameter	60 mm
5	Productivity	20-55 m/min
6	Rollers' material	45# steel with 0.05mm chrome
7	Shaft material	45# steel with 0.05mm chrome
8	Weight	1.6 tons
9	Size	50.80.9m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	3 tons
13	Motor	4 kw
14	Driving way	Chain transmission
15	Chain size	1.2 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine 0
