Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

octagonal tube galvanized roll forming machine

915mm galvanized roll forming machine

octagonal tube metal roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Tabung Oktagonal Logam Galvanis 60mm 70mm

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

15-20 m/mnt

Lebar makan:

915mm

Dimensi (P*L*T):

5000*600*900

Berat:

3500 kg

Komponen inti:

Motor, plc

Bahan roller:

Baja Gcr15 Berlapis Krom

Menyoroti:

octagonal tube galvanized roll forming machine

915mm galvanized roll forming machine

octagonal tube metal roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

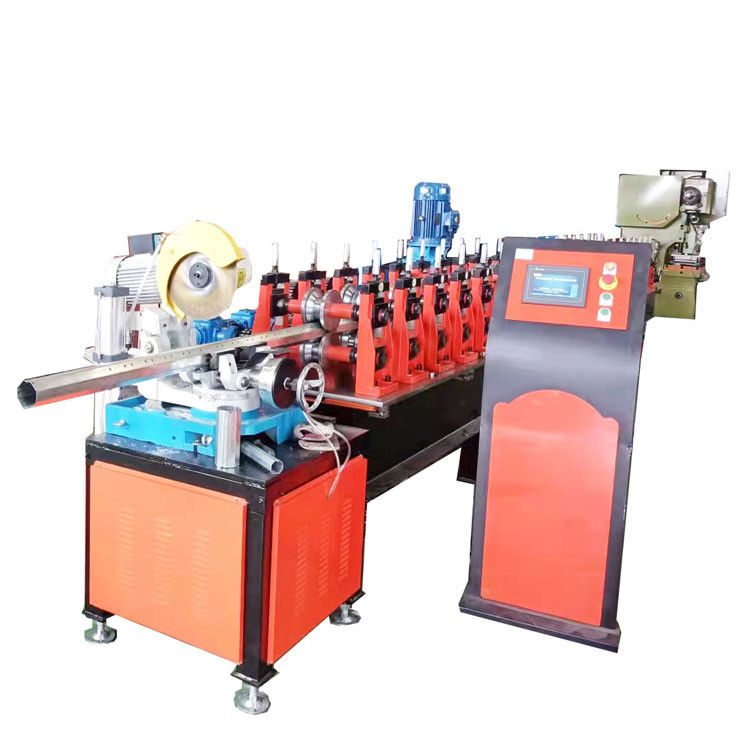

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

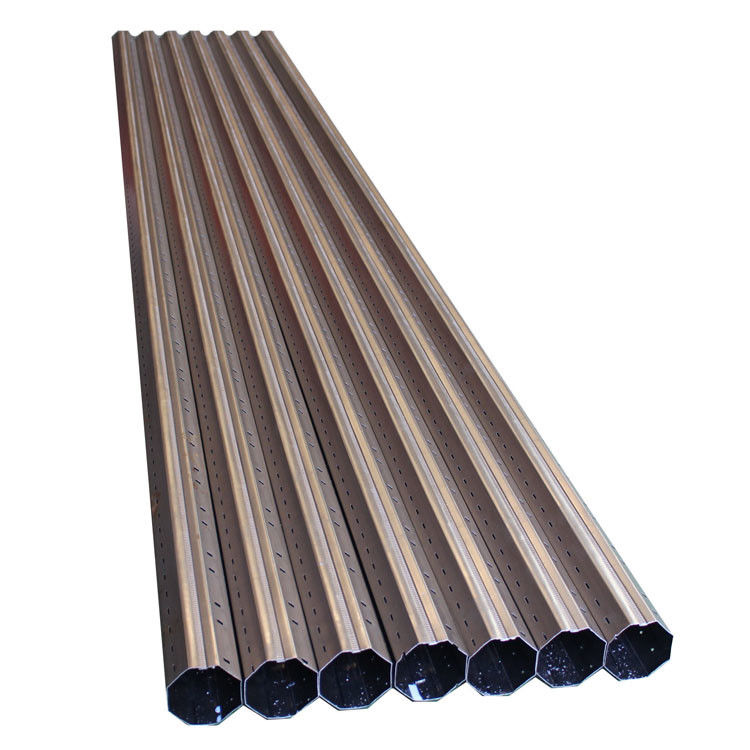

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm,The shutter door octagon pipe roll forming machine is used to produce octagon pipe for PU shutter door . The octagon pipe is used to install on the top part of shutter door , with it's help , the shutter door can open and close ( up and down ) smoothly . In this way, it can make sure the door give customers a safe and warmly environment.

Specification

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	20 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ60mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	3 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm 0
