Metal Spandrel 4" 6" Stud Forming Machine ISO CE

metal spandrel stud forming machine

4" stud forming machine

6" stud roll former

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Metal Spandrel 4" 6" Di Filipina

Jenis:

Mesin pembuat gulungan potong tanpa henti

Dimensi (P*L*T):

7500*1300*1550mm

Ketipisan bergulir:

0.3-0.8mm

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Berat:

3000kg

Bingkai utama:

Baja 400H

Sistem Pengendalian:

PLC (merek impor)

Menyoroti:

metal spandrel stud forming machine

4" stud forming machine

6" stud roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

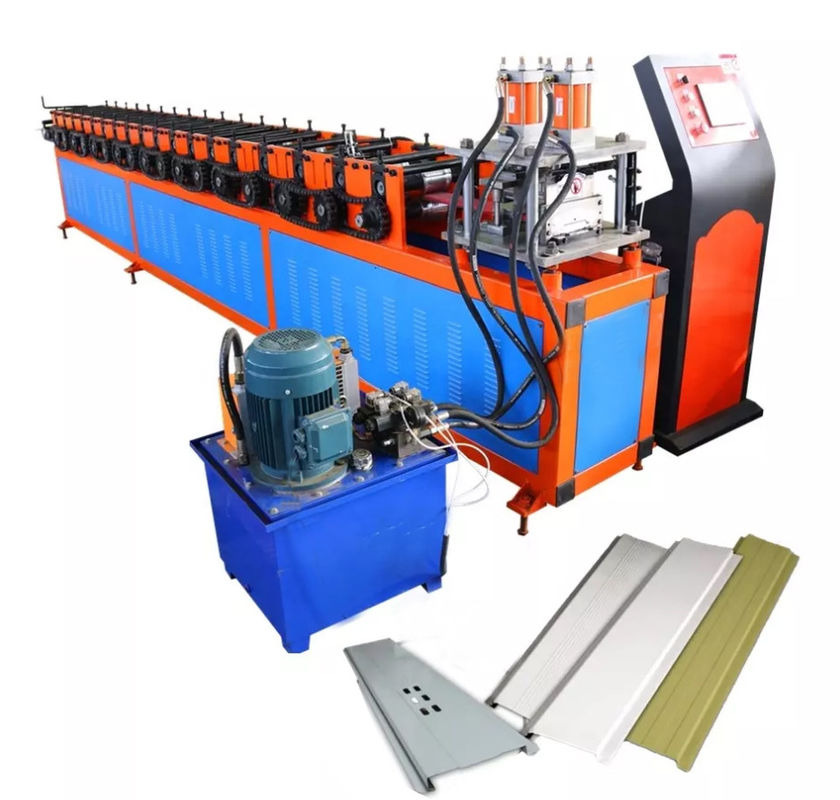

Metal Spandrel 4" 6" Forming Machine In The Philippines

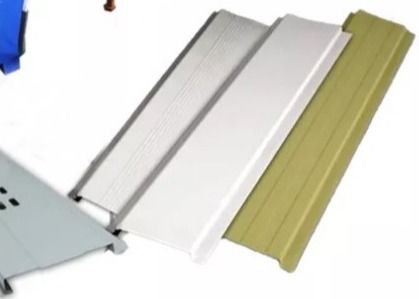

Metal Spandrel 4" 6" Forming Machine In The Philippines.Metal Spandrel 4" 6" forming machine has different types and widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product .The finished goods Spandrel roof is made from pre painted metal sheet or pvc materials.Spandrel has a functional beauty for a perfect finish on eaves, ceilings & overhangs.

This PLAIN SPANDREL roof is made from premium Superlume, a steel substrate coated on both sides with an Aluminum-Zinc alloy. This is manufactured using state-of-the-art Non-Oxidizing Furnace technology. The composition of the coating alloy is: 55% Aluminum 43.4% Zinc 1.6 % Silicon

This unique coating will translate to significant cost savings for any user of products made from Superlume because the coating alloy will protect the steel against corrosive environments for years. The excellent corrosion resistance of Superlume is a result of combined protection of the barrier effect of Aluminum and the sacrificial or galvanic protection of Zinc on the surface of the steel.

The advantage of decorative clip roof panel roll forming machine with the new flush wall / soffit / underdeck profile
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

3.It has advantage of pretty appearance, durable using and so on.

Specification

No.	Metal Spandrel 4" 6" Forming Machine In The Philippines
1	Suitable to process	Color alu-zinc steel coil/Aluminium Coil
2	Roller	16Rows
3	Dimensions	7.01.31.55m
4	Motor Power	7.5Kw
5	Pump Station Motor	5.5Kw.Lichao Brand
6	Thickness of the plate	0.6-1.2mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ80mm
10	Weight	About 4800kgs
11	Main structure of the machine	400H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	18mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
