Drywall Profile Light Gauge Steel Machine Hydraulic Cutting

drywall profile light gauge steel machine

hydraulic cutting light gauge steel machine

hydraulic cutting drywall roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Profil Drywall Stud Track Mesin Roll Forming Mesin Baja Pengukur Ringan

Bahan poros:

45# baja

Motor:

4KW

Jenis pemotongan:

Pemotongan hidrolik

Spesifikasi:

8*1.5*1.3m

Kecepatan:

0-25 m/mnt

Bahan roller:

CR12

Menyoroti:

drywall profile light gauge steel machine

hydraulic cutting light gauge steel machine

hydraulic cutting drywall roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

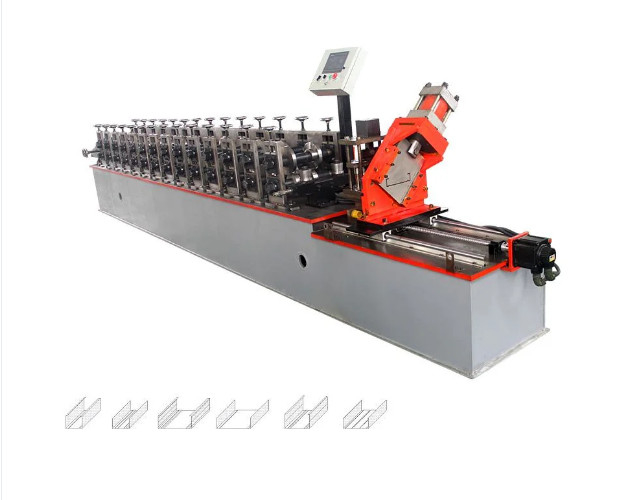

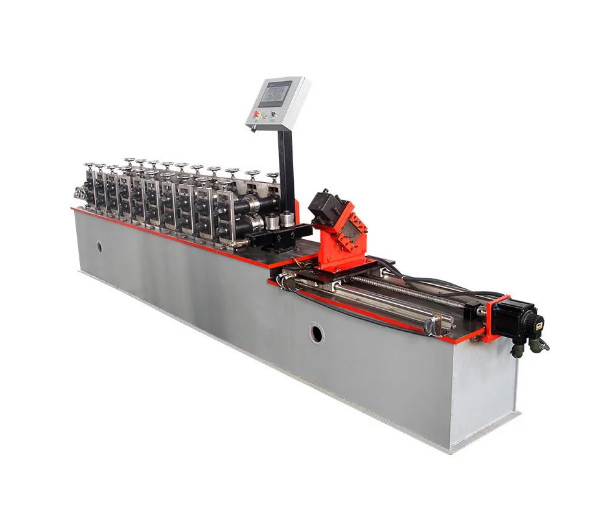

Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine

Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine.This machine has 12 forming steps,and the roller's material is CR12 with quenching,the shaft material is 45# Steel,and the diameter is 40mm.
The transmission of this machine is gear transmission and it will control by PLC.

The cutting system is hydraulic tracking cutting system,it is non-stop cutting,so that it can save the cutting time,and improve the production speed.
The cutter material is CR12 MOV,the hardness of this material is higher and it is suitable for use as the cutter mold.
There is one oil pump connect the cutter,it will provide the power for the cutter.

This machine control by PLC,it can automatically measure the length of the product and the quantity of production, the operation is simple, workers only need to input the length and quantity of production, the machine can work automatically.

Specification

Main Forming machine	Forming steps	12steps
	Shaft diameter	40mm
	Machine stand	Individual Arch Plate
	Machine frame	steel plate welded
	roller material	Cr12
	shaft material	45# steel with quenching and tempering
	Work speed	0-25m/min
	Transport	By gear
	Power of main machine	4kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	201.51.2m
	Machine weight	About 3.5T
	Machine color	Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

Drywall Profile Light Gauge Steel Machine Hydraulic Cutting 0
