C / U Truss Stud And Track Roll Forming Machine Pl Gl

truss stud and track roll forming machine

pl stud and track roll forming machine

gl c stud roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming C/U Truss (Model TR-FL) Mesin Stud Dan Track Logam

Bahan mentah:

PL,GL,PPGL,PPGI

Voltase:

5,5 kW

Nilai jual utama:

Mudah dioperasikan

Berat:

3250kg

Kapasitas Produksi:

25-30 m/mnt

Dimensi (P*L*T):

Sekitar 4,8*0,8*1,2 m (L*W*H)

Menyoroti:

truss stud and track roll forming machine

pl stud and track roll forming machine

gl c stud roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

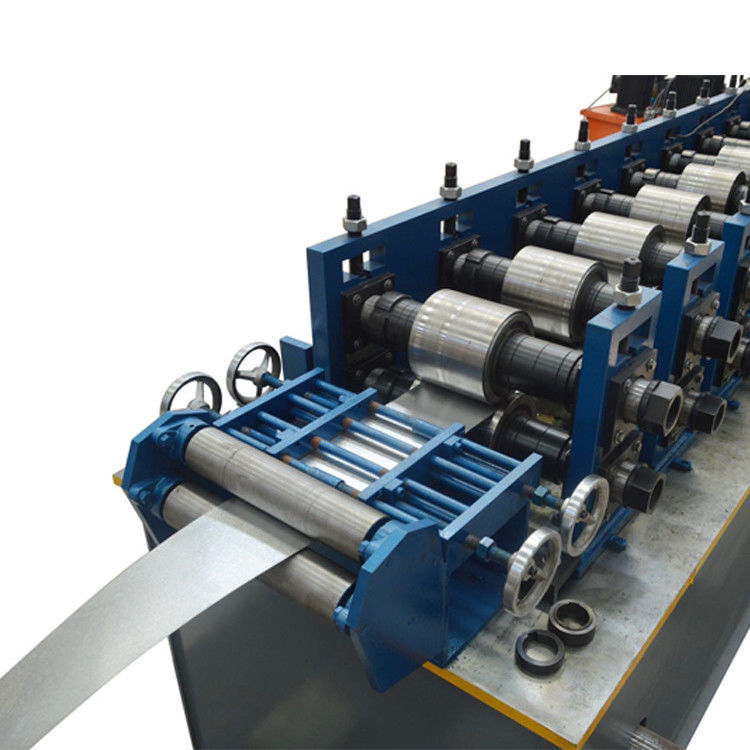

C/U Truss Roll Forming Machine (Model TR-FL) Metal Stud And Track Machine

C/U Truss Roll Forming Machine (Model TR-FL) Metal Stud And Track Machine.In the overall frame of the fuselage we used the gb 360 heavy i-beam, the fuselage stable, long life, no sag of the fuselage. The machine is equipped with double bearings to ensure the quality of the products. Even if one of them is broken, there is another bearing to ensure the operation. Our products are inspected by professional machines and quality inspection teams,They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. ...

Specification

Name	Metal Stud And Track C Purlin Channel Roll Forming Machine
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	According to your actual drawing.
Electric Power	380V, 50 Hz, 3 phase or according to your need.
Dimension	About 4.80.81.2 m(LWH), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
