Galvanised Steel Metal Stud Roll Former For Light Construction Use

light construction use stud roll former

galvanised steel stud roll former

drywall stud and track forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Metal Stud Dan Track Forming Untuk Penggunaan Konstruksi Ringan

Jenis:

Mesin pembuat gulungan potong tanpa henti

Jenis ubin:

Baja galvanis

Menggunakan:

drywall

Kapasitas Produksi:

45m/mnt

Berat:

3000kg

Motor utama:

4KW

Sistem Pengendalian:

PCL

Menyoroti:

light construction use stud roll former

galvanised steel stud roll former

drywall stud and track forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

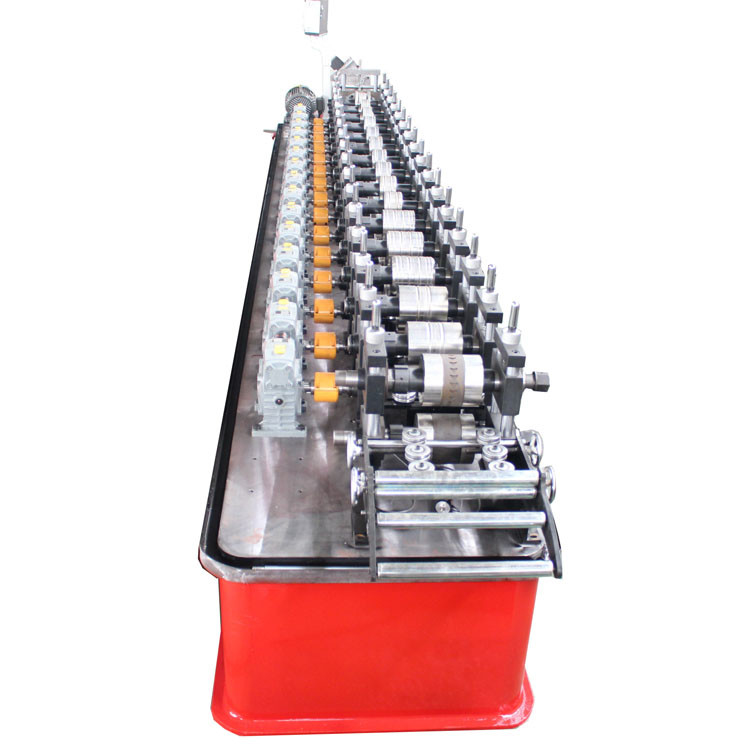

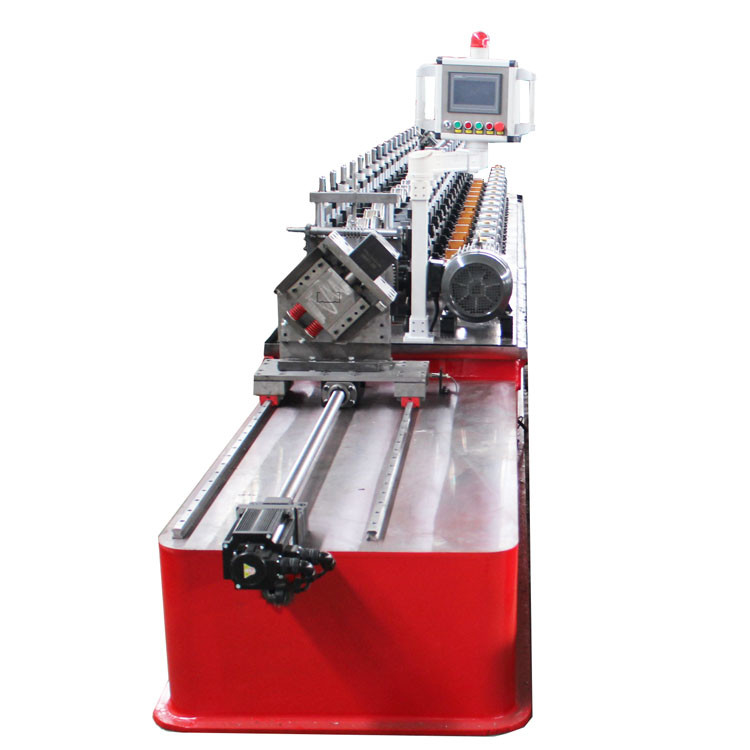

Metal Stud And Track Forming Machine For Light Construction Use

Metal Stud and Track Forming Machine for Light construction use. Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction work.This is Automatic Portable Steel Stud And Track Roll Forming Machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .

Specification

1	Raw Material	Type	Galvanised Steel
		Thickness	0.3-0.6mm
		Yield Strength	235Mpa to 350Mpa
2	Decoiler	Operation	Manual/ Hydraulic for option
2	Decoiler	Weight Capacity	5Tons
3	Main Body	Roller Station	12 rows
		Diameter of Shaft	50-60mm
		Material of Rollers	Cr12
		Material of shaft	45# steel with chrome 0.05mm
		Transmission	Gear
4	Cutter	Operate	Automatic Hydraulic / Electric type
4	Cutter	Blade material	Cr12MOV
5	Power	Pump motor for cutter	4KW
		Main Motor	5.5KW
		Voltage	380V 50Hz 3 Phase
6	Control system	Electric Box	PLC control system , Inverter
6	Control system	Language	English / Chinese
7	Speed	30-50M/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
