Name: Highspeed Automatic Forming Machine Furring Omega Channel Making Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Akhir
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Highspeed Automatic Forming Machine Furring Omega Channel Making Plc Control

plc control automatic forming machine

furring omega channel automatic forming machine

plc light keel roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Akhir

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Saluran Omega Furring Berkecepatan Tinggi Otomatis Kontrol PCL

Bahan mentah:

PL,GL,PPGL,PPGI

Rangka bodi mesin:

Gapura

Bahan roller:

CR12

Jumlah langkah pembentukan:

12 langkah dengan 2 poros perata

Diameter poros:

40mm

Motor utama:

4KW

Kecepatan:

25 m/mnt

Menyoroti:

plc control automatic forming machine

furring omega channel automatic forming machine

plc light keel roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

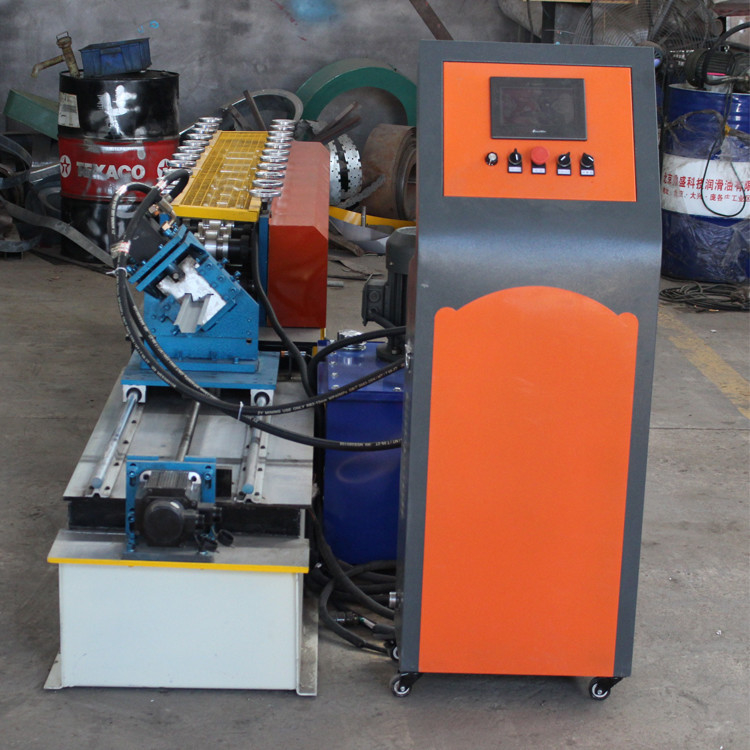

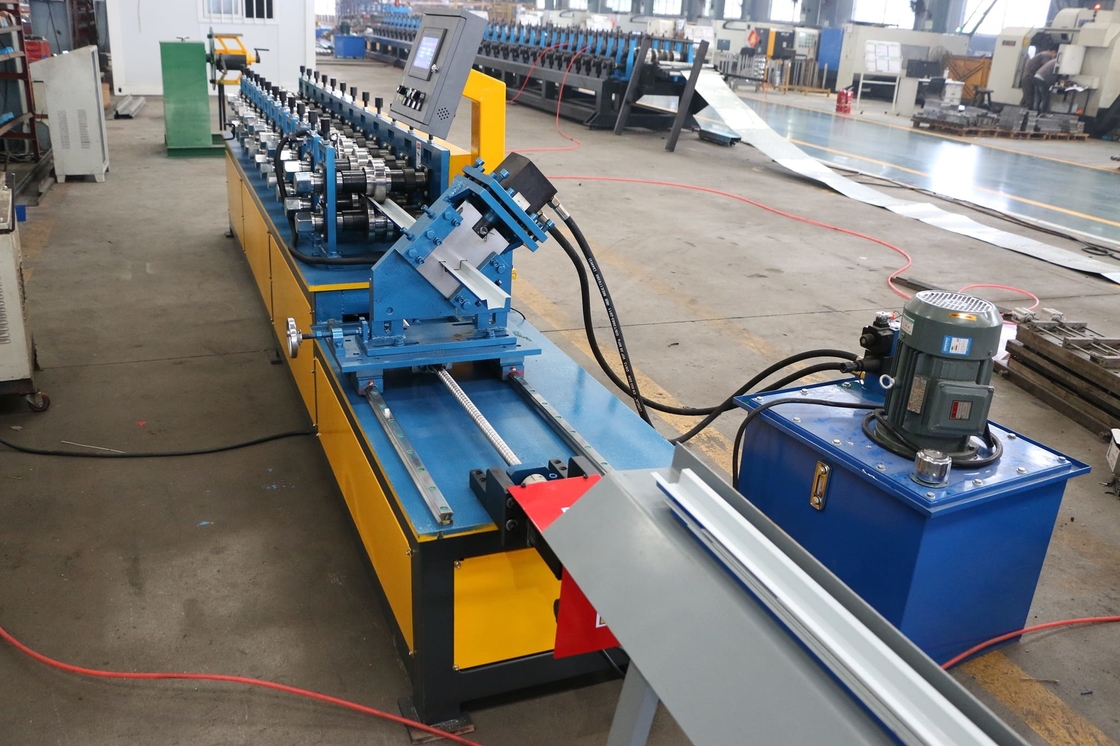

Automatic Highspeed Furring Omega Channel Making Forming Machine PCL Control

Omega in one roll forming machine, It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency.

Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so Omega shaped steel is widely used in real life.

Specification

No.	Item	Description
1	Core Components	Motor, Engine, PLC
2	Shaft material	45#steel hardening and tempering
3	Cutting Mode	Hydraulic Cutting
4	Cutter Material	Cr12
5	Cutting length tolerance	±1mm
6	Production Capacity	0-50m/min
7	Dimension(LWH)	110008001600Mm
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 50HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
