Ppgi Metal Door Frame Roll Forming Machine Fully Automatic 15m/Min

ppgi metal door frame roll forming machine

15m/min metal door frame roll forming machine

ppgi door frame roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Kusen Pintu Logam Sepenuhnya Otomatis

Bahan mentah:

PL,GL,PPGL,PPGI

Kecepatan kerja:

15m/mnt

Dimensi (P*L*T):

6000*1000*1050mm

Ketipisan bergulir:

1 mm

Pengiriman:

30 hari kerja

Kekuatan utama:

5,5 kW

Bahan rol:

45# baja

Menyoroti:

ppgi metal door frame roll forming machine

15m/min metal door frame roll forming machine

ppgi door frame roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

25 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

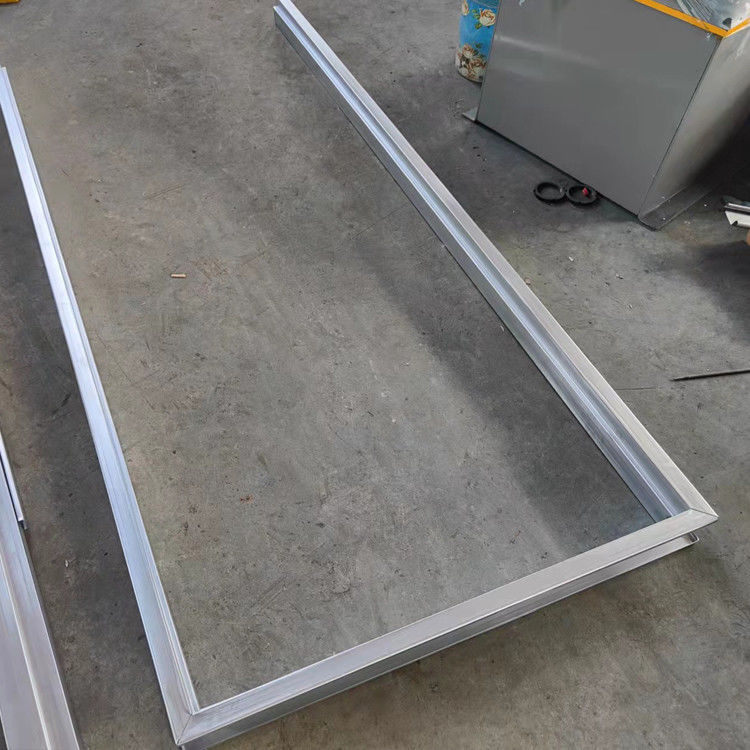

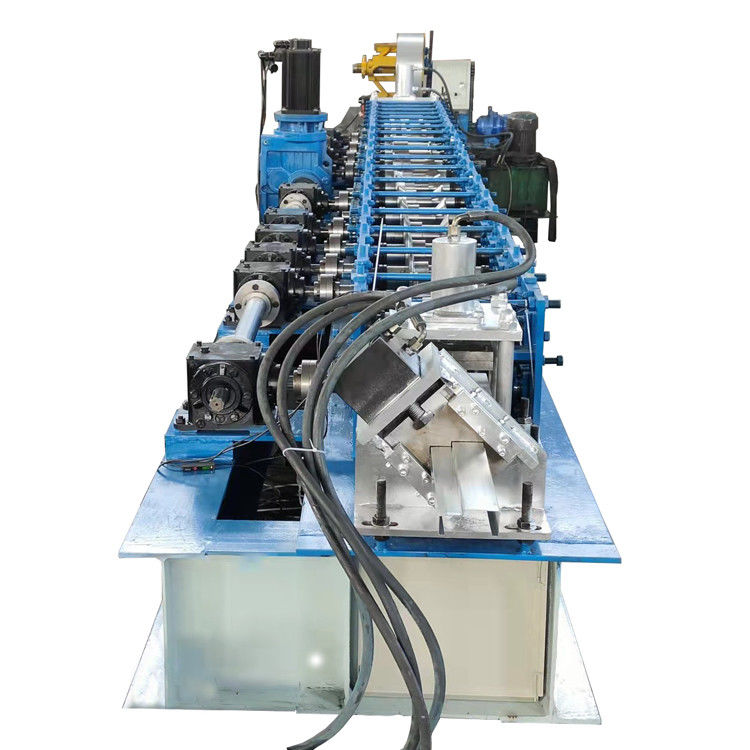

Metal Door Frame Roll Forming Machine Fully Automatic

In Door Frame Roll Forming Machine, we have many types like drywall interlock type, welded type with corner v bending and others. For the door frame machine, we could make fully automatic like punching holes and bending, all could be done fully automatic

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Material Thickness	0.6-1.0 mm
3	Working Speed	8-15m/min
4	Roller Station	13 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	5500 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
