Light Steel Keel Drywall 3P U Channel Roll Forming Machine High Speed Touchable

3p u channel roll forming machine

touchable u channel roll forming machine

3p drywall roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Saluran U Dinding Kering Keel Baja Ringan Berkecepatan Tinggi Untuk Mesir

Bahan roller:

Kr 12

Lebar makan:

Sebagai pelanggan membutuhkan gambar produk

Berat:

1500 kg

Voltase:

380V 50HZ 3P atau Sesuaikan sesuai permintaan pelanggan

Nilai jual utama:

Mudah dioperasikan

Jaminan:

1 tahun

Warna mesin:

Sebagai kebutuhan pelanggan

Ketipisan bergulir:

0,3-0,8 mm

Menyoroti:

3p u channel roll forming machine

touchable u channel roll forming machine

3p drywall roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

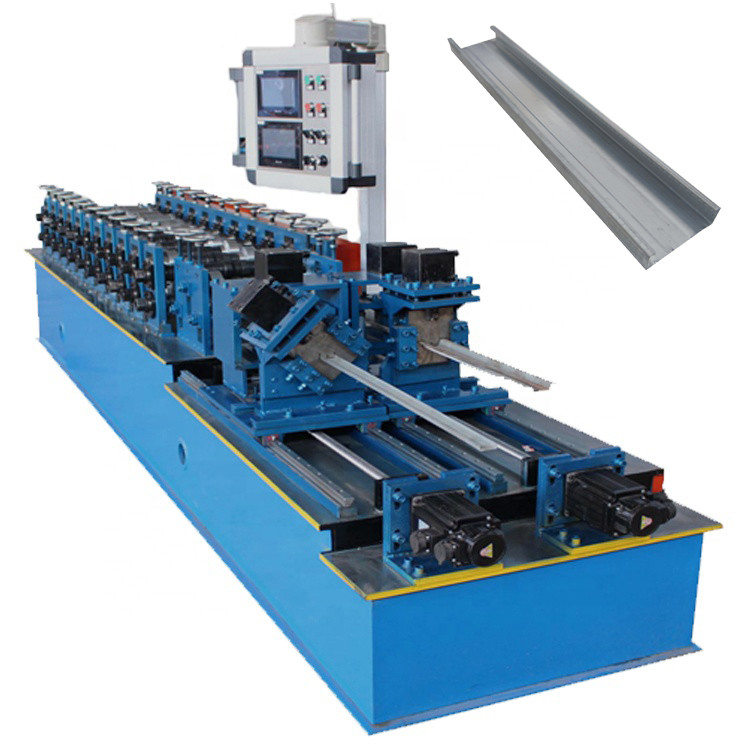

High Speed Light Steel Keel Dry Wall U Channel Roll Forming Machine For Egypt

This wall stud roll forming machine produces multi-profiles and size-changing by the spacer. In fact, it is multi size wall stud and tracks machine for multi-profiles,size-changing by the spacer.There is an enlarged hydraulic station to ensure high-speed working. Easy operation, low maintenance cost

Equipment Detailed Parameters:

NO.	Item	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.3-0.8 mm
Machine	Roller station	9
	Shaft diameter	55 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 4.20.81 m
	Machine weight	About 1.5 tons
	Machine color	As customer need
	Working speed	30-50 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
	Weight capacity	3 Tons
	Price	Free as gift
