Waterproof Chain Driving 50hz Stud And Track Roll Forming Machine High Strength

waterproof stud and track roll forming machine

50hz stud and track roll forming machine

high strength stud roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Stud Dan Track Tahan Air Kekuatan Tinggi

Dimensi (P*L*T):

4,5*0,8*1 m

Bahan roller:

Kr 12

Lebar makan:

Sebagai pelanggan membutuhkan gambar produk

Berat:

1500 kg

Voltase:

380V 50HZ 3P atau Sesuaikan sesuai permintaan pelanggan

Nilai jual utama:

Mudah dioperasikan

Jaminan:

1 tahun

Menyoroti:

waterproof stud and track roll forming machine

50hz stud and track roll forming machine

high strength stud roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

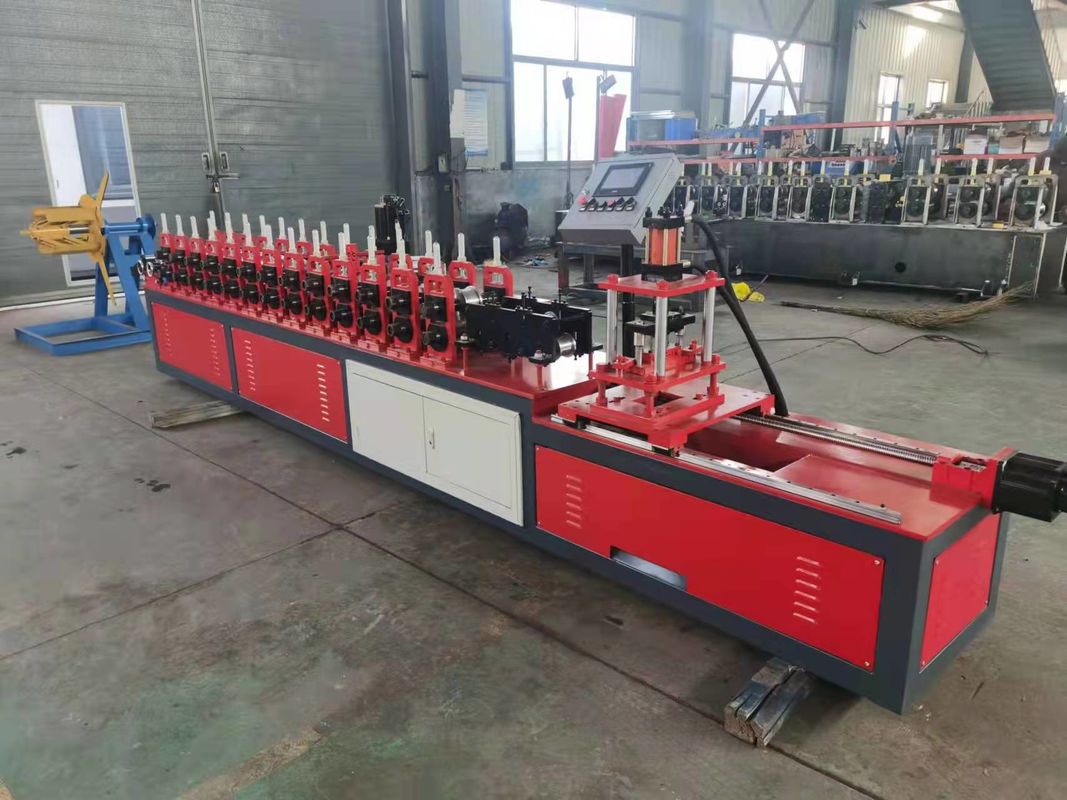

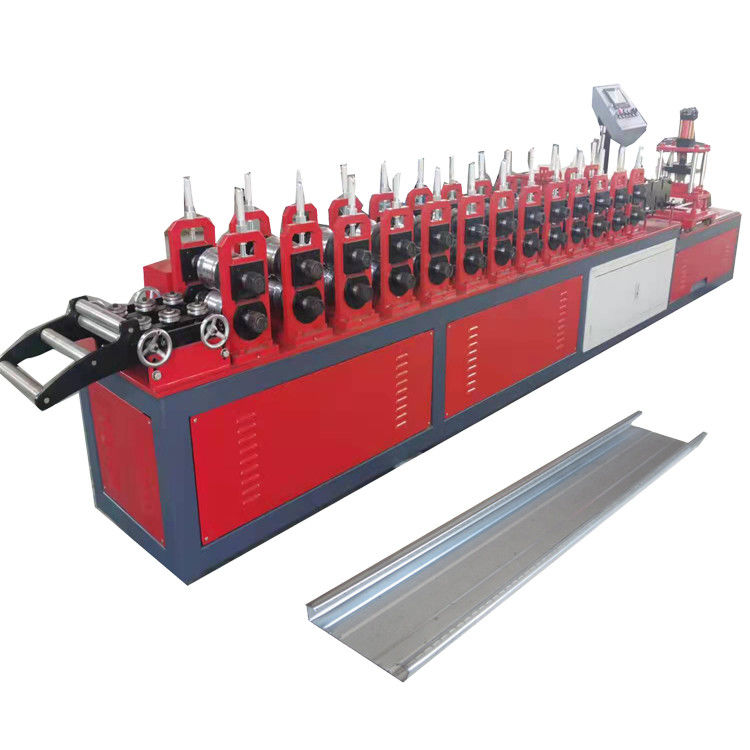

Waterproof Stud And Track Roll Forming Machine High Strength

Stud and Track Roll forming line is widely utilised for the automotive industry, mechanical tube, structural tube, water, gas and oil industry.

Samco is the world’s leader in manufacturing industrial level steel Stud and Track rollforming lines with a proven track record.

Equipment Detailed Parameters:

NO.	Item	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.3-0.8 mm
Machine	Roller station	9
	Shaft diameter	55 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 4.20.81 m
	Machine weight	About 1.5 tons
	Machine color	As customer need
	Working speed	30-50 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer' request
