Name: Simple Sheet PPGI Metal Cut To Length Machine Automatic 15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: garis potong
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Simple Sheet PPGI Metal Cut To Length Machine Automatic 15m/Min

ppgi metal cut to length machine

15m/min metal cut to length machine

ppgi automatic cut to length machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO, CE

Nomor model:

garis potong

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lembaran Logam Sederhana Dipotong Memanjang Mesin Otomatis

Bahan pemotongan:

Galvalum, Galvanis, PPGI, Aluminium

Ketipisan bergulir:

0,3 mm -8 mm

Kapasitas Produksi:

8-15m/mnt

Garansi komponen inti:

1 tahun

Bahan poros utama::

Pemesinan finishing baja 45# dan kemudian kendur

Tenaga Motorik:

3kw

Daya Stasiun Hidrolik:

3kw

Menyoroti:

ppgi metal cut to length machine

15m/min metal cut to length machine

ppgi automatic cut to length machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Tetapkan Lini Produksi

Harga

negotiable

Kemasan rincian

2 buah FLC 40'

Waktu pengiriman

60 hari kerja

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

5 set per 60 hari

Produk terkait

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

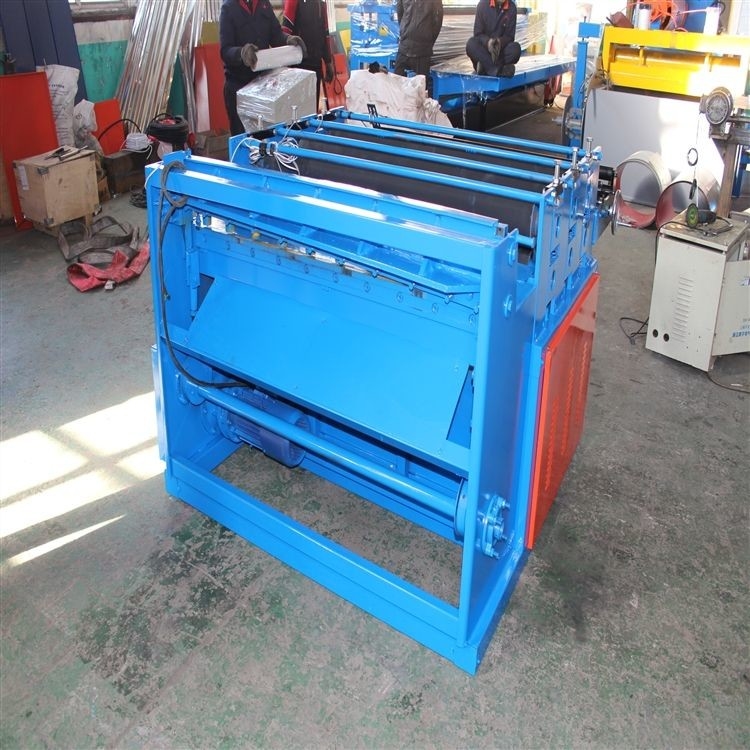

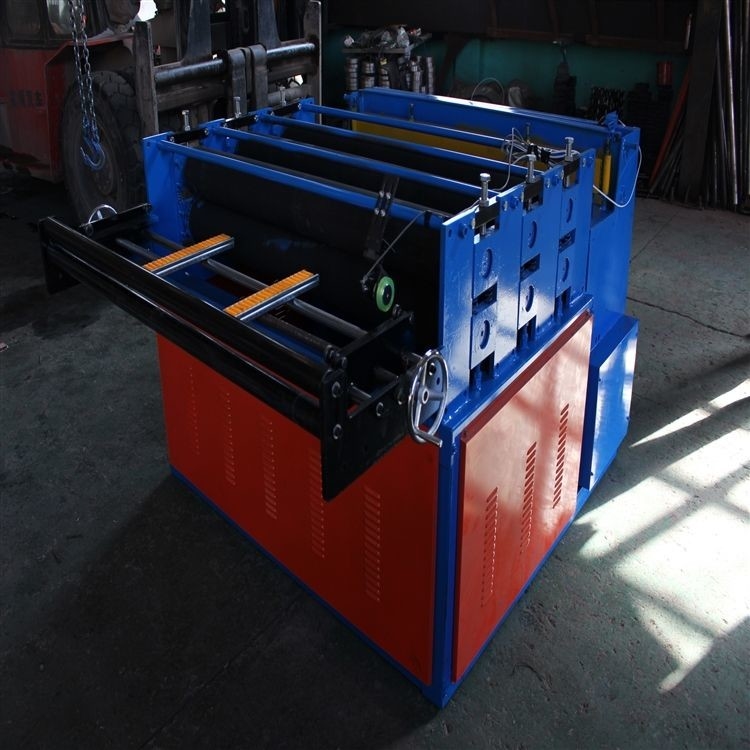

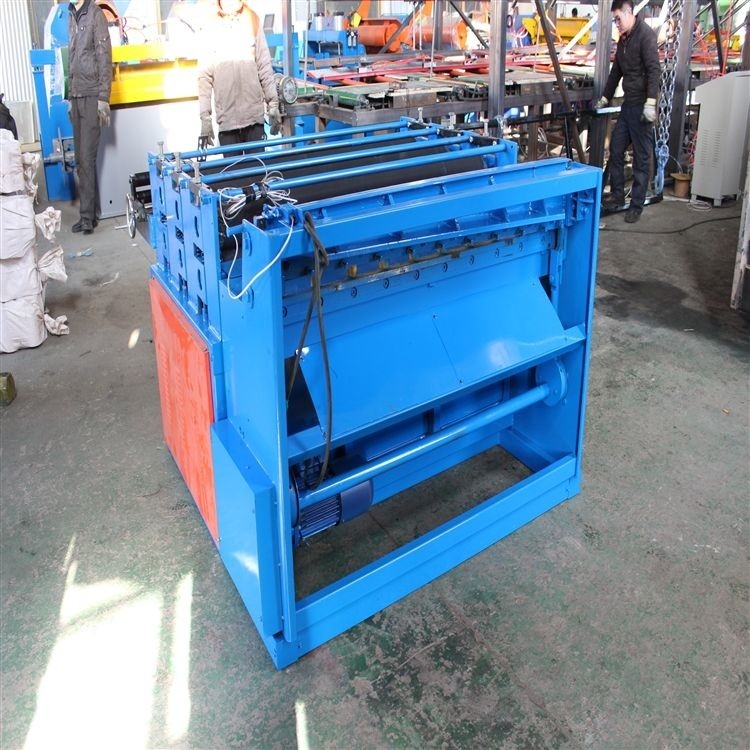

Simple Metal Sheet Cut To Length Machine Automatic

The slitting production line consists of three main parts: decoiler, slitter and rewinder. The material is fed from the uncoiler through the nip between the two circular cutting wheels (one at the top and the other below), and then re-wound in the slit covering on the recoiler. The equipment supplier and the end user must work together, so the appropriate components, shank size, tool kit, horsepower and tension are suitable for the material to be cut.

Specifications

Material Thickness	0.3-0.8 mm
Working Speed	8-15m/min
Roller Stations	3 stations
Material of Roller	rubber
Material of Main Shaft	45 steel forged
Main Motor Power	3 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Advantage

Our split line is to maintain high accuracy while allowing instant changes. Large-capacity coilers and full control of machinery, using the most advanced technology to supervise quality control and automation, we provide production lines on time and on budget!
