Band Saw Sandwich Panel CE Automatic Cut To Length Machine

sandwich panel cut to length machine

bandsaw automatic cut to length machine

2.2kw automatic cut to length machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Dimensi (P*L*T):

3800mm*1000mm*1560mm

Jenis pemasaran:

Produk Panas 2021

Garansi komponen inti:

2 Tahun

Ukuran tabung persegi:

160*80*5mm

jumlah silinder:

7pcs

ukuran roda gergaji pita:

dia. 400mm

Pengubah frekuensi:

2.2KW

Daya Motor::

4KW*1+0,75KW*1+1,1KW*1

Menyoroti:

sandwich panel cut to length machine

bandsaw automatic cut to length machine

2.2kw automatic cut to length machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

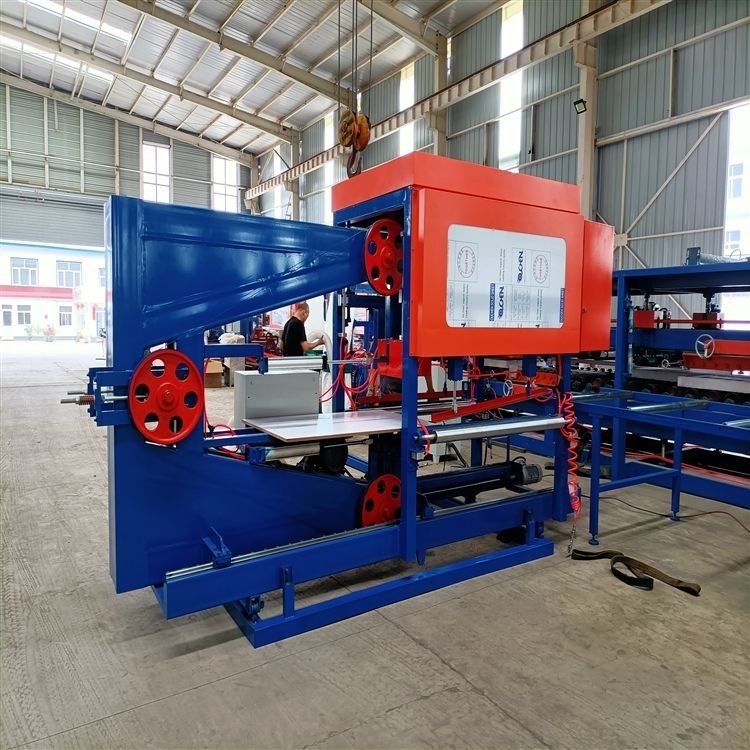

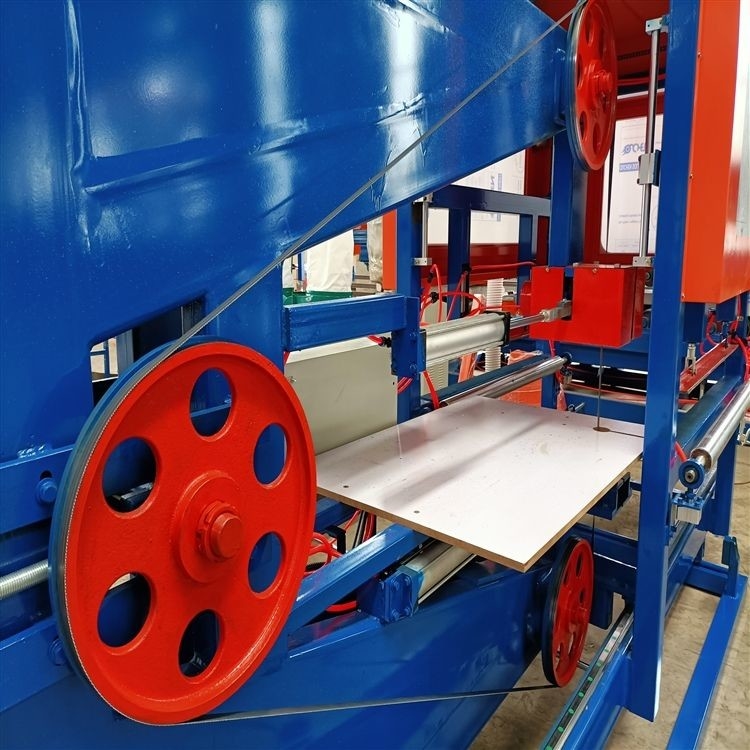

Band Saw Cutting Machine to cut sandwich panel to length

This equipment adopts advanced production technology,Band Saw Cutting Machine To Cut Sandwich Panel To Length.

It is a special mechanical equipment for processing color steel heat-insulating composite panels. which can produce composite panels at one time. Machine, forming machine, compound machine (crimping, glue spraying, heating, bonding, crimping, slotting, trimming, cutting) are necessary equipment for the production of roofs and wall panels in industrial plants, warehouses, etc.

Working Speed	as per request
Feeding width	1000mm
band saw wheel diameter	400mm
machine size	3500mm1000mm1560mm
chain	5"
Main Motor Power	5.76 KW
cylinder	7PCS
motor	3pcs
Material of Cutter	band saw
Driving Mode	Single chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.

FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.
