Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles

Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles

1.4mm steel roll forming machine

ppgi profiles steel roll forming machine

1.4mm profile roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Baja Pengukur Cahaya

Hubungi Kami
Minta Penawaran Harga
Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles
Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles
Detail Produk
Nama Produk:
Mesin Roll Forming Baja Pengukur Cahaya Ganda Membuat Profil Drywall
Bahan mentah:
PL,GL,PPGL,PPGI
Kecepatan kerja:
15-20m / mnt
Ketebalan material:
0,3 mm - 1,4 mm
Berat:
5 ton
Pengiriman:
30 hari kerja
Menyoroti:

1.4mm steel roll forming machine

,

ppgi profiles steel roll forming machine

,

1.4mm profile roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
25 set per bulan
Produk terkait
Harga bagus Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine on line Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House on line

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik
Harga bagus Roller Fixer Guide Column CU stud for Long-lasting Roofing on line

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik
Harga bagus Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control on line

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

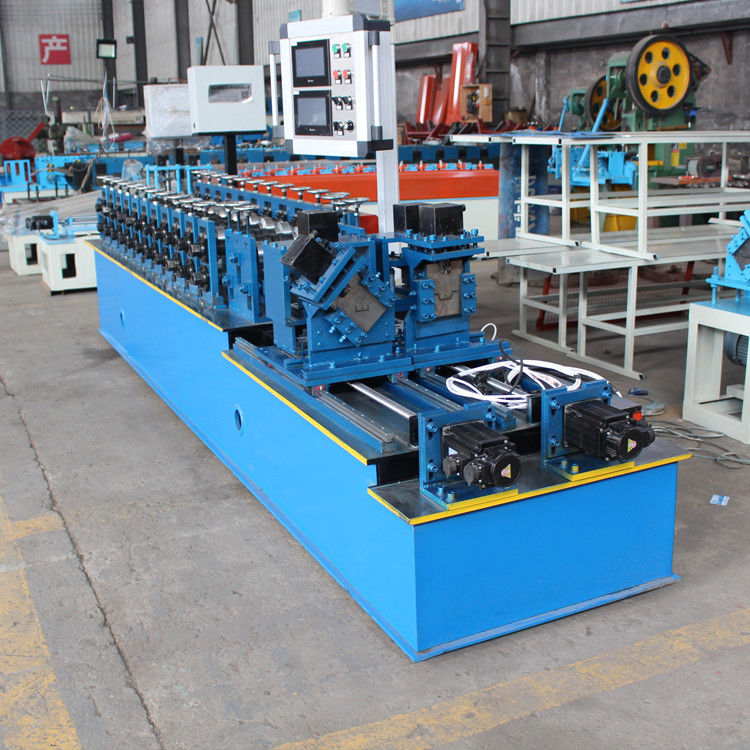

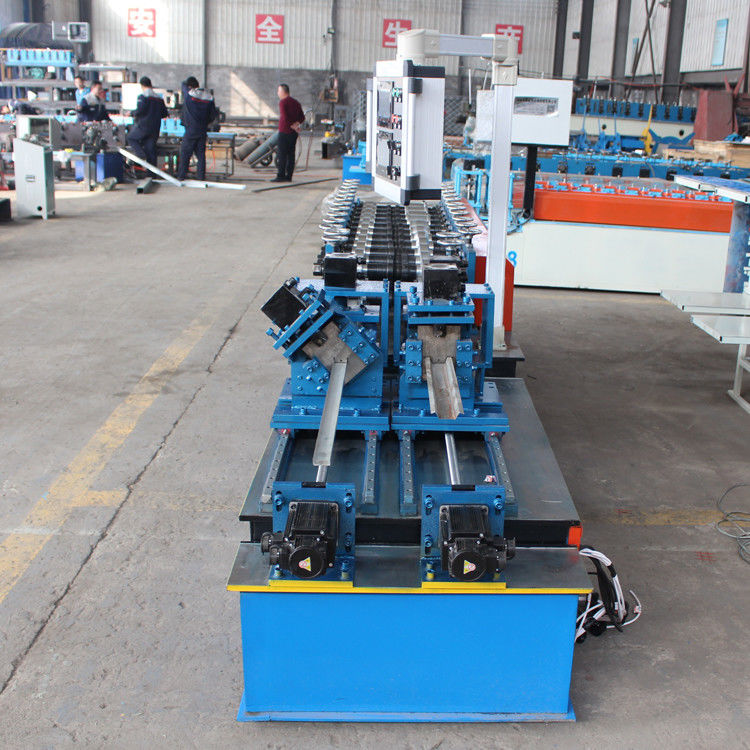

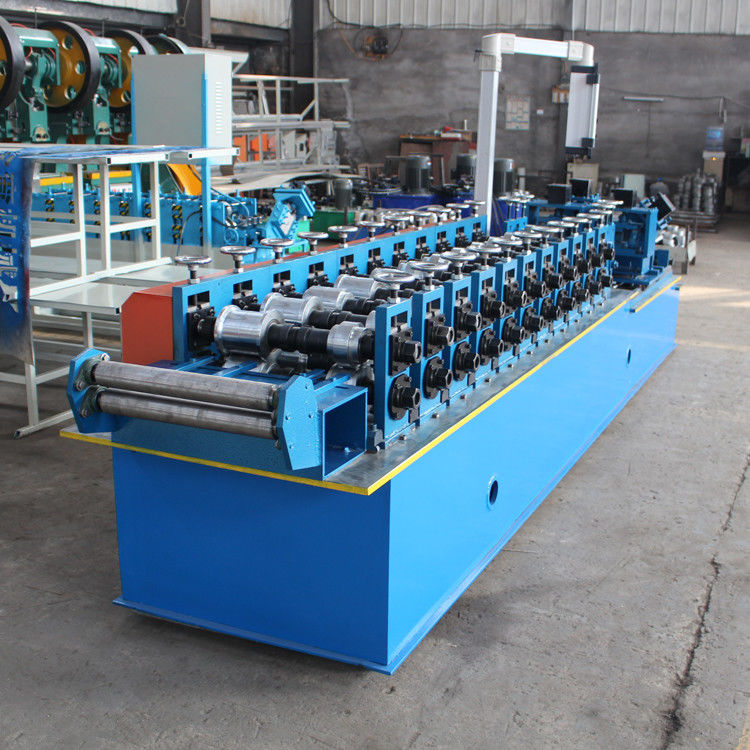

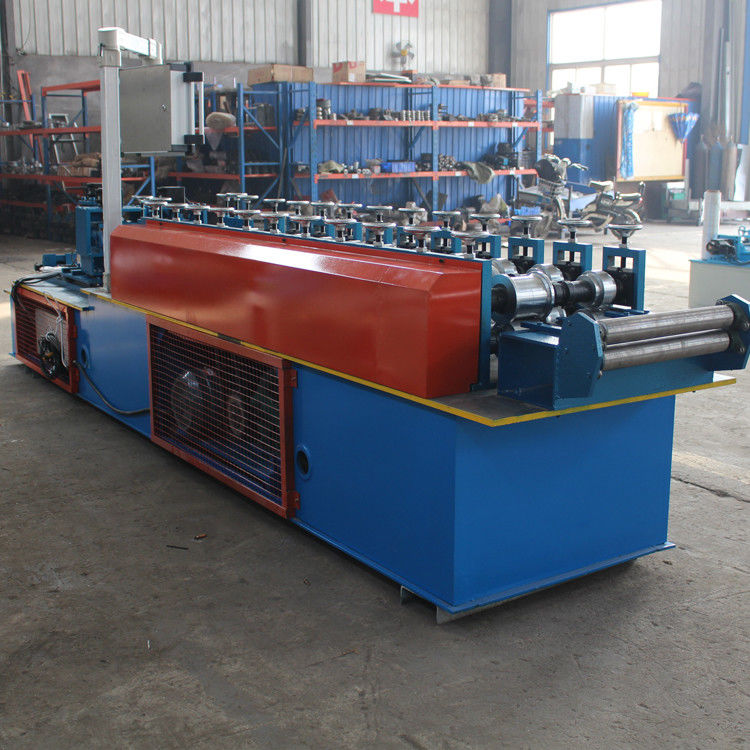

Double Out Light Gauge Steel Roll Forming Machine Make Drywall Profiles





double out light guage steel roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately Due to it has independent control system so two lines working at the same time .





Specification



No. Item Description
1 Coil PL,GL,PPGL,PPGI
2 Raw Material Thickness 0.3-1.5mm
3 Working Speed 16-20m/min
4 Roller Station 13 Raws
5

Dimension (L*W*H)

 6000 mm*1500 mm*1500 mm
6 Machine Weight 5500 KG
7

Electrical Control System

PLC (can be customized)
8

Drive Motor Power

 7.5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

380V, 60HZ, 3 PHASES
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Because light steel construction has the characteristics of quick disassembly and assembly, saving time and effort, light weight, long service life, good stability, convenient transportation, multiple disassembly and assembly, beautiful appearance, strong structure, etc., it is widely used in daily life..



Advantage



Cangzhou FMS has a long history in producing Roll forming machine. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou FMS has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.







Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles 0
