Name: Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dipotong menjadi garis panjang
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine

0.3mm steel coil slitting machine

0.3mm metal coil slitting machine

PPGI steel coil slitting machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO, CE

Nomor model:

dipotong menjadi garis panjang

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pemotong Kumparan Baja Lebar Dapat Disesuaikan Otomatis

Bahan pemotongan:

Galvalum, Galvanis, PPGI, Aluminium

Ketebalan material:

0,3 mm -3 mm

Kecepatan kerja:

20 m / mnt - 80 m / mnt (dapat disesuaikan)

Berat kumparan:

5 ton / 7 ton / 10 ton (dapat disesuaikan)

Menggorok Buah:

2 - 18 buah

Berat mesin:

15.000 kg

Pemotongan Lebar Presisi:

± 0,01 - ± 0,05mm

Menyoroti:

0.3mm steel coil slitting machine

0.3mm metal coil slitting machine

PPGI steel coil slitting machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Tetapkan Lini Produksi

Harga

negotiable

Kemasan rincian

1 buah FLC 40'

Waktu pengiriman

60 hari kerja

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

20 Set Bulanan

Produk terkait

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

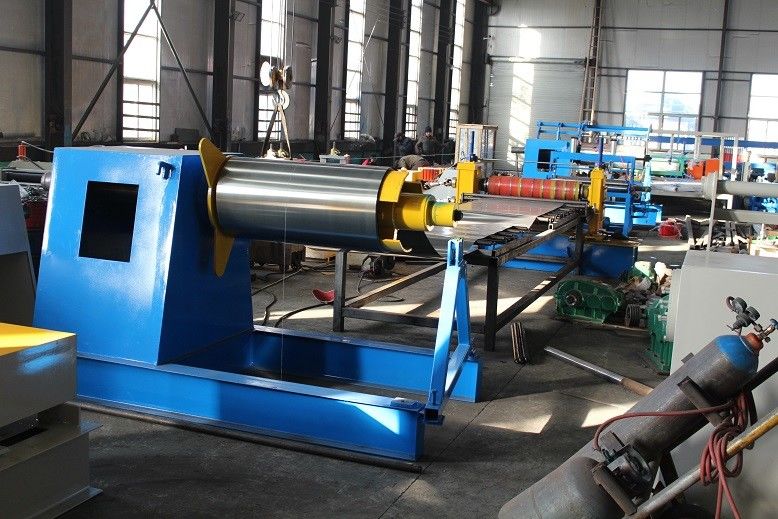

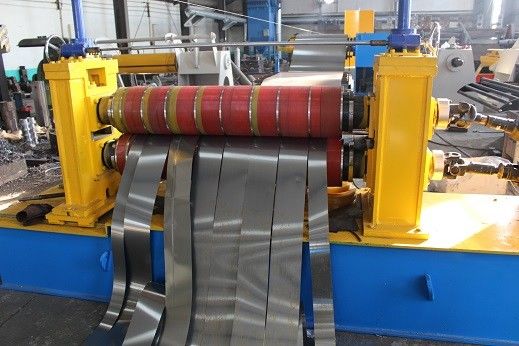

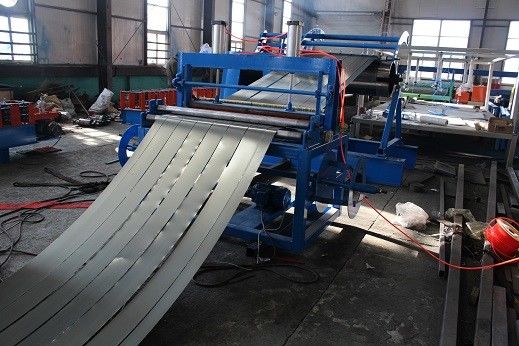

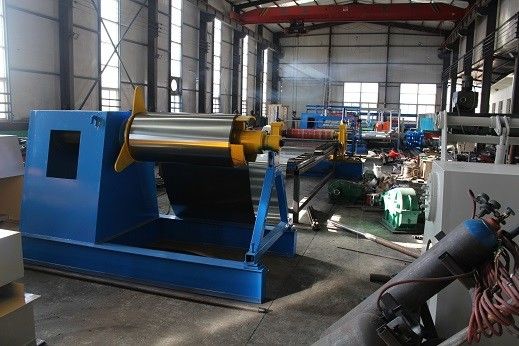

Automatic Adjustable Width Steel Coil Slitting Machine

Automatic Adjustable Width Steel Coil Slitting Machine is used for uncoiling, slitting, and winding the metal coil into a coil with the required width. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.

No.	Item	Description
1	Raw Material	Galvanized, Aluminum,Color steel
2	Raw Material Thickness	0.3 mm - 3.0 mm
3	Raw Material Width	600 mm - 1600 mm
4	Tape Inner Diameter	φ 480 mm - φ 530 mm
5	Tape Outer Diameter	φ 1600 mm
6	Coil Weight	5 tons - 10 tons
7	The Highest Slitting LineSpeed	20 m/min - 100 m/min
8	Cutting Width Precision	± 0.01 - ± 0.05 mm
9	Rated Operational Voltage	240 V, 3 Phase, 60 Hz
10	Total Weight	13000 KG
11	Working Space(L*W)	20000 mm*6000 mm

Application

It is suitable for longitudinal shearing of metal strips and rewinding the slitted narrow strips into rolls. It is widely used in transformers, motors, home appliances, automobiles, building materials, packaging industries, etc.

Advantage

It is composed of uncoiling (unwinding), leading positioning, slitting and slitting, coiling (rewinding), etc. It has the characteristics of convenient operation, high cutting quality, high material utilization, and stepless speed regulation of cutting speed.

Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine 0
