Name: Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bingkai Segitiga
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine

0.3mm steel stud roll forming machine

plc steel stud roll forming machine

0.3mm steel roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Bingkai Segitiga

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Dinding Baja Dan Plafon Rangka Segitiga Stud Dan Mesin Roll Forming Track

Menggunakan:

Panel Atap Dan Dinding

Ketebalan:

0.3-0.8mm

Voltase:

380V 50Hz 3Phase

Kecepatan:

18-20m per menit

Sistem Pengendalian:

PLC

Berat:

Bubuk:

3.5kw

Menyoroti:

0.3mm steel stud roll forming machine

plc steel stud roll forming machine

0.3mm steel roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

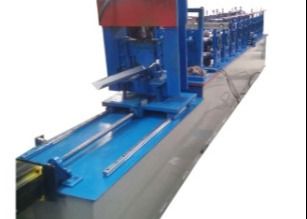

Steel Wall And Ceiling Triangle Frame Stud And Track Roll Forming Machine

Triangle keel machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles etc.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	18-20 m/min
4	Roller Station	16 Raws
5	Dimension (LWH)	6500 mm1300 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The light steel keels are widely used in hotels, stations, playgrounds, shopping malls, factories, terminals, train stations,office buildings, old building renovation, interior decoration, ceilings and other places.

Advantage

The light steel keel ceiling has the advantages of light weight, high strength, adaptability to waterproof. It also has the advantages of short construction period and simple construction.
