Name: Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Pejantan dan lacak
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

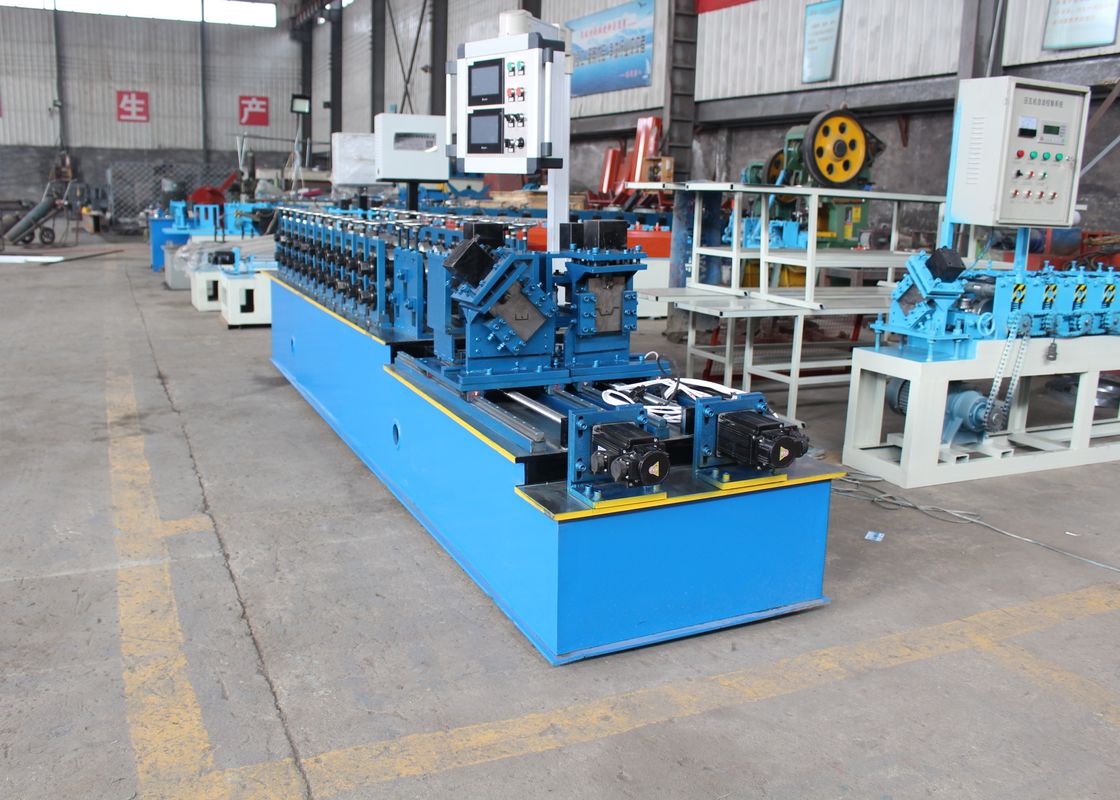

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine

0.4mm stud and track roll forming machine

0.6mm stud and track roll forming machine

Galvalume stud roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Pejantan dan lacak

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Stud Baja Ringan Dan Mesin Roll Forming Tebal 0,4-0,6mm

Dimensi (P*L*T):

6600mm*1500mm*1500mm

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

30 m/menit - 60 m/menit

Warna:

Khusus

Pengiriman:

30 hari kerja

Tenaga Motorik:

4KW

Beban kontainer:

20 kaki

Pasokan daya:

380V, 60Hz, 3Ph

Profil:

C dan kamu

Menyoroti:

0.4mm stud and track roll forming machine

0.6mm stud and track roll forming machine

Galvalume stud roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Light Steel Stud And Track Roll Forming Machine 0.4-0.6mm Thickness

Noise is actually vibration. A normal stud conducts the vibration across its web, and sound is transmitted via anything that reacts to it by vibrating. The QUIET STUD is overall bigger in surface area than a standard wall stud. Therefore, the sound (vibration) has further to travel and tends to weaken in intensity across the wall, resulting in a more acoustic efficient wall system.

Its unique design, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions.

Profile

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine 0

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.4-0.6mm
3	Working Speed	30-60 m/min
4	Roller Station	12 Raws
5	Dimension (LWH)	5800 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine 1
