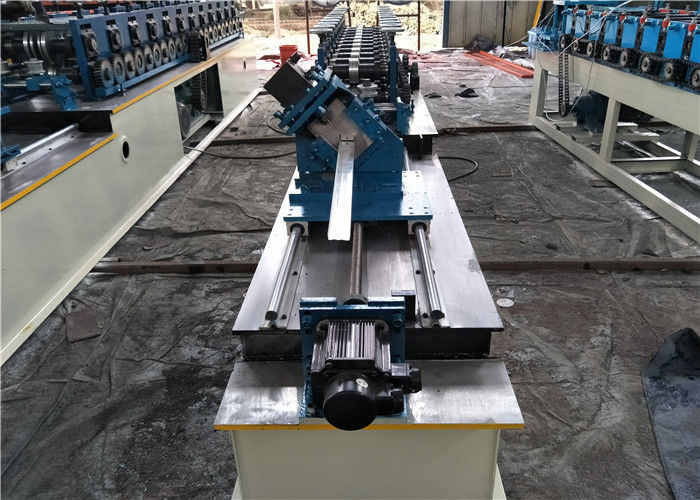

Waterproof Stud And Track Roll Forming Machine High Strength For PPGI GI AL

ridge cap roll forming machine

metal stud roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

960

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Ketebalan:

0,5-0,6 mm

Nama Produk:

Mesin Roll Forming Atap Genteng Onduladita Tipo Teja Kolonial Untuk PPGI,GI,AL

Pembentukan kecepatan:

3-4m/mnt

Lebar bahan:

1200mm

Jenis ubin:

Baja Glasir Berwarna, Baja, mesin roll forming/mesin bahan bangunan, Berwarna

PLC:

DETLA

Menyoroti:

ridge cap roll forming machine

metal stud roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Tipo Teja Colonial Onduladita Tile Roof Roll Forming Machine For PPGI,GI,AL

The raw material of the Tipo Teja Colonial Onduladita Tile Roll forming machine is PPGI,GI,AL.
Tipo Teja Colonial Onduladita roll forming machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.

Equipment Detailed Parameters:

No
1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1200mm
3	Rows of rollers	18rows
4	Appearance size	850015501200mm
5	Total power	Main motor +Hydraulic station power 7.5kw with cooling fan
6	Thickness of raw material	0.5-0.6mm
7	Productivity	3-4m/min
8	Diameter of shaft	￠70mm
9	Voltage	380V 50Hz 3phases
10	Big frame	350H steel
11	Middle plate	16mm

Waterproof Stud And Track Roll Forming Machine High Strength For PPGI GI AL 0
