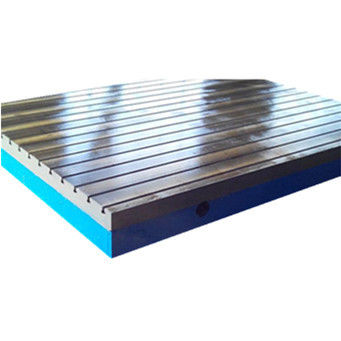

Leveling Screws T Slotted Floor Plate Good Wear Resistance Long Service Life

inspection surface plates

surface table calibration

Tempat asal:

CINA

Nama merek:

OEM

Sertifikasi:

CO, FORM-E

Hubungi Kami

Minta Penawaran Harga

Leveling Screws T Slotted Floor Plate Good Wear Resistance Long Service Life

Detail Produk

Bahan:

HT250

nama:

Pelat Lantai Berlubang T, Sekrup Perata

Jenis:

Tipe berongga

Kebosanan:

1 kelas

Ukuran:

sebagai permintaan klien

Permukaan Selesai:

bekas tangan

Menyoroti:

inspection surface plates

surface table calibration

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Kemasan rincian

Kayu

Waktu pengiriman

20 hari

Syarat-syarat pembayaran

Western Union, T/T.

Menyediakan kemampuan

10/buland

Produk terkait

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

Dapatkan Harga Terbaik

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

Dapatkan Harga Terbaik

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

Dapatkan Harga Terbaik

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

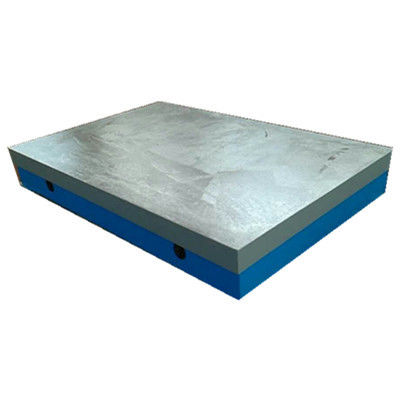

Cast Iron Machine Bed Surface Plate Table

Surface Plate suitable for stationary inspection.
Rib (bone) structure with enough wall thickness. Variations due to strain and temperature are reduced to a minimum.
For measurements greater than 500 x 500, it is bag structured with adjustment bolt and saucer.
We can also make special mounts using square pipe.

Grade Measurement (mm)	Grade 0		Grade 1		Grade 2		Mass (kg)
Grade Measurement (mm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	Mass (kg)
150×100×45	BC101	3.0	BC201	6	BC301	12	3
200×150×60	BC102	3.5	BC202	7	BC302	14	6
300×200×75	BC103	3.5	BC203	7	BC303	15	16
300×300×85	BC104	4.0	BC204	8	BC304	16	20
400×300×95	BC105	4.0	BC205	8	BC305	16	35
400×400×100	BC106	4.5	BC206	9	BC306	17	40
500×350×110	BC107	4.5	BC207	9	BC307	18	50
500×400×115	BC108	4.5	BC208	9	BC308	18	62
500×500×125	BC109	5.0	BC209	10	BC309	20	100
600×450×130	BC110	5.0	BC210	10	BC310	20	119
600×600×140	BC111	5.0	BC211	10	BC311	21	140
750×500×140	BC112	5.5	BC212	11	BC312	22	155
750×750×160	BC113	6.0	BC213	12	BC313	23	220
1000×750×190	BC114	6.5	BC214	13	BC314	26	350
1000×1000×225	BC115	7.0	BC215	14	BC315	28	590
1500×1000×250	BC116	8.0	BC216	16	BC316	33	870
2000×1000×270	BC117	9.5	BC217	19	BC317	38	1150
2000×1200×290	BC118	9.5	BC218	19	BC318	39	1600
2000×1500×320	BC119	10.0	BC219	20	BC319	40	2300
2400×1200×320	BC120	10.5	BC220	21	BC320	42	2000
3000×1500×350	BC121	12.5	BC221	25	BC321	51	3200

Leveling Screws T Slotted Floor Plate Good Wear Resistance Long Service Life 0
