Durable HT250 Surface Plate Calibration Wear Resistance With Water Channel

inspection surface plates

surface table calibration

Tempat asal:

CINA

Nama merek:

OEM

Sertifikasi:

CO, FORM-E

Hubungi Kami

Minta Penawaran Harga

Durable HT250 Surface Plate Calibration Wear Resistance With Water Channel

Detail Produk

Bahan:

HT250

nama:

Pelat Dasar Slot T Besi Cor 3000 x 6000 mm Dengan Saluran Air

Jenis:

Tipe berongga

Kebosanan:

1 kelas

Ukuran:

sebagai permintaan klien

Permukaan Selesai:

bekas tangan

Menyoroti:

inspection surface plates

surface table calibration

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Kemasan rincian

Kayu

Waktu pengiriman

20 hari

Syarat-syarat pembayaran

Western Union, T/T.

Menyediakan kemampuan

10/buland

Produk terkait

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

Dapatkan Harga Terbaik

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

Dapatkan Harga Terbaik

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

Dapatkan Harga Terbaik

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

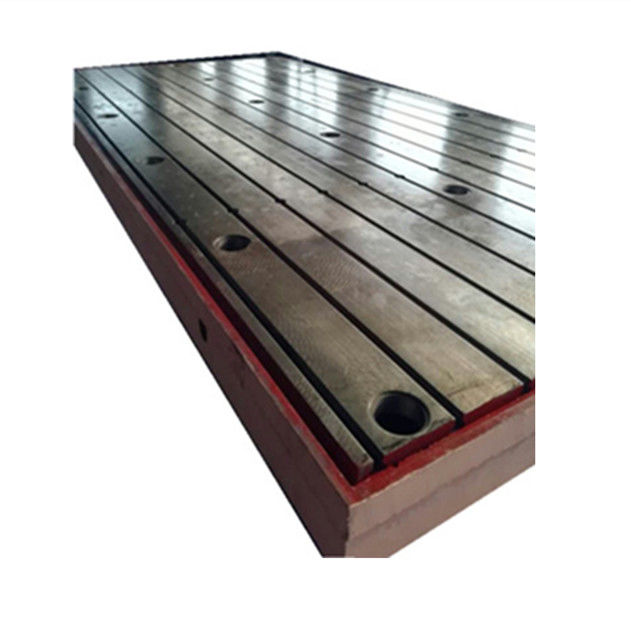

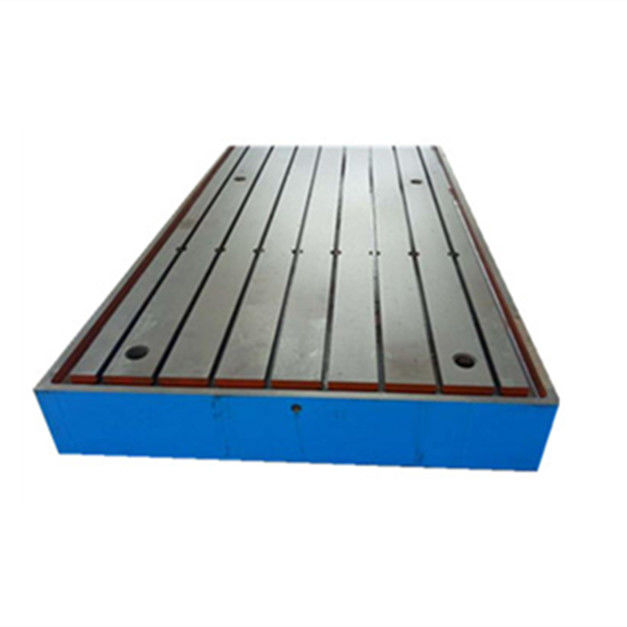

3000 x 6000 mm Cast Iron T Slot Base Plate With Water Channel

The cast iron platform is referred to as the platform, which is also called the cast iron plate. That is the basic plane reference measuring tool for workpiece inspection, scribing, debugging equipment, assembly, welding and riveting. Cast iron platforms are classified into 0, 1, 2 and 3 according to accuracy levels. Generally, Class 0, Class 1, and Class 2 plates are used as flat plates for inspection platforms. Platforms for Class 3 are used for scribing, assembly, welding, and riveting. They are widely used in machinery manufacturing, chemical engineering, hardware, aerospace, petroleum, automobile manufacturing, Instrumentation manufacturing and other industries.

Cast iron platform installation support accessories: platform brackets, adjustment horns, ground anchors, jacks, etc. When installing, it should be adjusted to the level and the load is distributed on each fulcrum. When the ambient temperature is used, vibration should be avoided.

specification(Lx W)mm	precision grade
	0	1	2	3
	flatness tolerance (um)
200X200	3.5	7	14	27
300X200	4	8	15	30
300X300	4	8	15	30
300X400	4	8	16	32
400X400	4.5	8.5	17	34
400X500	4.5	9	18	35
400X600	5	10	19	37
500X500	5	10	19	37
500X600	5	10	19	39
500X800	5.5	11	21	43
600X800	5.5	11	22	44
600X900	6	11.5	23	46
1000X750	6	12.5	25	50
1000X1000	7	13.5	27	54
1000X1200	7	14	29	58
1000X1500	8	16	32	63
1000X2000	9	18.5	37	74
1500X2000	10	20	40	80
1500X2500	11	22.5	45	90
1500X3000	13	25	50	100
2000X2000	11	22	44	88
2000X3000	13	27	53	106
2000X4000	16	32	64	127
2000X5000	19	37	75	150
2000X6000		43	86	172
2000X7000		49	97	194
2000X8000		54.5	109	218
2500X3000		28.5	57	114
2500X4000		33	67	133
2500X5000		39	77	154
2500X6000		44	88	176
2500X7000		50	99	198
2500X8000		55	110	221
3000X3000		30.5	61	122
3000X4000		35	70	140
3000X5000		40	80	160
3000X6000		45	90.5	181
3000X7000		51	101	203
3000X8000		56	112.5	225
4000X4000		39	78	156
4000X5000		43	87	174
4000X6000		48	96.5	193
4000X7000		53	107	213.5
4000X8000		59	117	235

Durable HT250 Surface Plate Calibration Wear Resistance With Water Channel 0
