Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

precision surface plate

surface table calibration

Tempat asal:

CINA

Nama merek:

OEM

Sertifikasi:

CO, FORM-E

Hubungi Kami

Minta Penawaran Harga

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

Detail Produk

Bahan:

HT250

nama:

TEE T SLOT MARKING OUT MEJA BESI COR SLOTTED BED PLAT 3,05 X 2,54 METER

Jenis:

Tipe berongga

Kebosanan:

1 kelas

Ukuran:

sebagai permintaan klien

Permukaan Selesai:

bekas tangan

Menyoroti:

precision surface plate

surface table calibration

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Kemasan rincian

Kayu

Waktu pengiriman

20 hari

Syarat-syarat pembayaran

Western Union, T/T.

Menyediakan kemampuan

10/buland

Produk terkait

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

Dapatkan Harga Terbaik

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

Dapatkan Harga Terbaik

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

Dapatkan Harga Terbaik

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

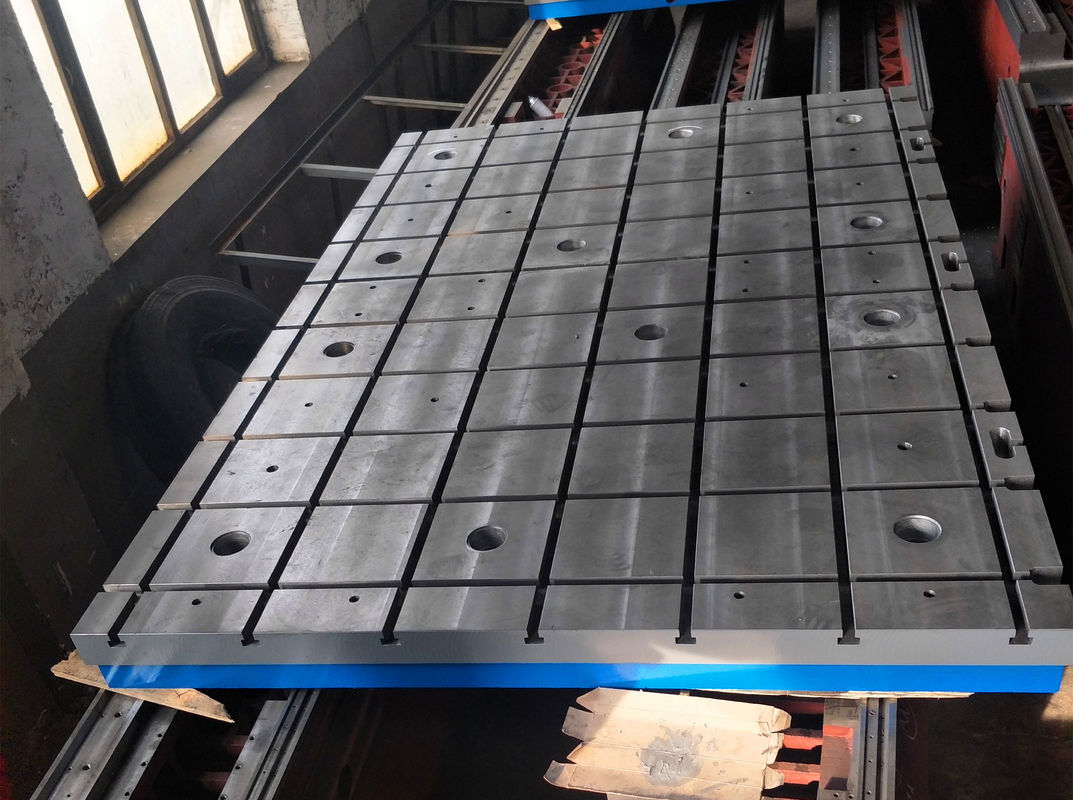

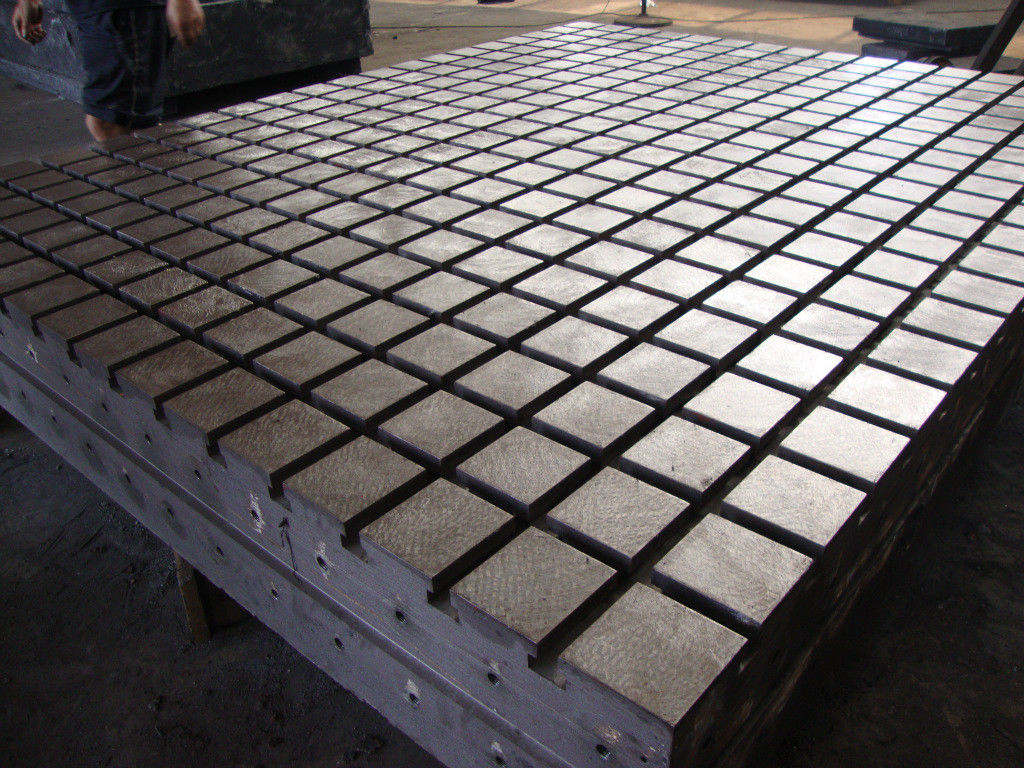

TEE T SLOT MARKING OUT TABLE CAST IRON SLOTTED BED PLATES 3.05 X 2.54 METERS

Application	precision layout, assembly, checking tables, large fixture or machine bases, set-up plates, laboratory test plates, or stable surfaces for optical systems etc.
Field	Machinery, automobile, agricultural machinery, metallurgy, mine, power generation, shipbuilding, aerospace, instrument
Specification	one-piece≤4000-10000mm or CUSTOMIZE
Material	High-strength cast iron (HT200-HT300)
Manufacturing standard	GB4986-85 JB/T7974-1999
Precision grade	0, 1, 2, 3 Grade
Precision standard	JJG117-2005
Surface Treatment	hand scraping finish-milling or ground finish
Manufacturing process	CAD design, Resin sand molding, Melting, Casting, Heat treatment, Mechanical processing, Surface treatment, packaging, and shipment
Hardness	HB170-240
Characteristics	High precision, wear resistance, repeated use, long service life (over 50 years), wide application
Package	Wooden box

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm)	Flatness tolerance (um)
	Grade1	Grade2	Grade 3	Finihs plane
400x400	12	24
600x400	14	28
800x500	16	32	80
900x600	16	32	80
1000x750	18	36	90
1000x1000	20	39	96
1500x1000	25	48	120
2000x1000	26	52	129
2000x1500		56	140
2000x2000		60	152	230
2500x1500		68	168	248
3000x1000			174	248
3000x2000			184	275
3000x3000			210	300
4000x1000			210	300
4000x2000			219	310
4000x3000			240	360
5000x2000			255	375
5000x3000			287	420
6000x2000			293	430
6000x3000			308	460
8000x2000			370	520
8000x3000			382	570

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out 0
