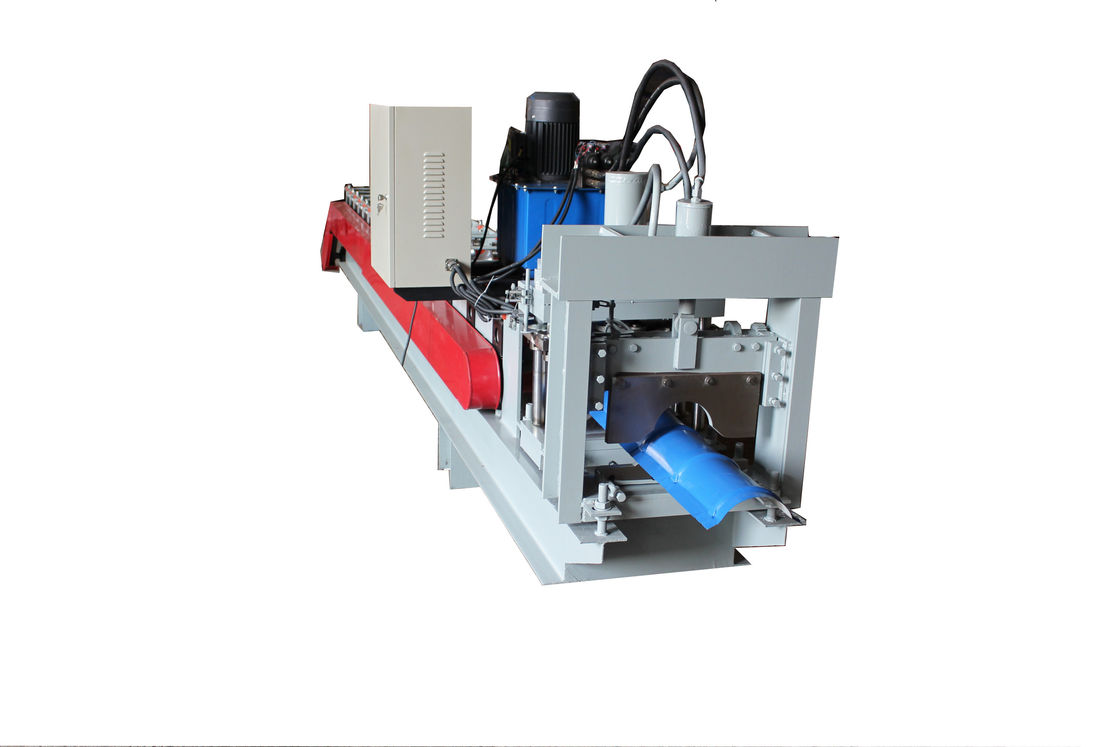

Colored Steel Ridge Cap Roll Forming Machine 14 Rows Roofing Sheet Making Machine

ridge cap roll forming machine

roof tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

312

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Bahan mentah:

PPGI

Ketebalan:

0,3-0,6 mm

Dimensi (P*L*T):

6880*500*1200mm

Nama Produk:

312 Mesin Roll Forming Atap Ridge Cap Baja Berwarna Dengan 14 Baris

Pembentukan kecepatan:

1-3m/mnt

Lebar bahan:

312mm

Menyoroti:

ridge cap roll forming machine

roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

312 Colored Steel Ridge Cap Roof Roll Forming Machine With 14 Rows

Description

The ridge caps made by our Colored Steel Ridge Cap Roof Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc.

Specifications

No
1	Suitable Material	PPGI(235MPA)
2	Width of the raw material	312mm
3	Rows of rollers	14 rows
4	Appearance size	68805001200mm
5	Total power	Main Motor 3 kw + Pump 3kw
6	Thickness of raw material	0.3-0.6mm
7	Productivity	8-12m/min(not including cutting time)
8	Diameter of shaft	￠70mm
9	Voltage	380V 60H 3Phase
10	Big frame	350H steel
11	Middle plate	16mm
