Name: Double Deck Stud And Track Roll Forming Machine High Efficiency 50 M / Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rangka Lunas Ringan Dek Ganda
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Double Deck Stud And Track Roll Forming Machine High Efficiency 50 M / Min

ridge cap roll forming machine

roof tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Rangka Lunas Ringan Dek Ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Double Deck Light Keel Metal Roofing Villa Frame Stud dan Mesin Roll Forming Track

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

30 m/mnt - 50 m/mnt Kecepatan Tinggi

Ketebalan material:

0,3 mm - 0,8 mm

Keuntungan:

Satu Mesin Dapat Menghasilkan Dua Model Berbeda Sekaligus

Berat:

4,5 Ton

Menyoroti:

ridge cap roll forming machine

roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

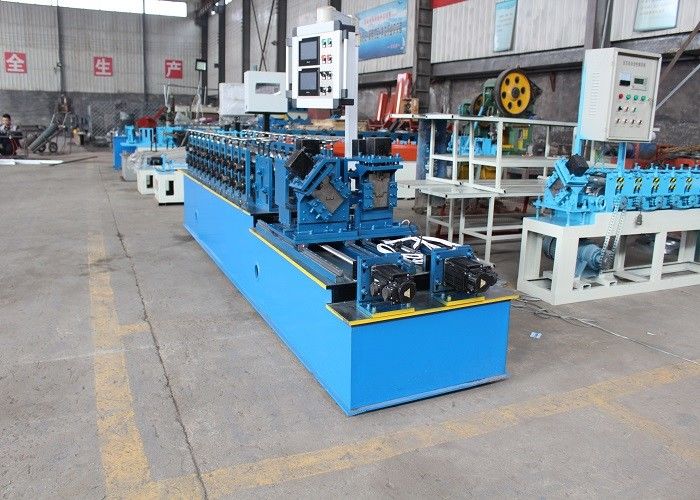

Double Deck Light Keel Metal Roofing Villa Frame Stud and Track Roll Forming Machine

This machine was a new technology in 2019. One machine can produce two different samples at the same time, also with fast speed 50 m/min.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	30-50 m/min
4	Roller Station	Depend one the different samples
5	Dimension (LWH)	4000 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Mitsubishi PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Double Deck Stud And Track Roll Forming Machine High Efficiency 50 M / Min 1
