Name: Light Keel Metal Roof Panel Machine Villa Frame Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Vila Baja Ringan Keel
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

Light Keel Metal Roof Panel Machine Villa Frame Panel Roll Forming Machine

ridge cap roll forming machine

metal stud roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Vila Baja Ringan Keel

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Bahan Rangka Atap Logam Keel Ringan Mesin Stud dan Track Roll Forming

Bahan mentah:

Galvalum, Galvanis

Kecepatan kerja:

30 m/mnt - 50 m/mnt Kecepatan Tinggi

Ketebalan material:

0,8 mm - 1,2 mm

Sistem kontrol komputer:

Vertex BD Australia Presisi Tinggi

Bahan:

G550

Menyoroti:

ridge cap roll forming machine

metal stud roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

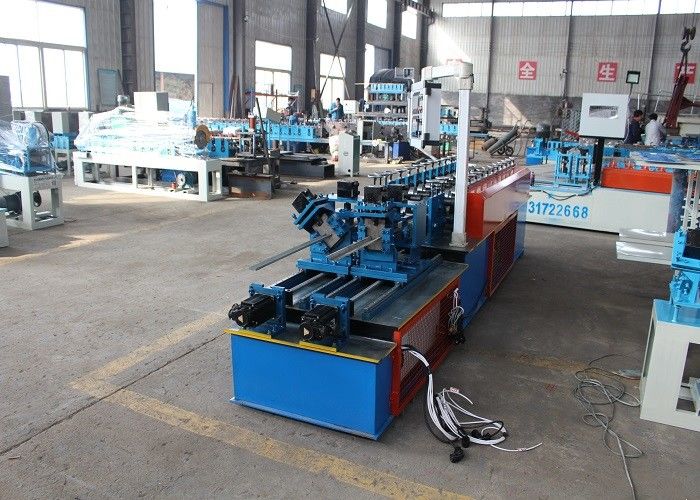

Light Keel Metal Roofing Villa Frame Materials Stud and Track Roll Forming Machine

Profile

Light Keel Metal Roof Panel Machine Villa Frame Panel Roll Forming Machine 0

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized G550
2	Raw Material Thickness	0.8 mm - 1.2 mm
3	Working Speed	30-50 m/min
4	Roller Station	13 Raws
5	Dimension (LWH)	4000 mm800 mm1200 mm
6	Machine Weight	3000 KG
7	Electrical Control System	Mitsubishi PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Light Keel Metal Roof Panel Machine Villa Frame Panel Roll Forming Machine 1
