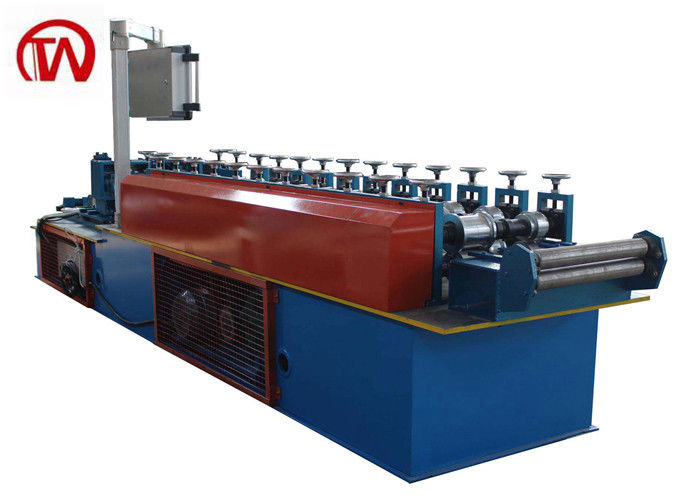

Name: High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Pejantan dan lacak
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Roll Stud And Track >

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

ridge cap roll forming machine

roof tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Pejantan dan lacak

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Bahan Dekoratif Logam Atap Logam Purlin Stud dan Mesin Track Roll Forming

Dimensi (P*L*T):

6500mm*1500mm*1500mm

Berat:

4,5 Ton

Bahan mentah:

Galvalum, Galvanis

Kondisi:

Baru

Kecepatan kerja:

30 m/menit - 50 m/menit

Menyoroti:

ridge cap roll forming machine

roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Dapatkan Harga Terbaik

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Dapatkan Harga Terbaik

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Dapatkan Harga Terbaik

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Metal Decorative Materials Metal Roof Purlin Stud and Track Roll Forming Machine

Profile

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control 0

Also can punch the hole and lettering

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control 1

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	20-30 GA
3	Working Speed	30-50 m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control 2
