Name: Fully Automatic Hydraulic Coil Decoiler High Precision 10 Tons Loading Weight
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 10T- Decoiler Hidraulik Otomatis Dengan Mobil
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Fully Automatic Hydraulic Coil Decoiler High Precision 10 Tons Loading Weight

roll forming machine accessories

roof rolling machine parts

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

10T- Decoiler Hidraulik Otomatis Dengan Mobil

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

10 Ton Aksesori Mesin Roll Forming Hidrolik Coil Decoiler Sepenuhnya Otomatis

Dimensi (P*L*T):

2600 mm*1600 mm* 1750 mm

Berat:

2,5 ton

Kecepatan kerja:

10 m/menit - 30 m/menit

Memuat Berat:

10 ton

Jaminan:

1 tahun

Menyoroti:

roll forming machine accessories

roof rolling machine parts

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

20' FLC

Waktu pengiriman

20 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, L/C, D/A, D/P

Menyediakan kemampuan

100 set per bulan

Produk terkait

Video

Hubungi Sekarang

Deskripsi produk

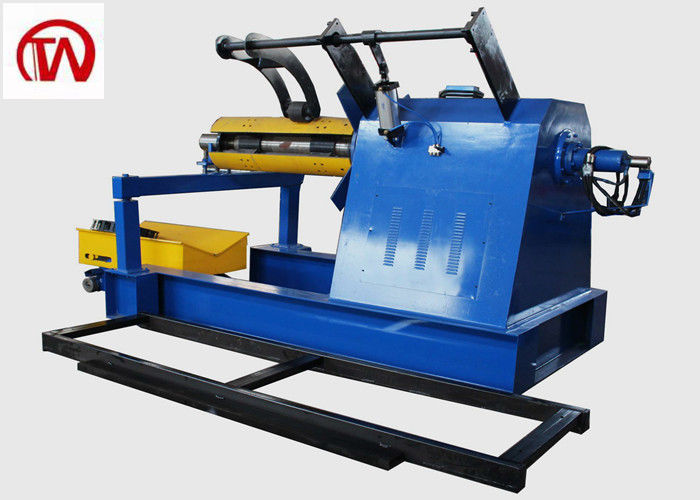

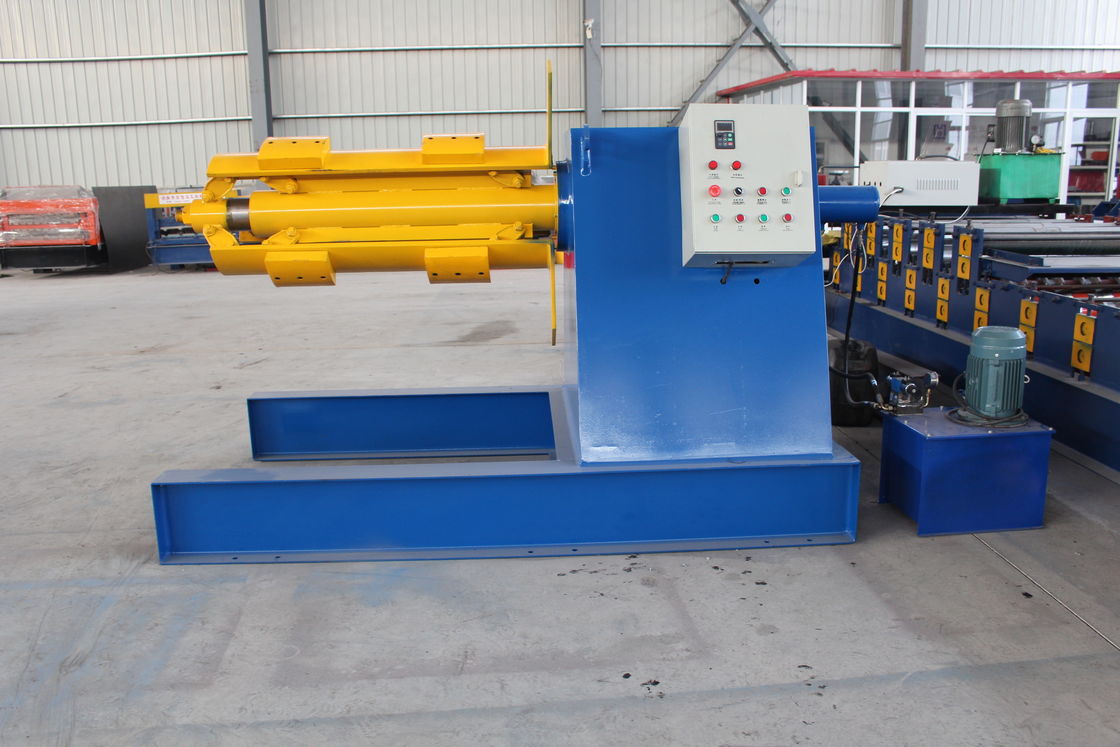

10 Tons Fully Automatic Hydraulic Coil Decoiler Roll Forming Machine Accessories

Specification

10 Tons Fully Automatic Hydraulic Coil Decoiler Parameter

No.	Item	Description
1	Dimension (LWH)	2600 mm1600 mm1750 mm
2	Weight	2.5 Tons
3	Hydraulic Pump	5-way solenoid valve, 3kw, 380 V
4	Motor power	4kw, cycloid reducer
5	Frame	Base with 300H GB I-beam, the box is welded with16mm thick steel plate
6	Main shaft	Thick-walled seamless steel tube, diameter 194*45 mm
7	Feeding width	925 mm-1250 mm(can be customized)
8	Coil inner diameter	470-530 mm,± 2 mm
9	Loading weight	10 tons
10	Hydraulic cylinder	cylinder diameter 125mm, 1 (plus rotation)
11	Computer control system	Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter

10 Tons Fully Automatic Loading Car Parameter

N0.	Item	Description
1	Lifting	Double cylinder, diameter 90mm, stroke 240mm
2	Forward	450 #, hydraulic motor
3	Dimensions(L*W)	1250 Mm*1100 m
4	Car Track	1.05 m 2.5 m (LW)
5	Trip Distance	0.4 m height, 2.5 m length
6	Weight	900 KG
7	Moving Speed	2 m / min
8	Loading weight	10 tons

Advantages

1. The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2. The volume is hydraulically controlled, convenient, fast and stable.

3. Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.

Fully Automatic Hydraulic Coil Decoiler High Precision 10 Tons Loading Weight 0
