Name: Durable Cut To Length And Slitting Line HR CR SS GI Steel Coil Slitting Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 1600
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Potong Memanjang Dan Menggorok Garis >

Durable Cut To Length And Slitting Line HR CR SS GI Steel Coil Slitting Machine

cut to length line machine

coil cut to length line

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

1600

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Menggunakan:

Mengupas

Nama Produk:

Tebal 2mm Lebar 1600mm Garis Pemotong Kumparan Baja HR CR SS GI

Bahan mentah:

Kumparan Baja HR CR SS GI

Ketebalan:

0,4-2mm

Kecepatan menggorok:

20-30m/mnt

Lebar kumparan:

1600MM

Menyoroti:

cut to length line machine

coil cut to length line

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

50 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

2mm Thickness 1600mm Width HR CR SS GI Steel Coil Slitting Line

1. Features:
corresponding width of metal work, and recoil the finished working piece.
It consists of Decoiler Machine, Feeder Machine, Slitting Machine, Scrap Filament Winding Machine, Slurry Guide, Tension Table, Recoiler Machine
etc.
Through change and arrange of the different specification blade spacer This line is a complete equipment for slitting to strip by or moving blade seat, can slit to different width working piece.

Item	Unit	Optional range
Plate thickness	mm	0.3 - 2
Standard width	mm	1600
Uncoiled weight	T	5
Slitting width precision	mm	±0.1-0.3
Max, slitting number	pcs	9
Highest line speed	m/min	20-30
Total power	Kw	40-50kw

2. Process flow
Decoiler Machine---- Feeder Machine ---- Slitting Machine ---- Slurry Guide ---- Tension Table----Recoiler Machine

3. Technical Parameters

A.Decoiler
Tape outer diameter:¢508-¢1600mm
Tape outer width:600-1500m
Shaft diameter:¢180mm
Tight range:¢485mm--¢518mm
Tape Max roll weight:5 T
Working Speed:20-30 m/min
Roller Diameter:¢508mm
Effective length of the roll:1600mm
Center drive motor:5.5 kw
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min

B. Slitting Machine
Cutting Width:max 1600mm
Cutting Thickness:0.3 -- 2mm
Cutter Material:LD+Ni
Motor Power :11kw
Cutter Shaft:¢150mm
Cutter Material:40Cr
Max slitting NO.: 9 pieces
Cutter quantity: 8pieces

C. Tension Table

Manual control, wheel

D. Recoiler
Tape outer diameter:¢508-¢1500mm
Motor Power :15kw
Car Motor Power: 4kw
Roller Diameter:¢508mm
Tape Max roll weight:5T
Main shaft diameter:¢180mm
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min

Machine loading
All machines need one 40ft container to hold.

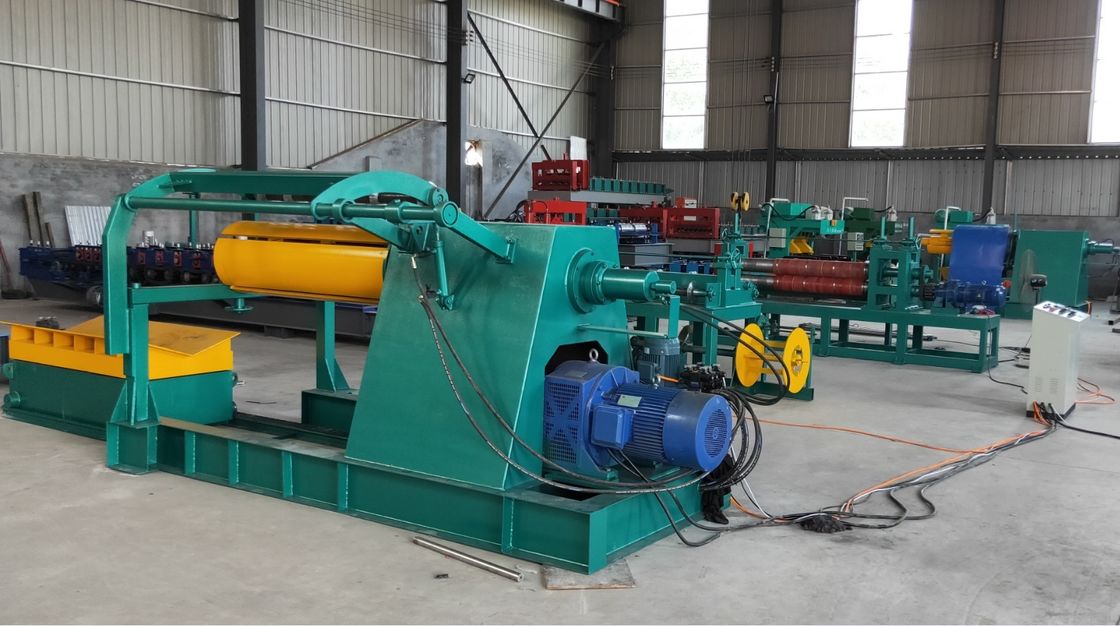

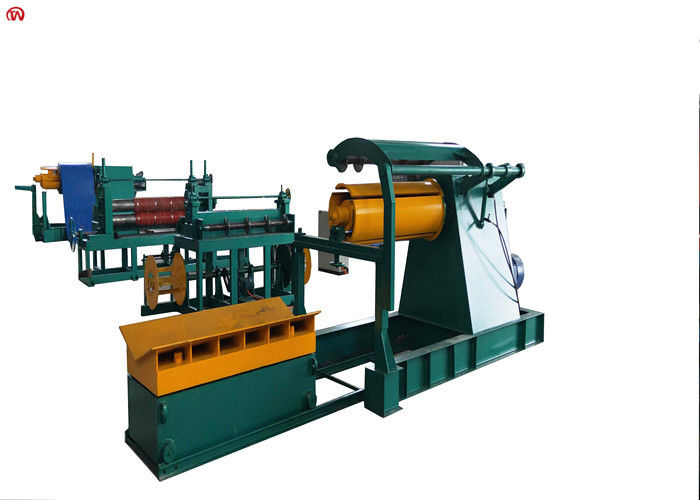

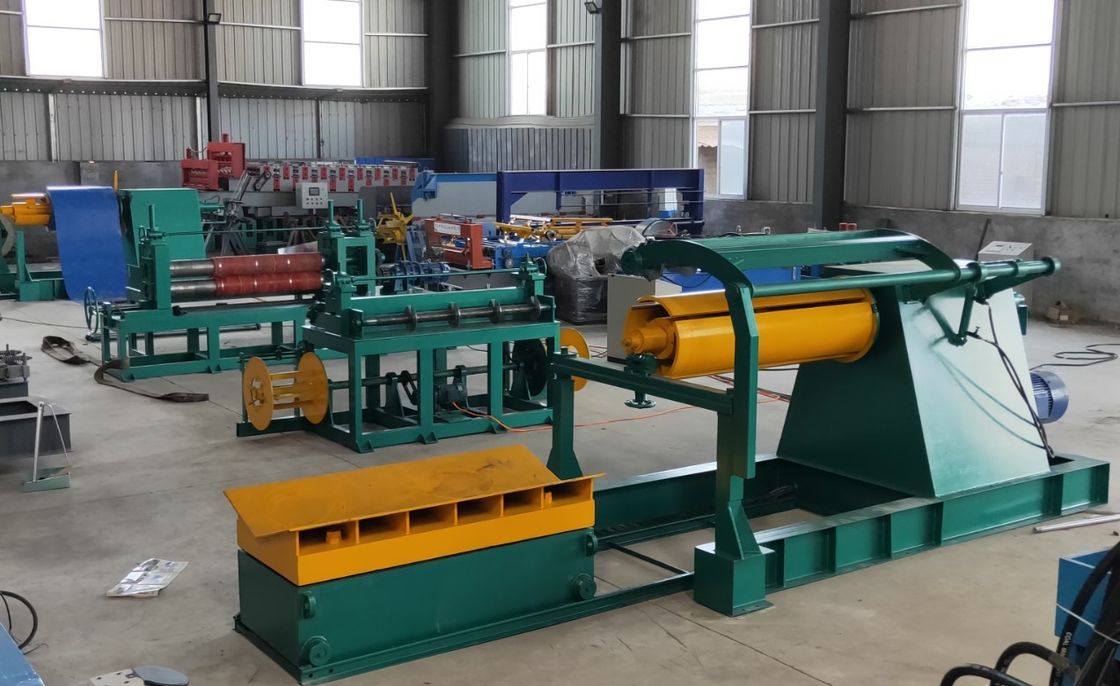

Durable Cut To Length And Slitting Line HR CR SS GI Steel Coil Slitting Machine 0
