Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Tempat asal:

Cina

Nama merek:

FMS

Sertifikasi:

Nomor model:

Mesin Roll Forming Panel Sandwich

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Diameter Poros:

70mm atau sesuai kebutuhan Anda

Bahan poros:

Baja tempa 45# bermutu tinggi

Pisau Pemotong:

Baja cetakan CR12 dengan perawatan yang dipadamkan

Kecepatan Pembentukan:

5-8 m/mnt

Bahan pisau pemotong:

Cr12MOV, Perlakuan Panas

Catu daya:

380V, 3 Fase, 50Hz

Bahan poros:

Baja 45# bermutu tinggi, diameter 70mm

Ketebalan:

0.3-0.8mm

Membentuk langkah:

11 stasiun

Kekuatan:

5,5kW

Lebar Bahan:

1200mm

Menyoroti:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1SET

Harga

negotiable

Kemasan rincian

Telanjang dengan Film Plastik.

Waktu pengiriman

45 hari dunia

Syarat-syarat pembayaran

T/T, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Dapatkan Harga Terbaik

Video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Dapatkan Harga Terbaik

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Dapatkan Harga Terbaik

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

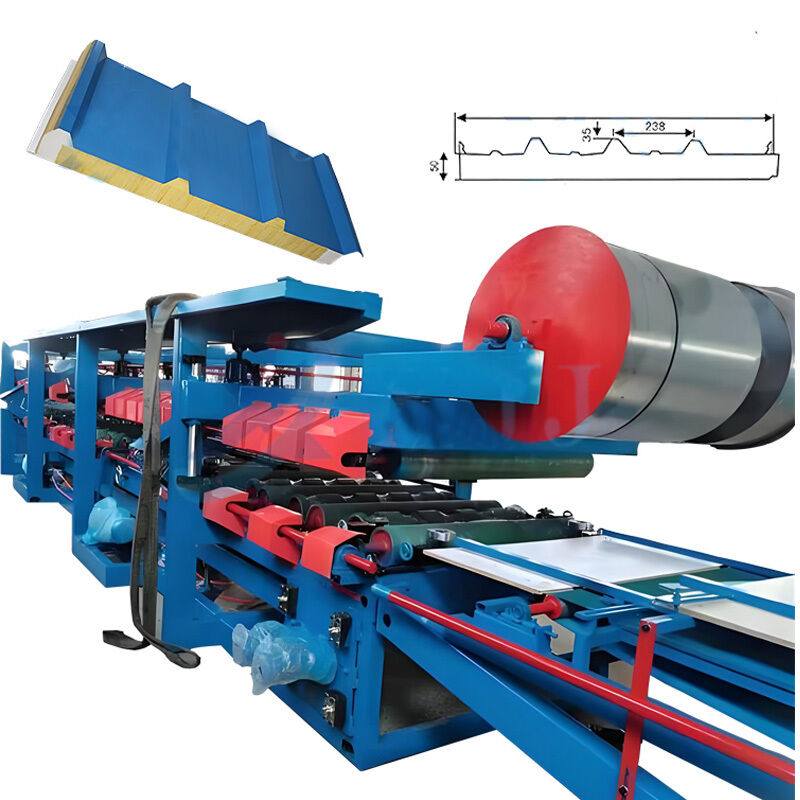

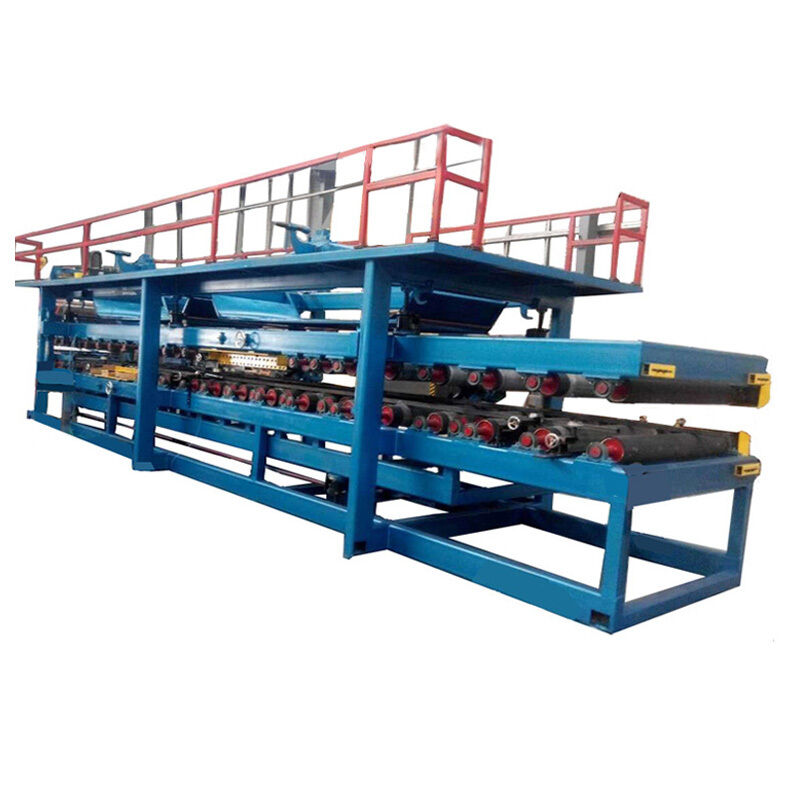

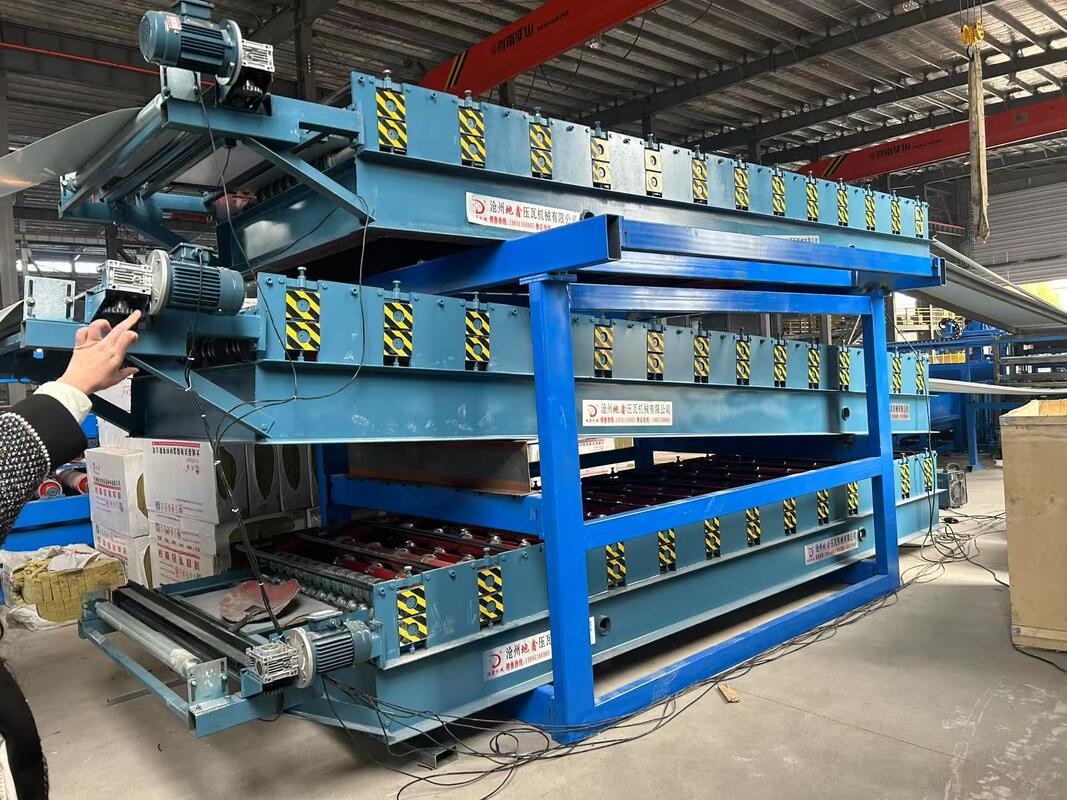

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

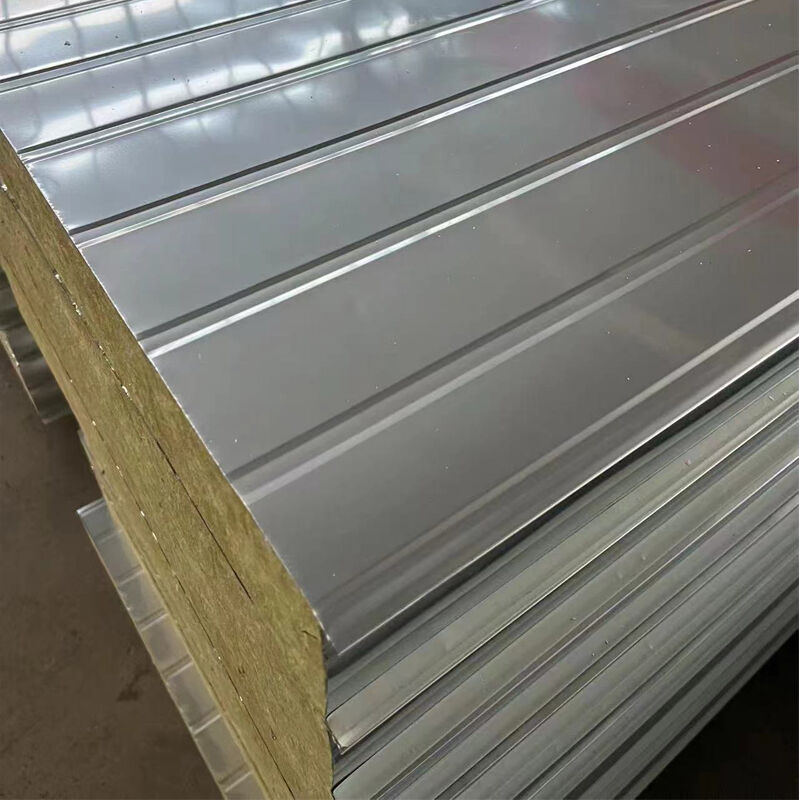

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
