Rumah > Produk > Mesin Membentuk Rol Dek Lantai >
2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine

2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted galvanized steel floor deck machine

floor deck roll forming machine with warranty

2025 steel floor deck forming equipment

Tempat asal:

daratan Tiongkok

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami
Minta Penawaran Harga
2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine
2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine
Detail Produk
Nama Produk:
Produsen Garis Roll Forming Decking Lantai Baja Galvanis
Ukuran:
380v/50hz,3 fase atau sesuai permintaan Anda
Berat:
8000kg
Jenis Pemotongan:
Pemotongan hidrolik
Sistem Pengendalian:
Motor, Pompa, Mesin, PLC
Poin Penjualan Utama:
Umur Panjang
Lebar Makan:
1200mm
Bahan rol:
Baja #45 dengan lapisan krom keras
cara memotong:
Pemotongan hidrolik
Ketipisan bergulir:
0.8-1.5mm
Menyoroti:

prepainted galvanized steel floor deck machine

,

floor deck roll forming machine with warranty

,

2025 steel floor deck forming equipment

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 Set Per Bulan
Produk terkait
Harga bagus 2025 factory price Prepainted Galvanized Steel Floor Deck Roll Forming Machine on line Video

2025 factory price Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine on line Video

2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 high Strenth Steel Floor Deck Roll Forming Machine on line Video

2025 high Strenth Steel Floor Deck Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 1.2mm Profile Pressing Dot Floor Deck Roll Forming Machine on line Video

1.2mm Profile Pressing Dot Floor Deck Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk
2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine
Manufacturer Overview

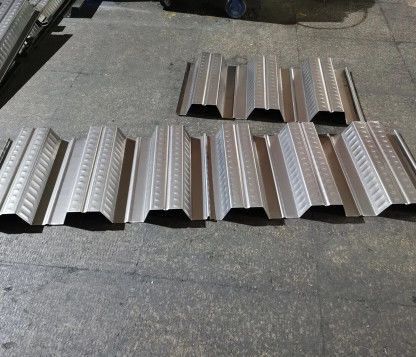

The steel floor deck roll forming machine is designed to produce high-quality steel floor decks, also known as floor bearing steel plates. These decks are used to support concrete or insulating membranes in roof and floor systems, providing a structurally efficient solution with high peak strength and low cost.

Technical Specifications
Suitable Material
Material Width 1000/1250mm
Effective Width 600/850/915 mm
Material Thickness 0.8-1.5mm
Material Type Galvanized Steel Strip, Prepainted Galvanised Steel
Yield Strength 245Mpa
Main Machine Specifications
Shaft Diameter 95mm
Wall Panel Thickness 18mm
Base Specification H446*199
Main Motor 37KW hydraulic system
Forming Speed 0-10m/min
Forming Station 33 Stations
Blade Material Cr12 (Die Steel)
Roller Material 45# steel, CNC lathes, Heat Treated, hard Chrome Coated
Speed Regulation AC Inverter Speed Regulation
Driving Mode Reduction Motor + Chain Transmission
Cutting Mode Hydraulic Type, Post-cutting
Cutting Motor Hydra station/hydraulic motor
Measuring Mode Photoelectric Encoder
Control Mode PLC
Operation Mode Button + Touch Screen
Voltage 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension 15M × 1.5M × 1.3M
Machine Weight 16500KG (15500KG)
Warranty & Guarantee
  • Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts)
  • Repairs will not be performed during the guarantee period in the following circumstances:
    • Damage occurs due to natural disaster
    • Malfunction occurs due to user error
    • Malfunction occurs due to modifications
    • Malfunction occurs due to movement or shipment after installation
Payment Terms
  • 40% in advance as down payment
  • 60% paid before shipment processing
Delivery Information
  • FOB: Tianjin Xingang Port
  • Delivery Time: 30 days after down payment is received
2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine 0
