Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Strut Channel Manufacture Guide Rail Roll Forming Machine

strut channel roll forming machine

guide rail manufacturing equipment

CZ purlin roll forming machine with warranty

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Hubungi Kami

Minta Penawaran Harga

Strut Channel Manufacture Guide Rail Roll Forming Machine

Detail Produk

Jenis ubin:

Mesin Pembentuk Gulungan Rel Pemandu

Menggunakan:

Pintu

bahan botak:

CR12

Daya Stasiun Hidrolik:

5..5 KW

Bahan roller:

GCr15, padam

Sistem pemotongan:

Pemotongan hidrolik

Diameter poros:

φ70mm

Daya Pemotong Hidraulik:

5.5kw

Ketebalan ubin:

0,5-1mm

Kisaran ketebalan material:

sesuai dengan gambar

Ukuran:

6.800*1250*1400mm

Meninju:

Lubang Tunggal dan Lubang Ganda

Beroperasi:

kecerdasan, kontrol mudah, layar sentuh

Menyoroti:

strut channel roll forming machine

guide rail manufacturing equipment

CZ purlin roll forming machine with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1set

Harga

negotiable

Kemasan rincian

Telanjang dengan Film Plastik.

Waktu pengiriman

45 hari dunia

Syarat-syarat pembayaran

T/t, l/c

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Strut Channel Manufacture Guide Rail Roll Forming Machine

Product Description

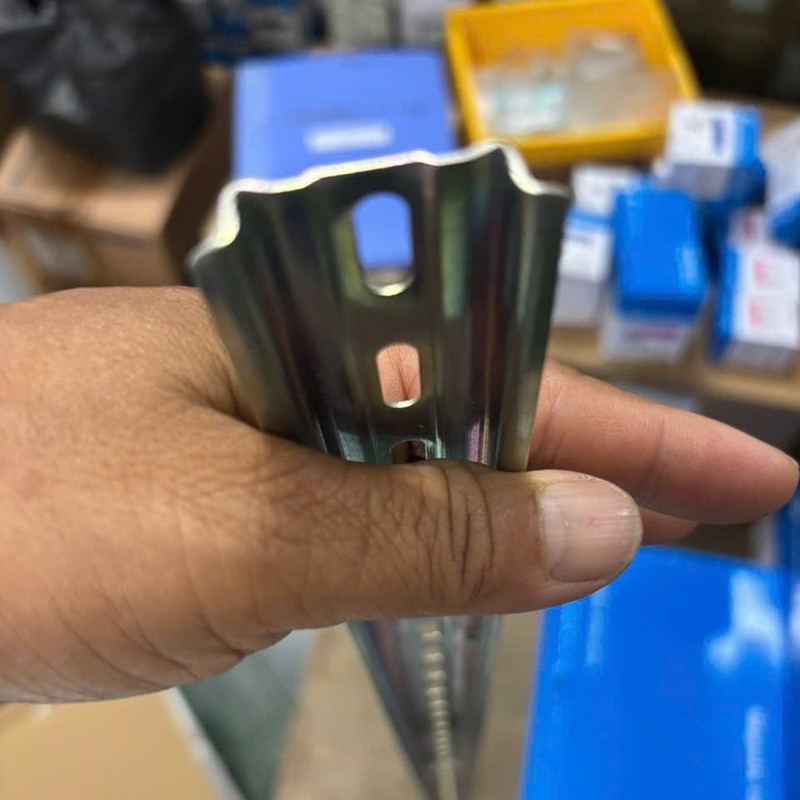

This line is designed to produce various types of hollow elevator guide rails. The elevator guide rail production line has the characteristics of high accuracy and straightness, and our machines can produce different elevator guide rails according to customers' drawings.

Technical Parameters

Parameter	Value
Material	GI
Transmission	1.0 Chain
Control System	PLC
Warranty	1 year
Cutting Tolerance	±2mm
Cutting Type	Hydraulic Cutting
Voltage	380V/50Hz/3Phase
Forming Speed	8-15m/min
Shaft Diameter	70mm
Weight	4500kg

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances:

Damage occurs due to a natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 35 days after the down payment is received.

FAQ

Q: What is the Brand Name of Stud And Track Roll Forming Machine?

A: The Brand Name of Stud And Track Roll Forming Machine is FMS.

Q: What is the Model Number of Stud And Track Roll Forming Machine?

A: The Model Number of Stud And Track Roll Forming Machine is FMS-stud&track.

Q: Where is Stud And Track Roll Forming Machine made?

A: Stud And Track Roll Forming Machine is made in China.

Q: What is the size of Stud And Track Roll Forming Machine?

A: The size of Stud And Track Roll Forming Machine depends on your requirements.

Q: What is the power of Stud And Track Roll Forming Machine?

A: The power of Stud And Track Roll Forming Machine depends on your requirements.
