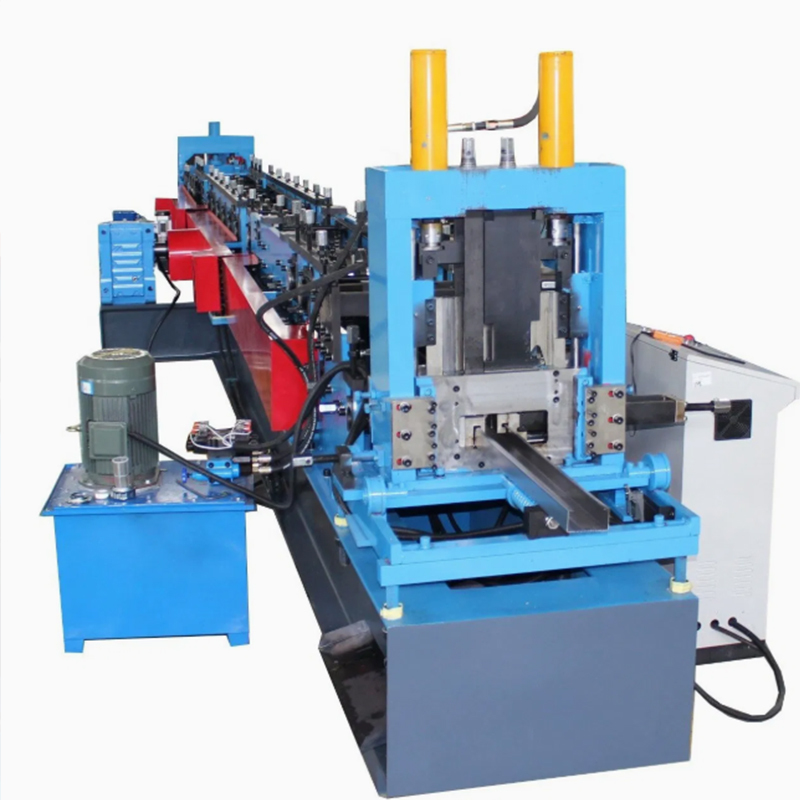

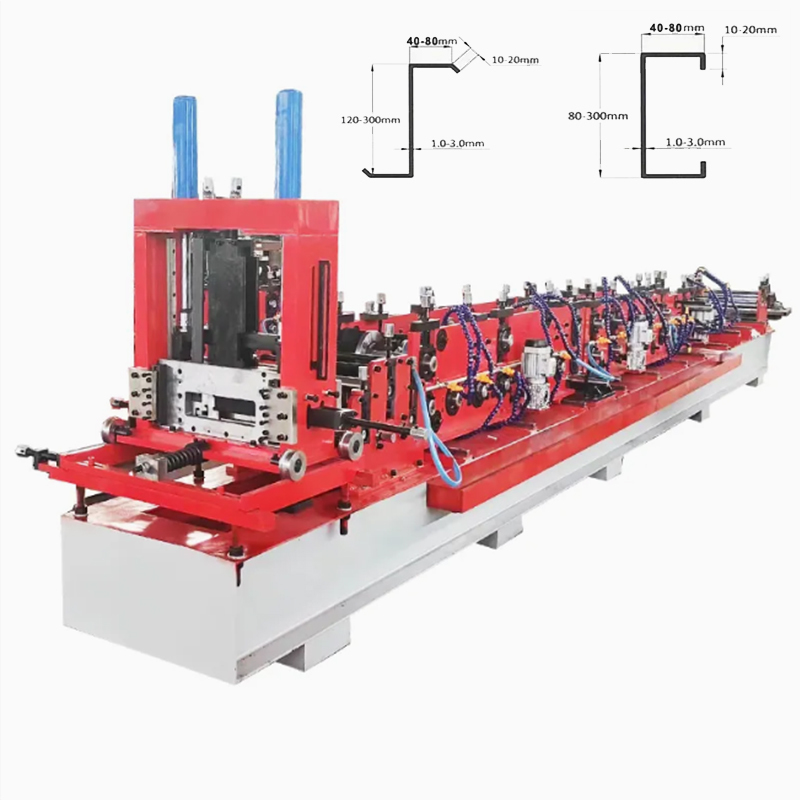

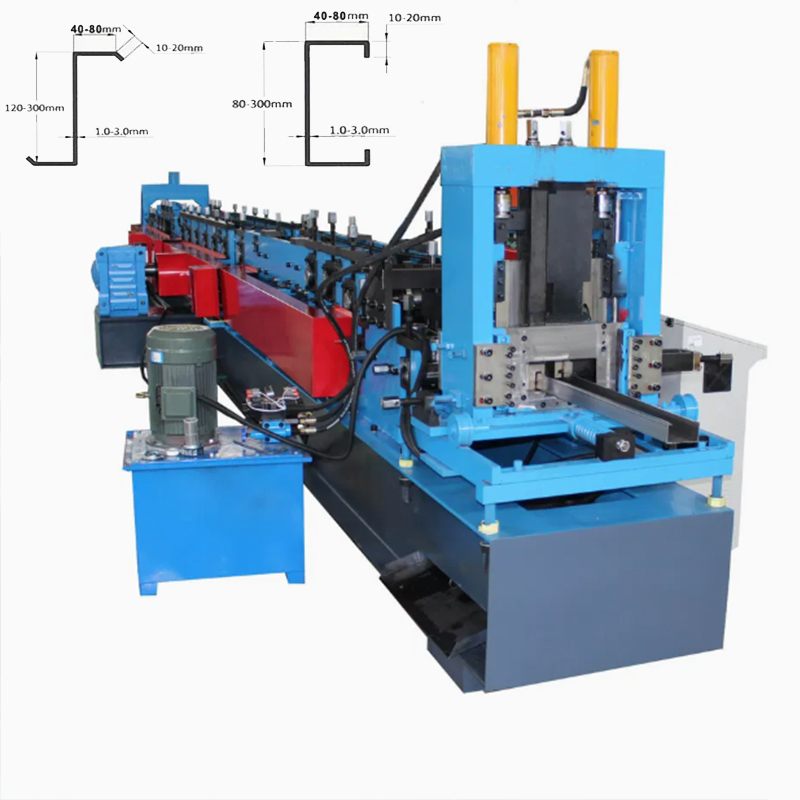

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

2mm C purlin roll forming machine

auto size changeable roll forming machine

steel frame C purlin machine

Tempat asal:

China daratan

Nama merek:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

Sertifikasi:

ISO CE

Nomor model:

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Purlin 2 Mm C yang Dapat Diubah Ukuran Otomatis Untuk Rangka Baja

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

8000 mm*1500 mm* 1500

Ketebalan material:

1-2,2 mm

Berat:

4.8t

Kapasitas Produksi:

10-28m/menit

Voltase:

380V/50Hz/3ph

Tenaga motor utama::

15kw

Menyoroti:

2mm C purlin roll forming machine

auto size changeable roll forming machine

steel frame C purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

PLC control Size Roof structure Purlin Machine CZ Purlin Roll Forming Machine is a special equipment for producing CZ steel (C and Z steel), mainly used in the construction and industrial fields to manufacture roof and wall support structures.

Main Features

High automation: It has automatic feeding, forming, cutting and other functions to improve production efficiency.
High precision: Ensure that the size and shape of the steel meet the design requirements and ensure installation accuracy.
Multi-function: It can produce C and Z steel to meet different needs.
High efficiency: Automated operation greatly shortens the production cycle and reduces labor costs.

Working Principle

Feeding: Metal coils enter the equipment through the feeding device.
Forming: Through multiple rolling processes, the metal material is processed into C or Z shape.
Cutting: Cut the formed material according to the set length.
Output: The finished steel is output for subsequent processing or direct use.

Application Field

Building structure: Used for roof and wall support structure.
Industrial plant: Used for roof and wall support of industrial plant.
Warehousing facilities: Support structures for large warehouses.

Advantages

Reduce costs: Automated production reduces labor and material waste.
Improve quality: High-precision equipment ensures the quality of steel.
Shorten cycle time: Automated processes speed up production.

CZ Purlin forming machines are key equipment in the construction and industrial fields. Through automated and high-precision processing, they meet the manufacturing needs of C- and Z-shaped steels and improve efficiency and quality.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3.5 mm
3	Working Speed	15-20 m/min (not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard
