Name: Automatic Cold Roll Forming Macine For Z/c Purlin
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Mesin C Purlin Otomatis Penuh
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Automatic Cold Roll Forming Macine For Z/c Purlin

automatic cold roll forming machine

Z purlin roll forming machine

C purlin roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin C Purlin Otomatis Penuh

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Logam Otomatis Penuh Bantalan Purlin Kaki C Purlin

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

7000 mm*1500 mm* 1500

Ketebalan material:

1 mm - 3 mm

Berat:

4 ton

Jaminan:

1 tahun

Menyoroti:

automatic cold roll forming machine

Z purlin roll forming machine

C purlin roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/C, T/T, D/A, D/P.

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

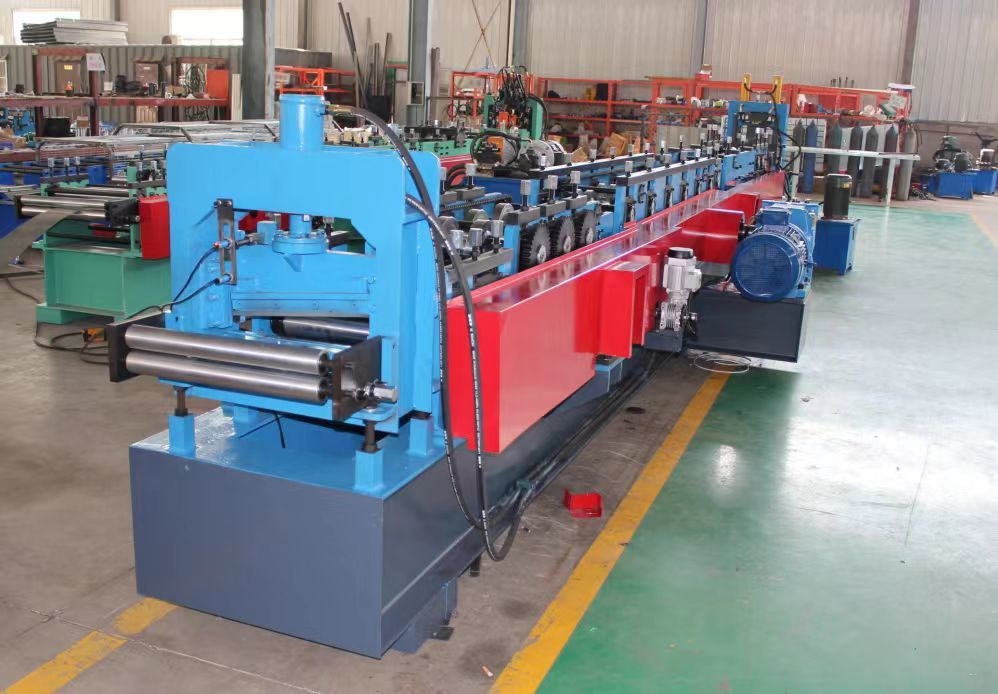

Automatic Cold Roll Forming Macine For Z/c Purlin

This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2 minites can finished the changing size.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	10- 20 m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	8000 mm1000 mm1300 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

C Purlin Size

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

Damage occurs due to a natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
