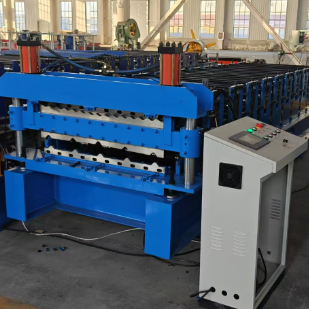

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min

Double Layer Roll Forming Machine 0.3-0.8mm thickness

Double Layer Roll Forming Machine 8-15M/Min speed

Double Layer Roll Forming Machine with warranty

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min
Detail Produk
Deskripsi produk:
Mesin Roll Forming Lembaran Atap Bergelombang Lapisan Ganda Efisiensi Tinggi
Ketebalan:
0.3-0.8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
6500*1200*1500mm
Sistem Pengendalian:
PLC
Kecepatan:
8-15m/mnt
Voltase:
380V 50HZ 3PH
Berat:
3500 kg
Menyoroti:

Double Layer Roll Forming Machine 0.3-0.8mm thickness

,

Double Layer Roll Forming Machine 8-15M/Min speed

,

Double Layer Roll Forming Machine with warranty

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T,L/C,D/A,D/P,T/T
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk
Aluminum Sheet Automatic Double Layer Roll Forming Machine
This high-efficiency machine produces two different aluminum sheet profiles simultaneously with fast operation and superior quality. By combining two production lines into one unit, it saves significant floor space and reduces equipment costs compared to operating separate machines.
Key Features
  • Produces two customized profiles simultaneously
  • Space-saving dual-layer design reduces facility requirements
  • Cost-effective alternative to purchasing two separate machines
  • Customizable for your specific profile requirements
  • Advanced PLC control system for simple operation
Technical Specifications
Parameter Specification
Suitable Material PPGI (235Mpa)
Warranty of Core Components 1 Year
Rows of Rollers 15 rows & 16 rows
Dimension 6500×1200×1500 mm
Cutting Power 3kw
Main Motor Power 3kw
Thickness of Raw Material 0.3-0.8mm
Productivity 8-15m/min
Diameter of Shaft ￠75mm
Voltage 380V 50Hz 3phases
Frame 350H steel
Middle Plate 16mm
Applications
This dual-layer forming machine provides an economical solution for producing multiple aluminum sheet profiles. It combines two production processes into one compact unit, significantly reducing both floor space requirements and equipment costs compared to operating separate single-layer machines. The machine produces sheets with excellent flatness, uniform corrugation, and high material utilization.
Operational Advantages
  • PLC control system for simple, user-friendly operation
  • Advanced automatic control software for superior performance
  • Easy maintenance and mechanical debugging
  • Quick mold replacement capability
  • Produces high-quality sheets with consistent profiles
Double Layer Roll Forming Machine 0.3-0.8mm Thickness 8-15M/Min 0
