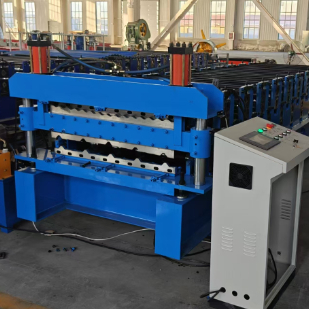

Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

Double Layer Tile Roll Forming Machine

0.3-0.8mm Thickness Roll Forming Machine

12m/min Double Layer Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Lini Produksi Mesin Roll Forming Pembuatan Lembaran Genteng Atap Lapisan Ganda

Kapasitas Produksi:

0-20m/mnt

Nilai jual utama:

Mudah dioperasikan

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Sistem Pengendalian:

PLC

Voltase:

380V 50HZ 3PH

Cutting Blade Material:

Kr 12 Bergerak, Dipadamkan

Ketipisan bergulir:

0.3-0.8mm

Jaminan:

2 Tahun

Menyoroti:

Double Layer Tile Roll Forming Machine

0.3-0.8mm Thickness Roll Forming Machine

12m/min Double Layer Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, l/c

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

High Speed Double Layer Tile Roll Forming Machine

This double layer metal tile/panel roll forming machine can produce two different types of roofing tiles/panels with a single machine. Offering versatility and space efficiency, it's ideal for various construction applications including roofs and walls. Suitable for gyms, warehouses, factories, and other commercial buildings.

Key Features

Produces two different tile/panel types with one machine
Saves space and reduces equipment costs
Wide application in commercial and industrial construction
High production capacity of 12 meters per minute

Technical Specifications

Parameter	Specification
Suitable Material	PPGI (235Mpa)
Roller Material	45# steel plated with chrome
Rows of Rollers	15 rows & 16 rows
Drive Method	Chain drive, Gearbox drive (optional)
Product Automatic Stacker	6m length
Feeding Width	1220mm
Production Capacity	12 m/min
Rolling Thickness	0.3-0.8mm
Shaft Diameter	￠75mm
Voltage	380V 50Hz 3phases
Main Motor Power	5.5kw
Hydraulic Station Power	4kw

Warranty Information

1-year guarantee against manufacturing defects (excluding electrical parts). Warranty does not cover:

Damage from natural disasters
Malfunctions due to user error
Issues caused by modifications
Problems arising from movement after installation

Payment Terms

40% advance payment, 60% balance paid before shipment.

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment.
