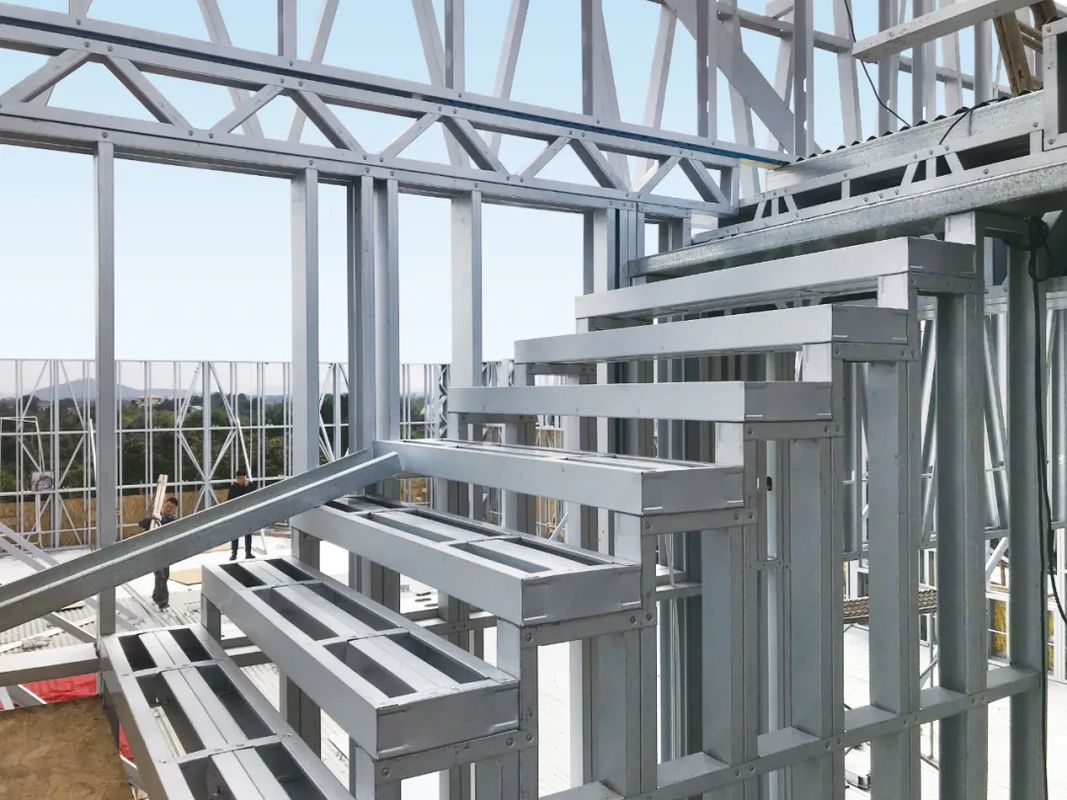

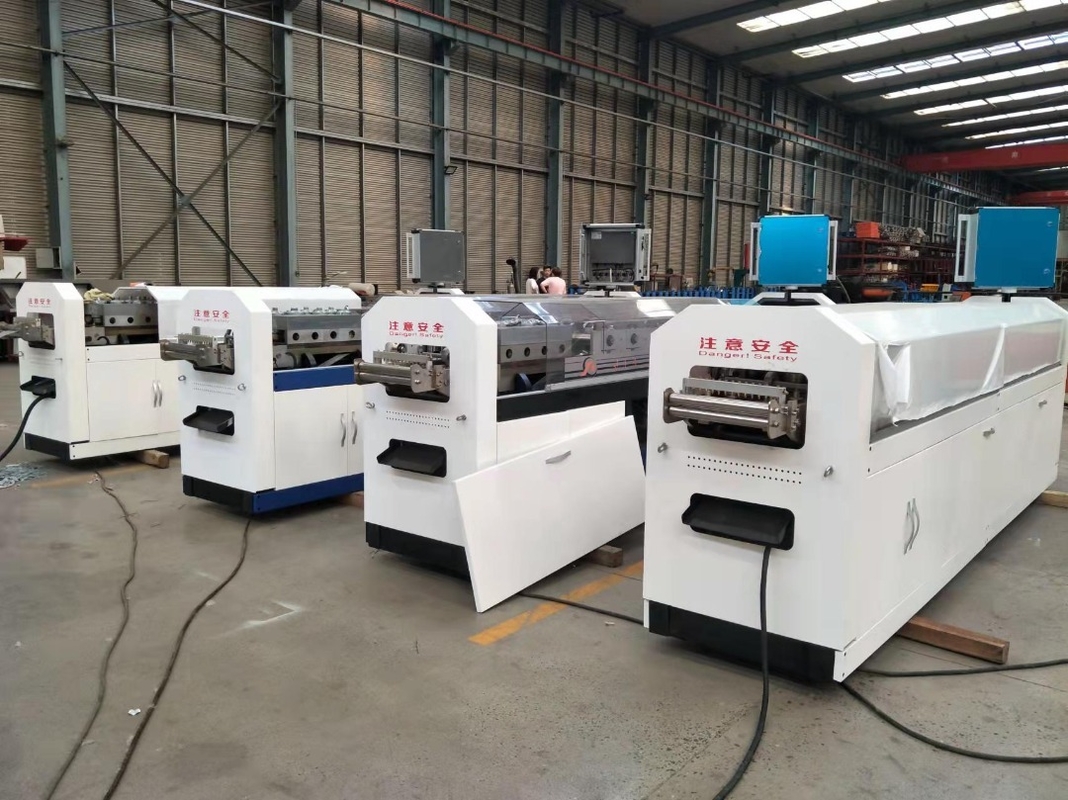

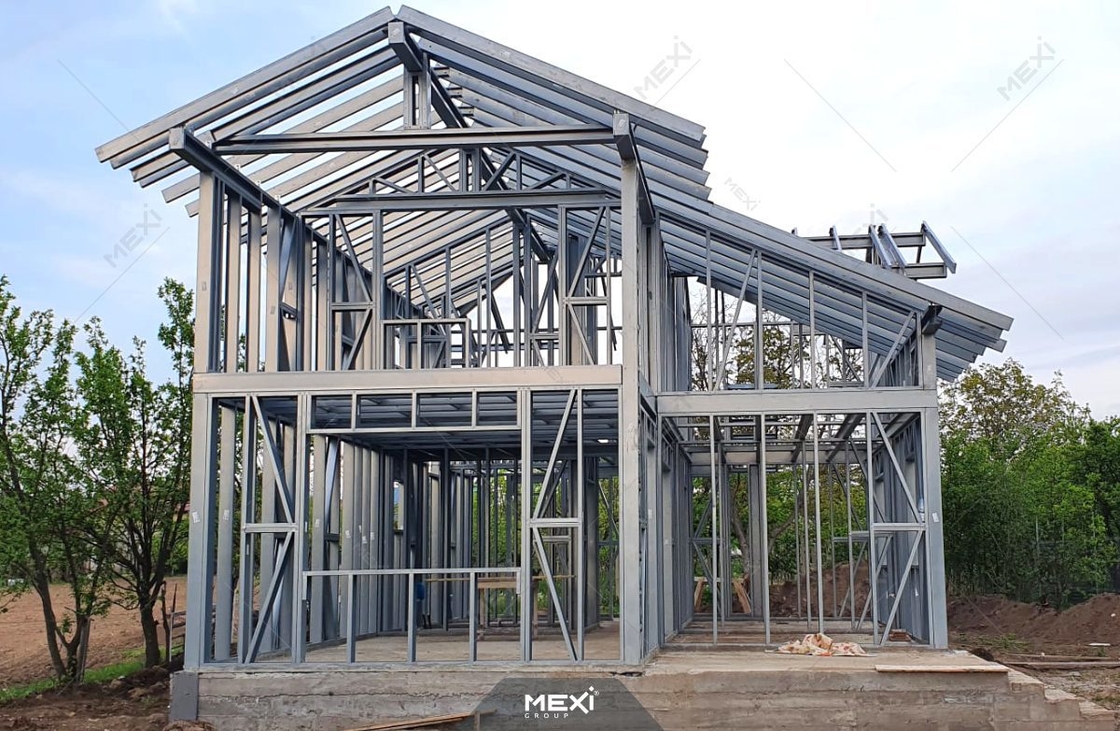

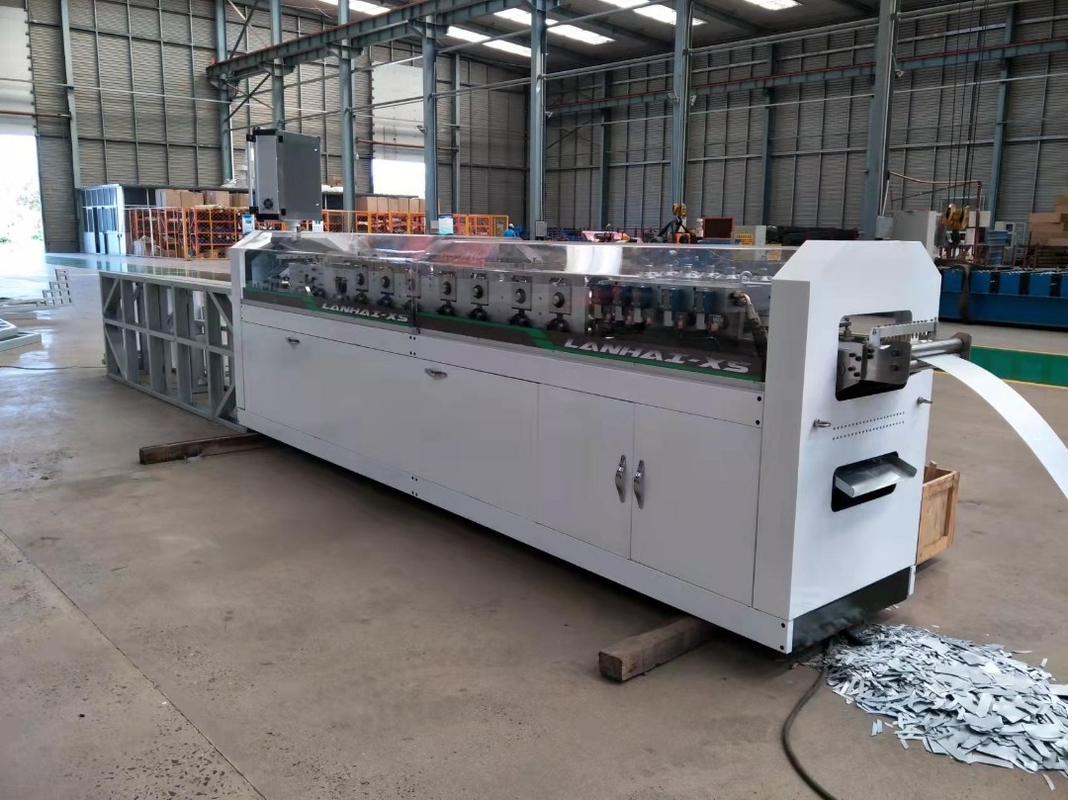

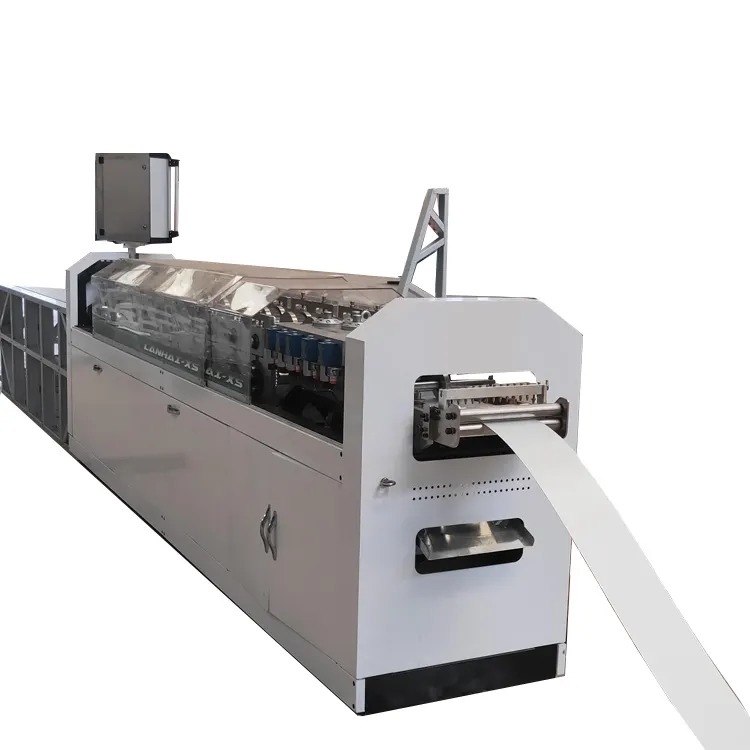

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

• Main roll forming machine size: 4000×800×1200mm
• Main roll forming machine weight: around 3000KGS
• Main servo motor power: 7.5KW with self locking function
• Hydraulic motor power: 5.5KW
• Voltage: 380V/50HZ/3PH
• Forming steps: 12 steps (8 main roller stations, 4 finishing roller stations)
• Forming speed: around 30m/min (depends on the punch quantity and cut length)
• Working capability: 5~8 Tons/8 hours (can work 24 hours)
• Material of roller: imported DC53 steel, CNC Center Machining, heat treatment HRC58-62°, fine grinding
• Material of main shaft: 40Cr steel tempering and fine grinding
• Sprocket wheel: #45 steel high-frequencies quench
• Cut-off system: hydraulic cutting device
• Material of blade: imported tungsten steel with quenched treatment 60-62°C
• Tolerance for cutting and punching: ±0.5mm
• Tolerance for forming: ±0.75mm
• Control system: 19" touch screen and one main control box
• Main electronic parts brand: Mitsubishi PLC from Japan, Schneider Relay from France, Omron Encoder from Japan, INVT Servo Motor from China
• Material for frame of machine: fine welded structural steel
• Painted color: Gray & Blue

• Main Roll Forming Machine
• 3 Tons Manual Un-coiler
  • Function: bearing steel coil, rotating steel coil; with micro-braking device to prevent inertia from running forward during emergency stop
  • Driving method: pulling by the roll forming machine
  • Max Loading Weight: 3 Tons
  • Inner Diameter: Φ430-590mm
  • Outer Diameter: ≤Φ1300mm
• Driving and Hydraulic System
• Equipment Control Software
• Product Software: 1 set
• Automatic Punching Device (Service Hole, Dimple Hole, Lip Cut, Web Notch, Lip Notch, Blot Hole, Shrinking Groove)
• Hydraulic Post-cutting Device (material: SKD-11)
• Automatic Printing Device: print on two height sides symmetrical
• Run Out Table: 4 meters

Vertex BD is the leading software system for cold formed steel. Vertex provides complete architectural design and product information management solutions for commercial and residential building design and manufacturing. Vertex BD is based on a flexible platform to respond to the changing needs of the framing and manufacturing industries.

• Frame structures for walls, floors, and roofs are automatically generated to save your design time
• Real 3D modeling ensures 100% accuracy and reduces design defects
• Automatically generate frame architecture drawings and building elevation drawings
• Generate accurate profile blanking tables and bills of materials to accurately estimate items
• Various CNC output files can be generated to meet production needs
• The powerful and flexible design platform can customize the profile library and frame generation rules according to customer needs
• Compatible with other BIM software through powerful IFC import and export tools
• Vertex engineering analysis function can be used for structural calculation
