Rumah > Produk > Mesin Roll Forming Atap >
2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic

2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic

hydraulic roofing sheet roll forming machine

roofing sheets crimping bending machine

factory price roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Atap Lengkungan Melengkung

Hubungi Kami
Minta Penawaran Harga
2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic
2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic 2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic 2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic 2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic 2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic
Detail Produk
Nama Produk:
Lembaran Atap Arch Camber Mesin Roll Forming Melengkung Hidrolik
Bahan mentah:
PPGL,GL,PPGI,GI,
Dimensi (P*L*T):
2050*1500*1300
Berat:
4ton
Bahan poros:
45# Diameter Luar Baja: 70mm
Lebar makan:
925mm
Sistem Pengendalian:
PLC
Voltase:
220V/380V/440V
Menyoroti:

hydraulic roofing sheet roll forming machine

,

roofing sheets crimping bending machine

,

factory price roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/C, T/T, D/A, D/P.
Menyediakan kemampuan
40 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk
2025 Factory Price for Crimping Bending Roofing Sheets Roll Forming Machine Hydraulic
Product Specifications
Attribute Value
Product Name Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic
Raw Material PPGL, GL, PPGI, GI
Dimension (L*W*H) 2050*1500*1300
Weight 4 Tons
Shaft material 45# Steel Outer Diameter: 70mm
Feeding width 925mm
Control System PLC
Voltage 220V/380V/440V
Product Description

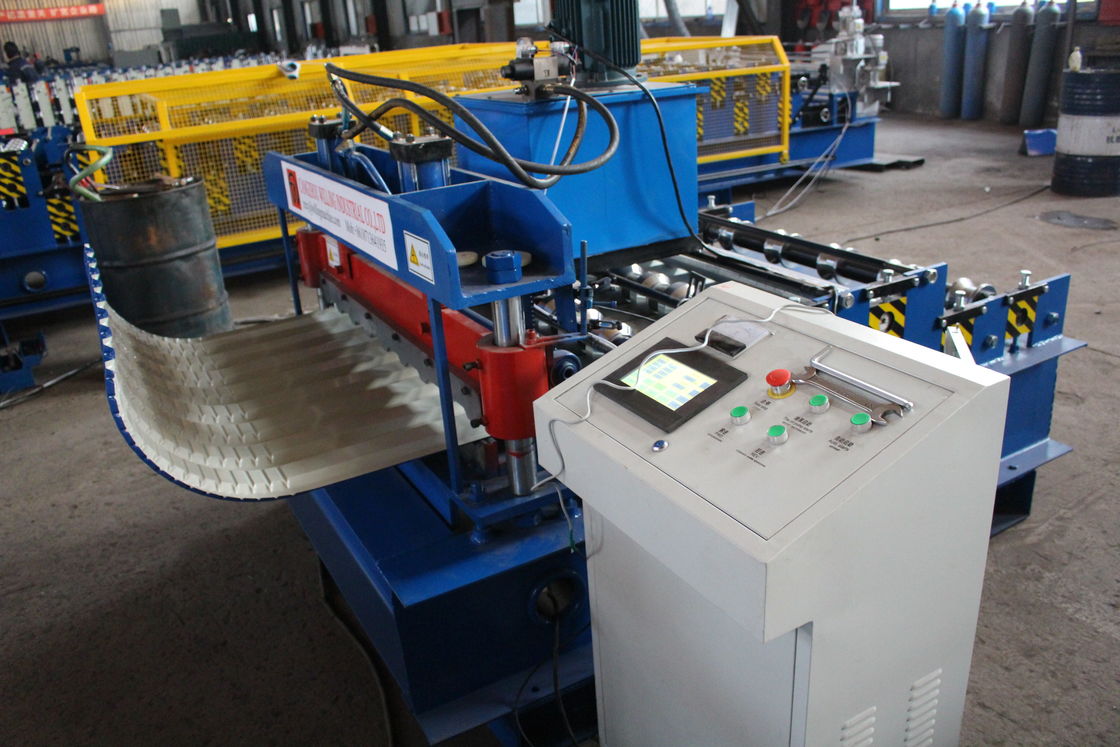

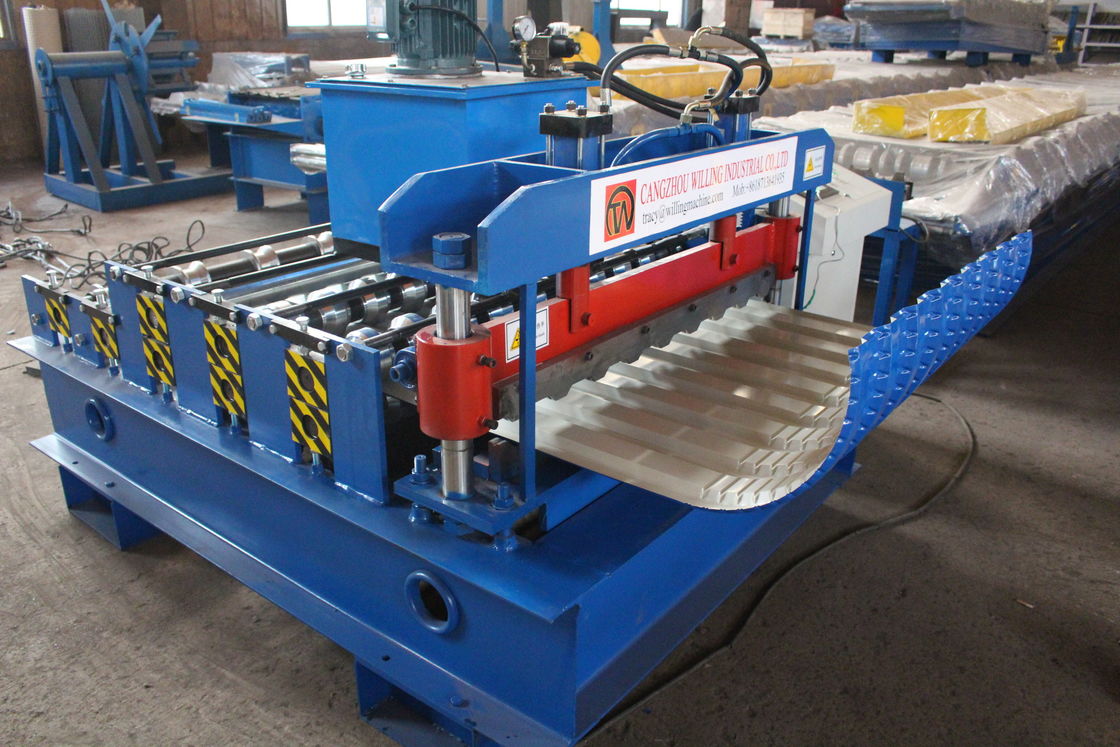

Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic

  • Famous Brand, quality is guaranteed.
  • Full Automatic Computer Control makes operation easy.
  • Machine roller and shaft are produced by exact demands and control. The roller material processing method is by CR12 MOV heat treatment 58℃-62℃. The product quality is durable with long service life.
Technical Specifications
Weight 4 Tons
Frame Material 350H Steel
Side Panel Of Machine 16mm
Color All colors (standard international color) or Customized
Rollers 5 rollers
Roller material 45# steel Cr12 Mov HRC 58-62
Diameter Of The Shaft Φ70mm
Drive Mode Chain Wheel and Cycle Chain Length: 1 Inch
Productivity 10-15m/min
Voltage 380V 50Hz 3phases (Can be customized according to local voltage)
Warranty Information
1. Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (except Electrical parts).
2. Repairs will not be performed even during the guarantee period in the following circumstances:
  • Damage occurs due to a natural disaster
  • Malfunction occurs due to user error
  • Malfunction occurs due to modifications
  • Malfunction occurs due to further movement or shipment after installation
Payment Terms
  • 40% in advance as down payment
  • 60% is paid before the shipment is processed
Delivery Information
  • FOB: Tianjin Xingang Port
  • The Delivery Time: 30 days after the down payment is received
