Rumah > Produk > Mesin pembentuk gulungan pintu rana >
High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW

High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW

High Speed Roll Forming Machine

Salt Profile Roll Forming Machine

4KW Shutter Door Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE

Nomor model:

Mesin pembentuk gulungan pintu rana

Hubungi Kami
Minta Penawaran Harga
High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW
High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW
Detail Produk
Pemotongan:
Pemotongan hidrolik
Cetakan:
CR12
Efisiensi kerja:
8-15m/mnt
Diameter poros:
70mm
Jenis Dekoiler:
Dekoiler Manual
Ketebalan:
0.3-1.2mm
Sistem drive:
Drive rantai
Daya Motor Utama:
4KW
Motor tenaga:
4KW
Baris Rol:
12 baris
Menyoroti:

High Speed Roll Forming Machine

,

Salt Profile Roll Forming Machine

,

4KW Shutter Door Roll Forming Machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1set
Harga
negotiable
Kemasan rincian
Telanjang dengan Film Plastik.
Waktu pengiriman
45 hari dunia
Syarat-syarat pembayaran
T/t, l/c
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

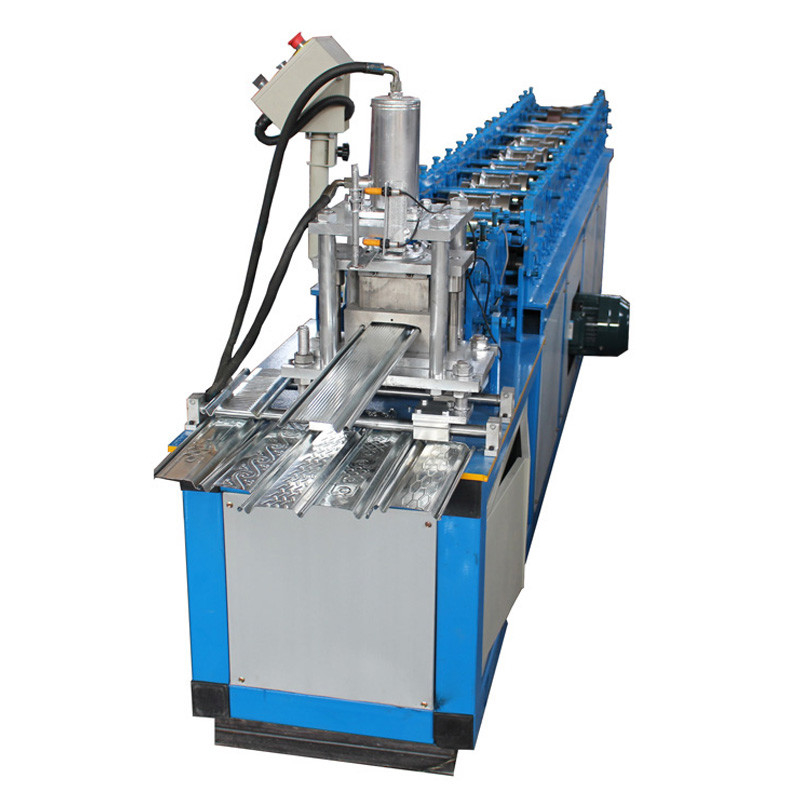

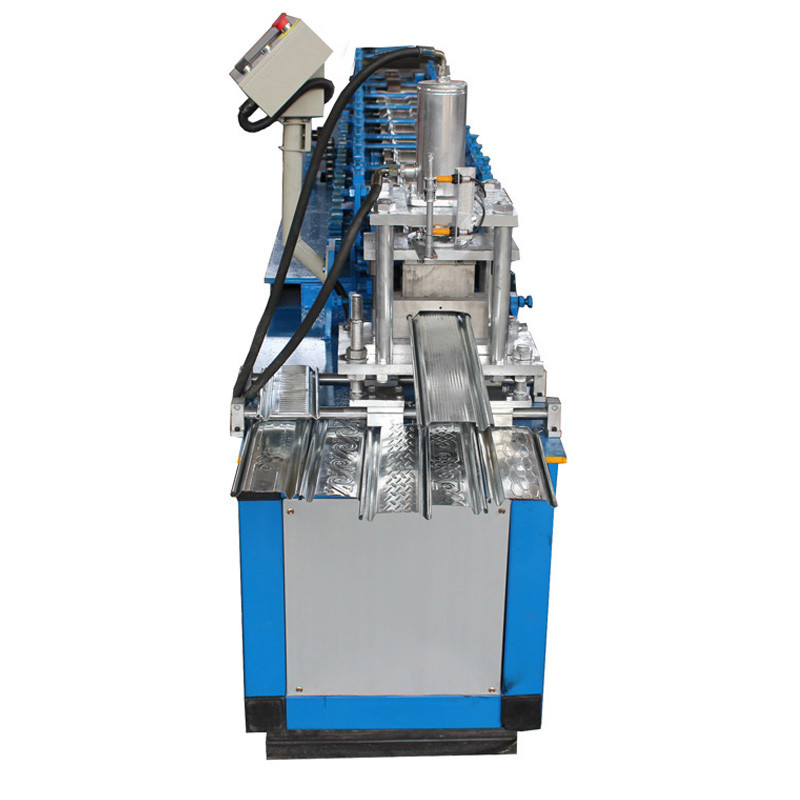

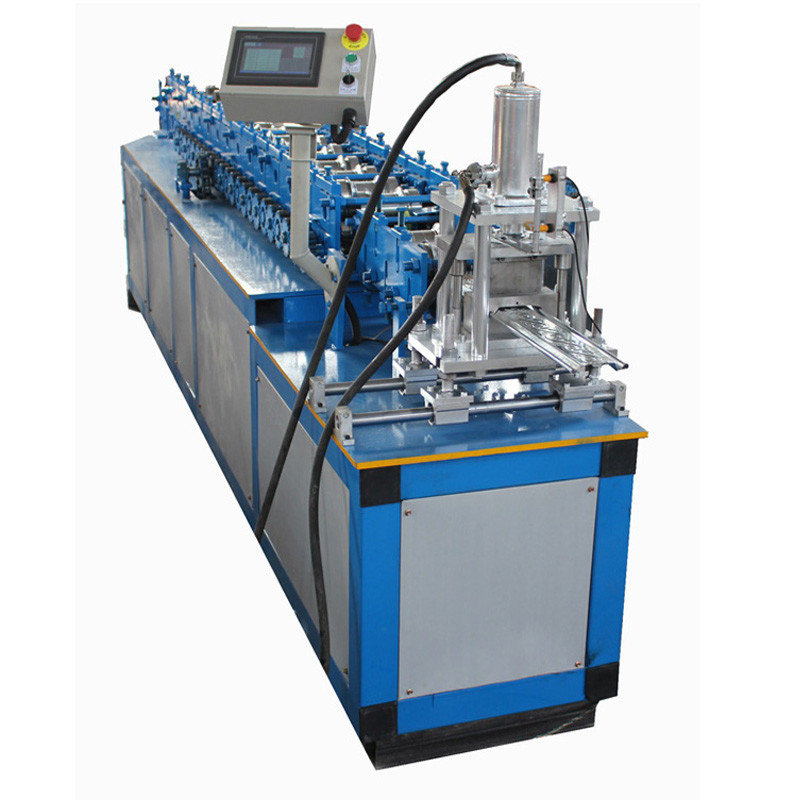

Shutter door Slat roll forming Machine

High Speed Roller Shutter Door salt Profile Roll Forming Machine,it is used for making shutter door panels ,this roll forming machine is widely used in norways ,material thickness is 0.7-1.0mm ,we can customer the designs as your request ,also we can make U guide rail machine ,shutter door bottom rail machine ,don'r hesitate if you have any request .



1.The main parts: roll forming machine; molding press; cutting machine; PLC computer control; hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable.
4. Cutting machine is characterized by stable driving, easy operation.
5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
6. Material: galvanized, colored steel or aluminum coil.
7. We can make and design the kinds of roll forming machines according to customer's requests



Specification



Roller material Cr12 steel
Material Thickness 0.7-1.0 mm
Working Speed 8-15 m/min
Forming motor power 5.5KW
Hydraulic station motor power 4KW
Driving mode 11 inch chains
Diameter of shaft ¢70mm

High Speed Roller Shutter Door Salt Profile Roll Forming Machine 4KW 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40% in advance as down payment

60% is paid before the shipment is processed



Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.


Tag：

Mesin Roller Shutter Otomatis

Mesin Pembentuk Rol Penutup Pintu

mesin pintu rana rol
