Product Description:
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

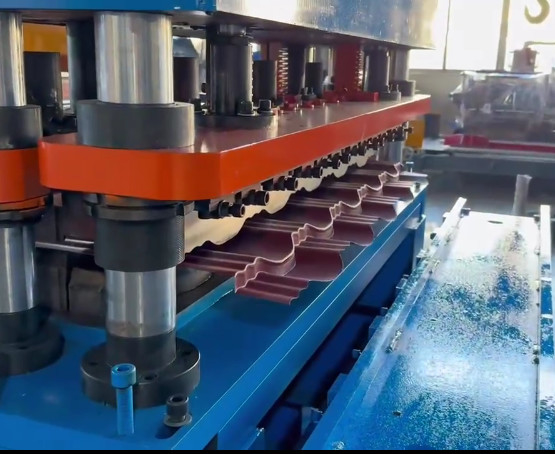

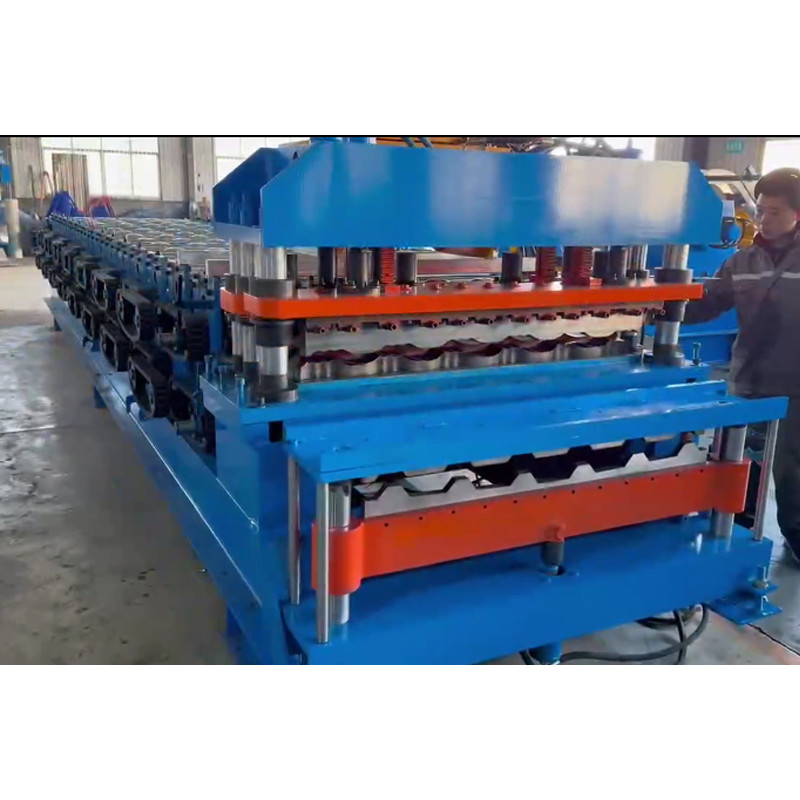

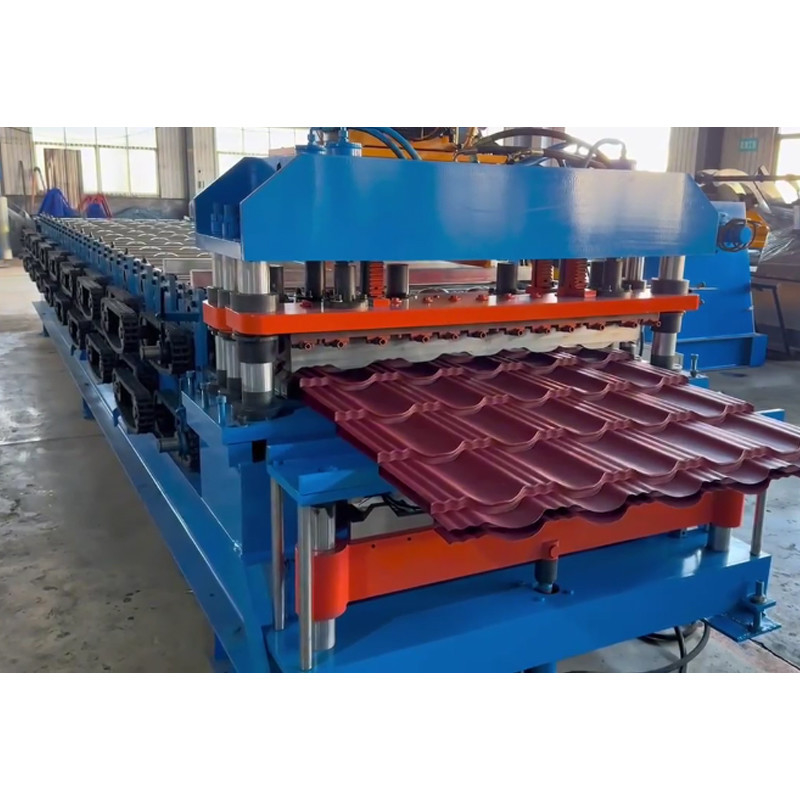

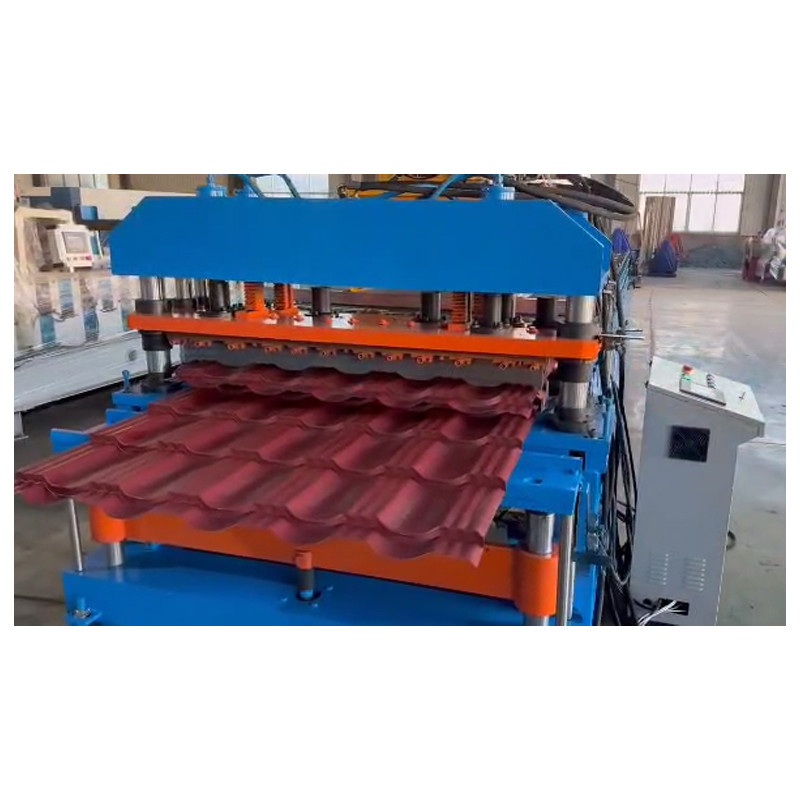

PLC Control Metal Cold Steel Glazed Roof Tile Making Machine Step Tile Roofing Sheet Roll Forming Machine Factory
A. High Precision
B. High Efficiency
C. Customized Service
D. Low Noise
The 3D Cutting Glazed roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world.
We adopt export standard technical solution to make the machine strong and stable enough. Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.
China Factory Directly Roof Sheet Tile Panel Roll Forming Machine is the most popular type of roll forming machines, mainly suitable for PPGI, GI and other harder coils. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.
| Suitable Material |
Colored or galvanized steel coil, |
| Thickness Range |
0.3-0.8 mm |
| Material yield stress |
230 Mpa |
| Roller driven type |
Chain transmission |
| Hydraulic system pressure |
12 Mpa |
| Hydraulic station motor power |
4 Kw |
| Main motor power |
5.5Kw |
| Coil Width Range |
914, 1000, 1220 or 1250 mm.(According to your actual drawing.) |
| Electric Power |
380V, 50 Hz, 3 phase(or according to your need) |
| Dimension |
About 7200*1300*1200mm(L*W*H), as per the drawing |
| Production Capacity |
8-15 m/min
|
| Roller material |
45# steel with chrome treatment |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
