Product Description:

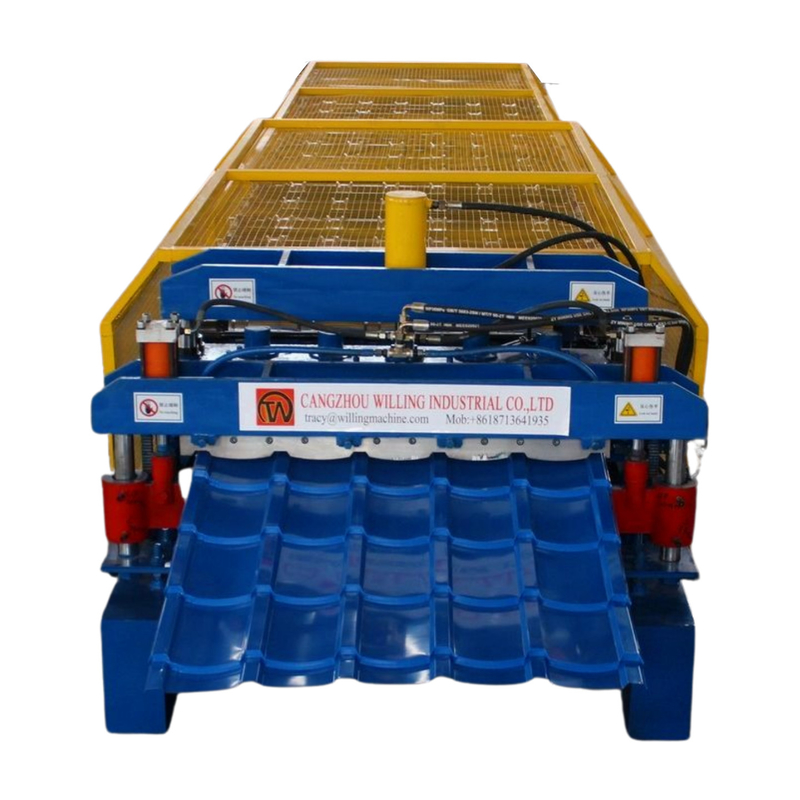

The zinc roof sheet making machine glazed tile roofing sheets manufacturing roll forming machine is composed of discharging, forming and post-forming cutting. The products produced are flat and beautiful in appearance, uniform in paint pattern, high in strength and durable in use. They are widely used in industrial and civil buildings, such as workshops, warehouses, garages, , gymnasiums, exhibition halls, theaters and other room surfaces and walls. Its components include: complete machine, PLC computer control system, hydraulic pump station system, and automatic post-shearing system.
Features: The color steel plate equipment adopts high-level automatic control software to realize production information management. The automation control system of the whole unit adopts a highly integrated network, which makes the performance of the automation system more superior. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.
Technical Parameters:
| Technical Parameter |
Description |
| Name |
Roof Roll Forming Machine |
| Power |
5.5kw |
| Thickness |
0.3-0.8mm |
| Material |
Pre-painted Steel Coil, Galvanized Steel Coil, Galvalume Steel Coil |
| Warranty |
1 Year |
| Speed |
10-15m/min |
| Cutting |
Hydraulic |
| Weight |
3T |
| Rollers |
17 stations |
| Control |
PLC |
Equipment Detailed Parameters:
|
Base material
|
GI/GL,PPGI/PPGL,Aluminum coil
|
|
Thickness
|
0.3mm-0.7mm
|
|
Effective Width
|
1000mm (according to your need)
|
|
Roller material
|
45# steel
|
|
Color
|
All colors (standard international color)or customers samples’ color
|
|
Brand
|
FMS
|
|
Control System
|
Famous Brand PLC
|
|
Power
|
5.5KW
|
|
Frame
|
350Hsteel
|
|
Cutting drive
|
Hydraulic drive,electric motor
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Advantage
Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.
Double layer roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.
Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.
In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
